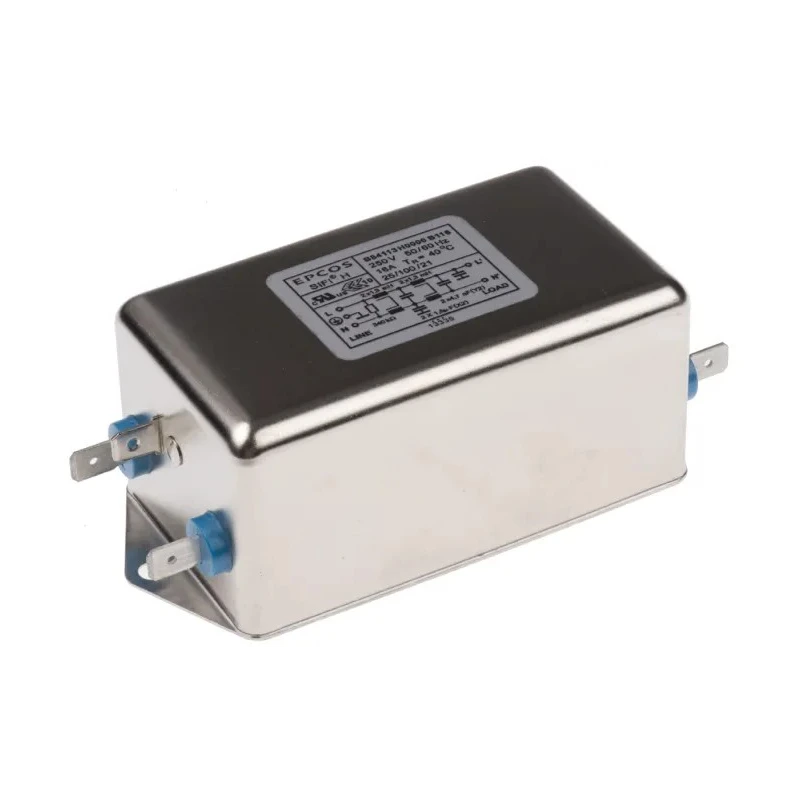

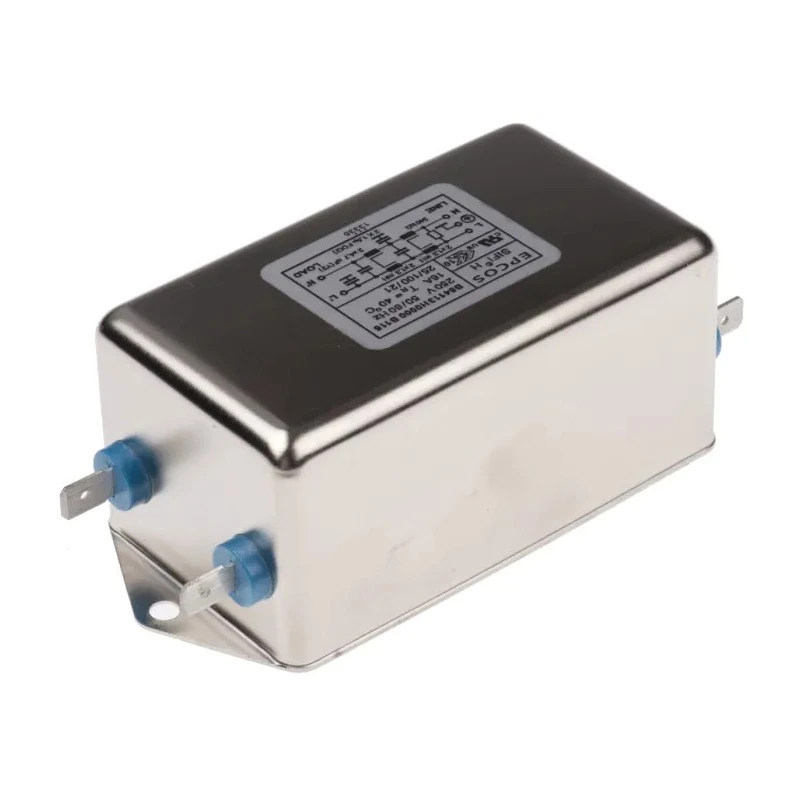

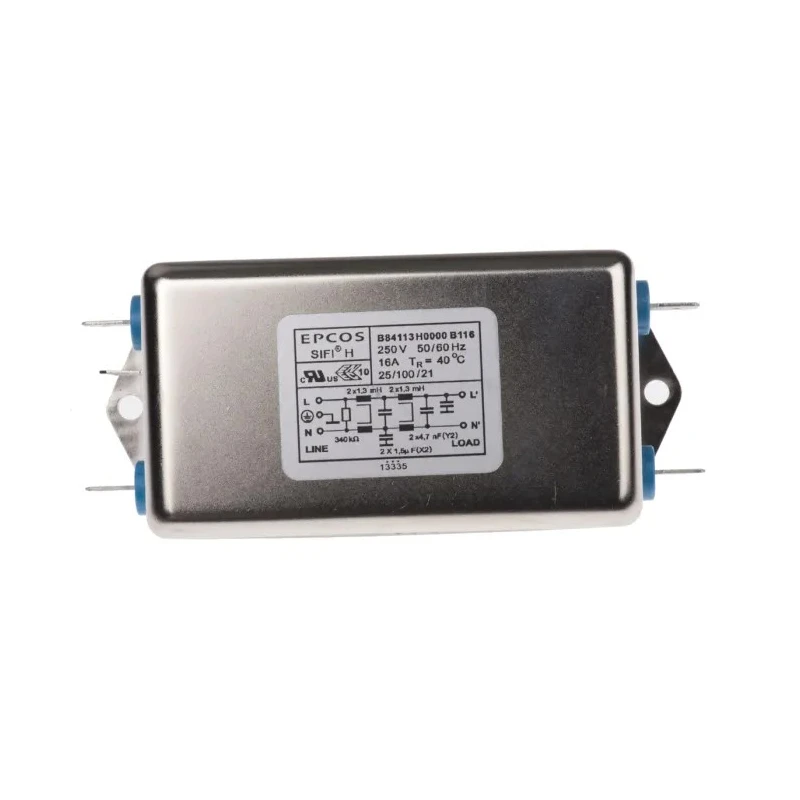

TDK Chassis Mount EMC Filter 16 A 250V AC/DC 50Hz 60Hz Tab Termination 1 Phase B84113H0000B116

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Filter 16 A 250V AC/DC 50Hz 60Hz Tab Termination 1 Phase B84113H0000B116



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	43mm
Length	52mm
Model	B84113H0000B116
Depth	117.5mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84113H
Maximum Operating Temperature	100°C
Number Of Stages	2
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	4mH
Standards/Approvals	UL 1283
Termination Style	Tab

Key Features

Designed for chassis mounting with tab termination style for easy installation.
Operates efficiently at 50Hz and 60Hz frequencies with low leakage current of 369μA.
Features a capacitance of 2pF and inductance of 4mH for effective noise suppression.
Constructed with polyurethane potting rated UL 94 V-0 for enhanced safety and durability.
Suitable for use in switched mode power supplies for telecom and data systems.
Meets UL 1283 standards and is approved by ENEC10, UL, and cUL.
Designed for operating temperatures from -25°C to 100°C ensuring reliable performance.

Product Description

The TDK B84113H0000B116 EMC filter is a specialized chassis mount single-phase power line filter designed to provide effective electromagnetic interference (EMI) suppression in electronic equipment. It supports a maximum current of 16 A and voltage ratings up to 250V AC/DC, making it ideal for use in demanding environments such as switched mode power supplies in telecommunications and data systems.

This filter operates efficiently at both 50Hz and 60Hz frequencies, featuring low leakage current of only 369μA, which minimizes power loss and enhances overall device reliability. Its electrical characteristics include a capacitance of 2pF and inductance of 4mH, which work together to provide high insertion loss and effective noise reduction.

The product design incorporates polyurethane potting material compliant with UL 94 V-0 flammability rating, ensuring robust mechanical protection and safety. Dimensions are compact - 52mm length, 117.5mm depth, and 43mm height - to facilitate easy integration into chassis and equipment bays. The termination style utilizes tab connectors, suitable for straightforward, secure electrical connections.

This EMC filter complies with UL 1283 safety standards and has approvals including ENEC10, UL, and cUL, confirming adherence to international quality and safety benchmarks. It is constructed to operate reliably in a temperature range from -25°C up to 100°C, accommodating diverse industrial and commercial environments.

Chassis mount design for secure installation. 16 A current and 250V AC/DC voltage capacity. Low leakage current of 369μA for energy efficiency. Polyurethane potting ensures UL 94 V-0 safety compliance. Compact dimensions suitable for various electronic assemblies.

Operating temperature range from -25°C to 100°C. Certified to UL 1283 and approved by ENEC10, UL, and cUL.

This EMC Filter is suitable for industrial, telecommunications, and electronic manufacturing applications. It helps ensure compliance with EMC regulations and improves product reliability by suppressing conducted and radiated emissions. Browse EnvMart’s extensive offering of electronic components and power line filters for further solutions.
