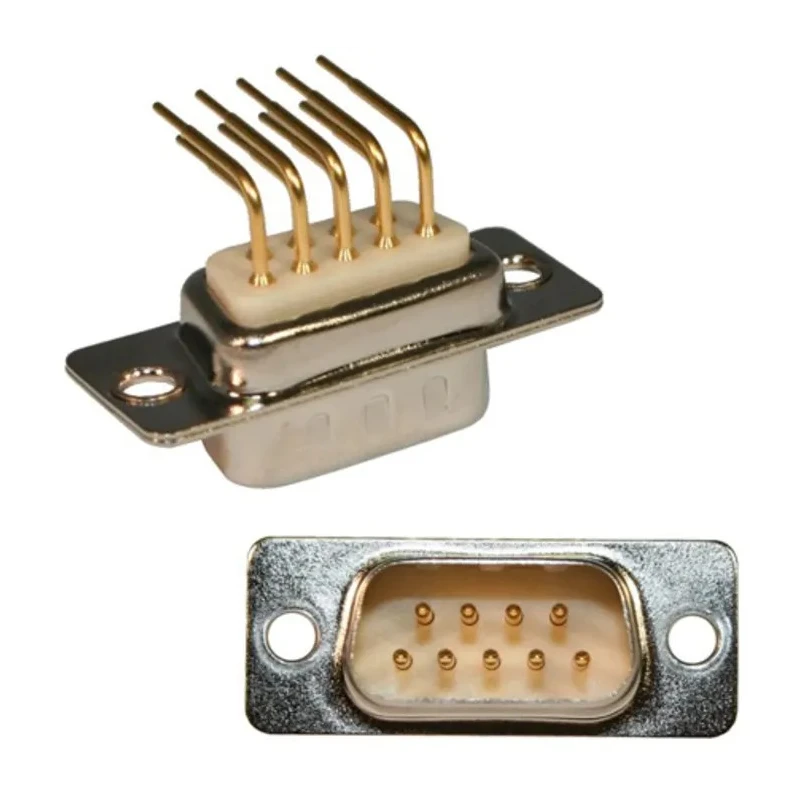

Norcomp SEAL-D 9 Way Right Angle 2.769 mm Pitch D-Sub Connector Male 773-E09-113R001

The Norcomp 773-E09-113R001 SEAL-D 9 Way Right Angle 2.769 mm Pitch D-Sub Connector Male is a high-quality electronic connector intended for robust and reliable applications. This connector features a standard density configuration with 9 contacts, compatible with IEC-529-IP67 sealing requirements.

The SEAL-D series connectors integrate advanced sealing technology that preserves the standard D-sub connector footprint. This design allows for seamless replacement or upgrades of existing D-sub connectors in devices without redesigning enclosures or printed circuit boards, especially useful in environments requiring IP66 or IP67 level ingress protection.

The connector incorporates nickel-plated steel housing for robust shielding and grounding, including ground indents to enhance electrical performance and secure retention. Contacts are made of brass and plated with gold to ensure dependable conductivity and corrosion resistance.

Electrical ratings include a 5 Amp current capacity and a voltage rating of 500 Volts, making it suitable for a wide range of industrial and electronic applications. The connector’s operating temperature range of -50°C to 100°C ensures reliable use in extreme environmental conditions.

This right angle male connector is excellent for outdoor and portable applications such as hand-held computers, industrial and medical equipment, remote sensors, data loggers, and boating electronics. Its sealed design offers protection against dust, water ingress, and temporary submersion, ensuring longevity in harsh conditions.

A variety of mounting options are supported within the SEAL-D 772, 773, and 774 series, including cable mount and vertical PCB mount variants, with footprints ranging in size while maintaining standard pitch and sealing features. Panel sealing kits are available separately to complement installation requirements.

Features sealing technology maintaining standard D-sub physical profile for easy upgrades. Equipped with 9 male contacts, gold plated brass material for enhanced conductivity. Nickel plated steel shell offers improved shielding and grounding through ground indents.

Supports 5 Amp current and 500 Volt voltage rating for demanding applications. Suitable for operating temperature range from -50°C to 100°C ensuring durability in harsh environments. Ideal for use in outdoor industrial equipment, medical devices, sensors, and portable electronics.

The right angle orientation facilitates compact PCB mounting and cable management. IP67 sealed connector meets IEC-529-IP67 standards for protection against dust and water submersion. Explore Norcomp's range of D-Sub Connectors on EnvMart for reliable electronic connections suitable for industrial, laboratory, manufacturing, and commercial applications.
