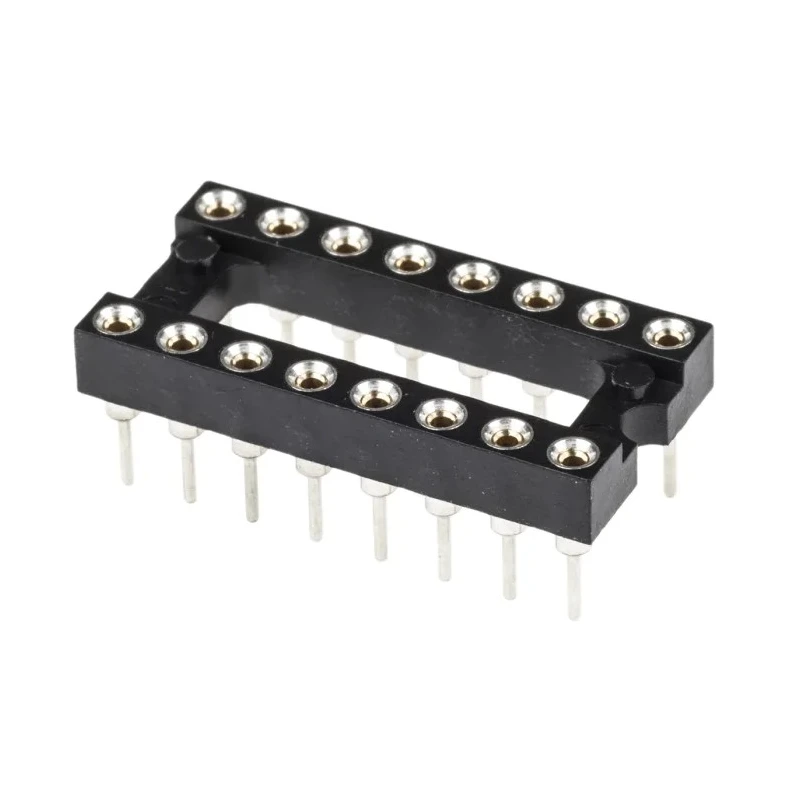

Preci-Dip 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-316-41-001101

Preci-Dip 110-87-316-41-001101 is a 2.54 mm pitch vertical 16 way Dual Inline Package (DIL) open frame socket designed for through hole PCB mounting. It offers a reliable, precise connection for IC components in demanding industrial, electronic manufacturing, and laboratory applications.

The socket's turned pins enhance the connection quality while its open frame design facilitates inspection, rework, and soldering processes. It features a 7.62 mm row width and a compact size of 20.3 mm length, 10.1 mm width, and 2.8 mm depth, providing space-efficient mounting on PCBs.

Constructed with beryllium copper alloy and brass contacts plated with tin and gold, the socket ensures excellent electrical conductivity and corrosion resistance. The housing uses fiberglass reinforced polyethylene terephthalate, contributing to mechanical robustness and heat resistance. Rated voltage is 150V DC and current is 1A, making it suitable for low voltage electronic devices and sensors.

The socket supports vertical orientation and features solder termination, enabling secure and durable PCB connection. It operates reliably across a wide temperature range from -55°C to 125°C, suitable for harsh industrial, laboratory, and HVAC environments.

Manufactured in Switzerland to exacting quality standards, this DIL socket series (110) is compatible with a variety of PCB mount applications including electronics assemblies, test equipment, manufacturing machines, and control systems.

The socket features turned pins with a 2.54 mm pitch to ensure precise component alignment. It has an open frame design allowing easy inspection and soldering. Construction uses beryllium copper alloy and brass for contact materials with tin and gold plating for reliability.

The housing is made from fiberglass reinforced polyethylene terephthalate, providing high durability and thermal stability. Operating voltage is rated at 150 V DC, suitable for low voltage electronic assemblies. This socket supports a row width of 7.62 mm and vertical orientation for use in dual inline packaging.

Designed for solder termination with through hole mount style for secure PCB integration. Operating temperature range from -55°C to 125°C supports a wide variety of industrial environments. The product is manufactured in Switzerland ensuring high quality standards.

The 16 contacts provide reliable connectivity for integrated circuit devices.

This Preci-Dip 110-series open frame DIL socket is an essential electronic component for precise PCB integration in industrial electronics, manufacturing, laboratory instrumentation, and electronic prototyping. Ensure high reliability and efficient testing with this through hole solder mount socket featuring premium materials and Swiss manufacturing quality.
