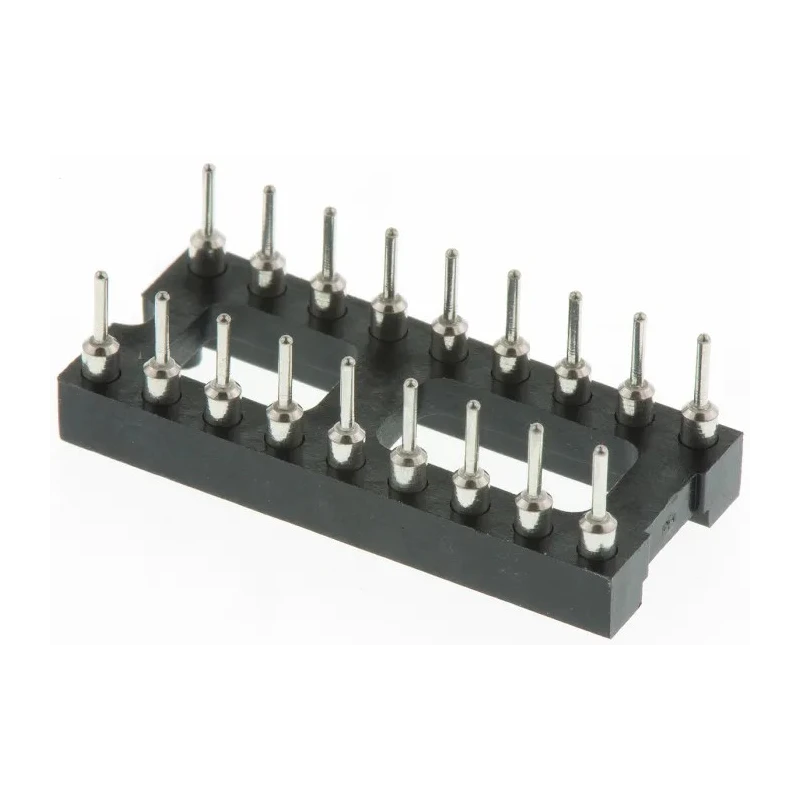

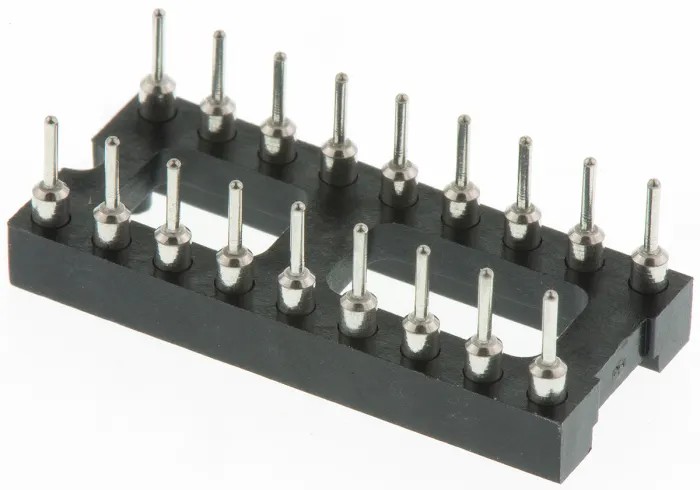

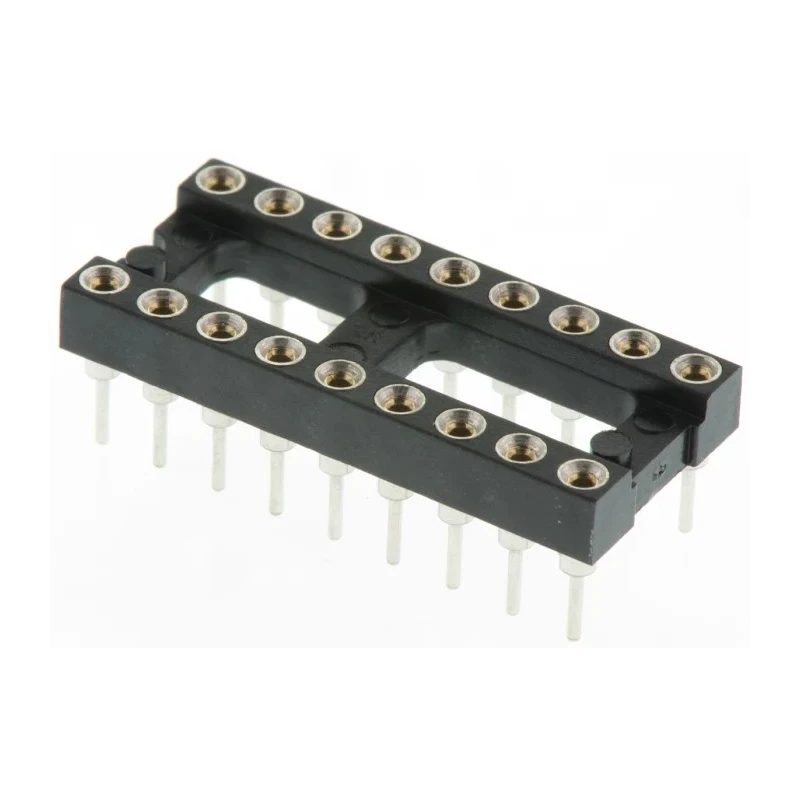

Preci-Dip 2.54 mm Pitch Vertical 18 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-318-41-001101

Preci-Dip model 110-87-318-41-001101 vertical 18 way Through Hole turned pin Open Frame DIL Socket with 2.54 mm pitch provides precise IC socket interfaces for electronics manufacturing and testing.

This 110 Series DIL socket is designed for robust and reliable through hole mounting, suitable in electronic assemblies requiring mechanical stability and electrical performance. It supports a current rating of 1A at 150V DC voltage, making it ideal for medium-power digital and analog circuits.

The contacts are fabricated from beryllium copper alloy and brass, plated with tin and a gold flash for low contact resistance and superior corrosion resistance, enhancing electrical reliability in industrial environments.

The open frame design offers easy access for testing and replacement during assembly and maintenance tasks. Solder termination techniques ensure firm board integration while maintaining ease of manufacturing.

Operating temperature range from -55°C to 125°C grants high tolerance for demanding environments common in industrial, laboratory, and manufacturing applications. Key physical dimensions include a length of 22.8 mm, width of 10.1 mm, depth of 2.8 mm, and a row width of 7.62 mm, enabling sleek circuit board layouts.

Manufactured with fiberglass reinforced polyethylene terephthalate housing, this socket brings mechanical strength and electrical insulation in a compact footprint. This DIL socket features 18 contacts for reliable IC connections.

Designed with a 2.54 mm pitch for compatibility with standard configurations. Constructed using beryllium copper alloy and brass contact materials with tin and gold plating for enhanced conductivity. Features an open frame with vertical orientation and solder termination for secure board mounting.

Operates safely up to 150V DC and supports a current rating of 1A. Suitable for operating temperatures ranging from -55°C to 125°C, ensuring durability in varied environments. Housing made of fiberglass reinforced polyethylene terephthalate for mechanical strength.

Compact dimensions with length 22.8 mm, width 10.1 mm, depth 2.8 mm, and row width of 7.62 mm. Engineered for through hole mounting with turned pin type ensuring easy insertion and removal. Manufactured in Switzerland with high-quality standards and reliability.

This product is widely used in industrial electronics manufacturing, testing labs, and production lines requiring precision connector sockets compatible with 2.54 mm pitch dual in-line packages (DIP). Being Swiss made, it assures quality and long-term reliability.
