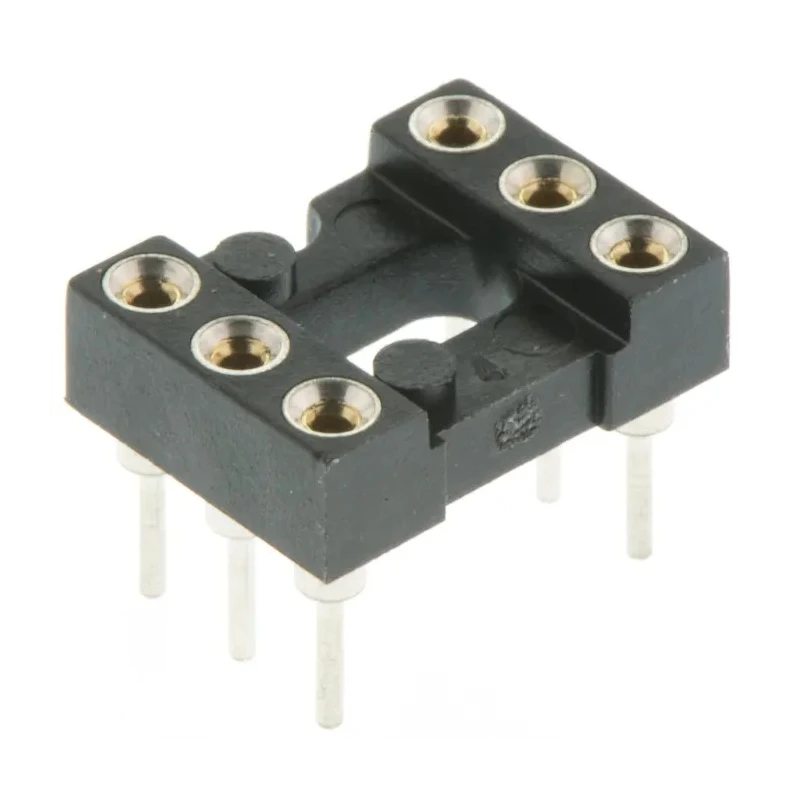

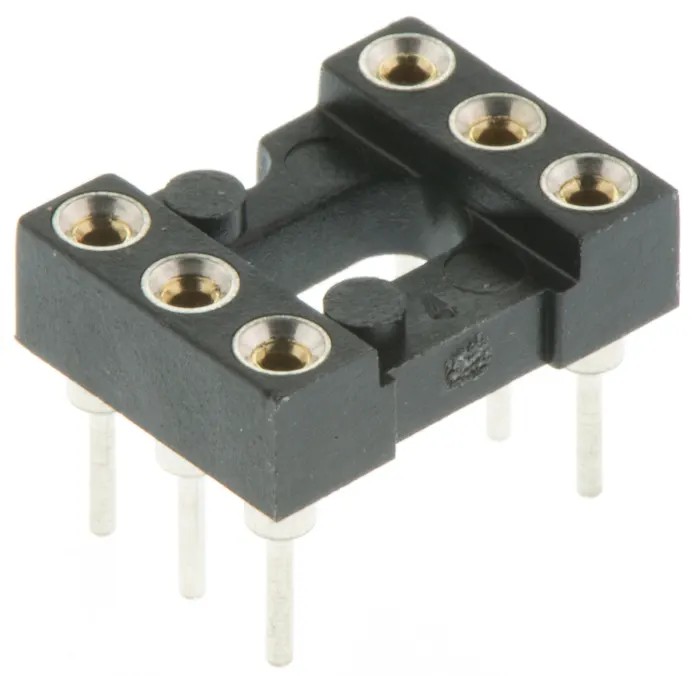

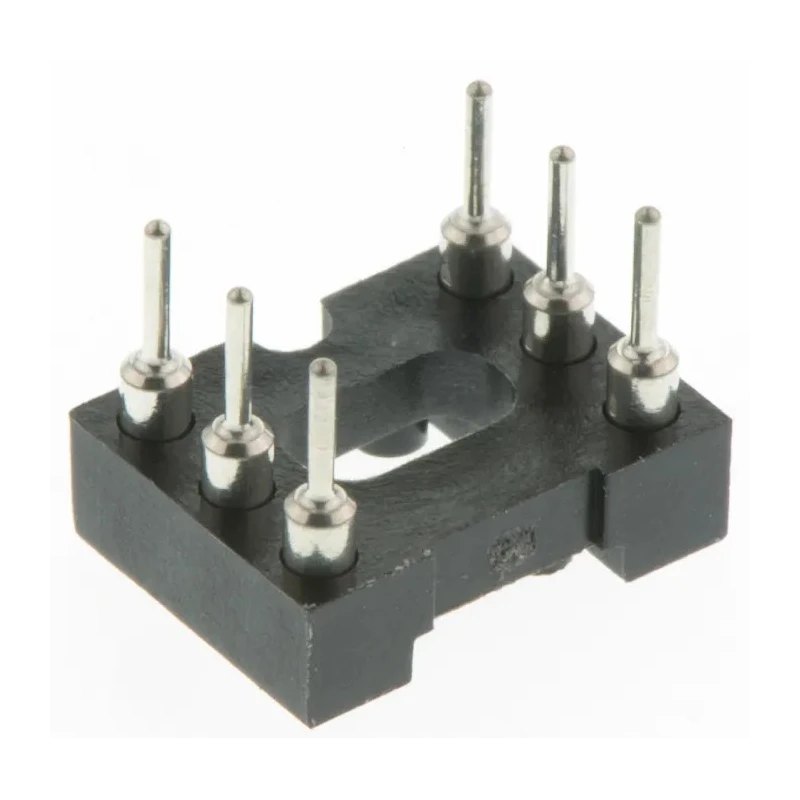

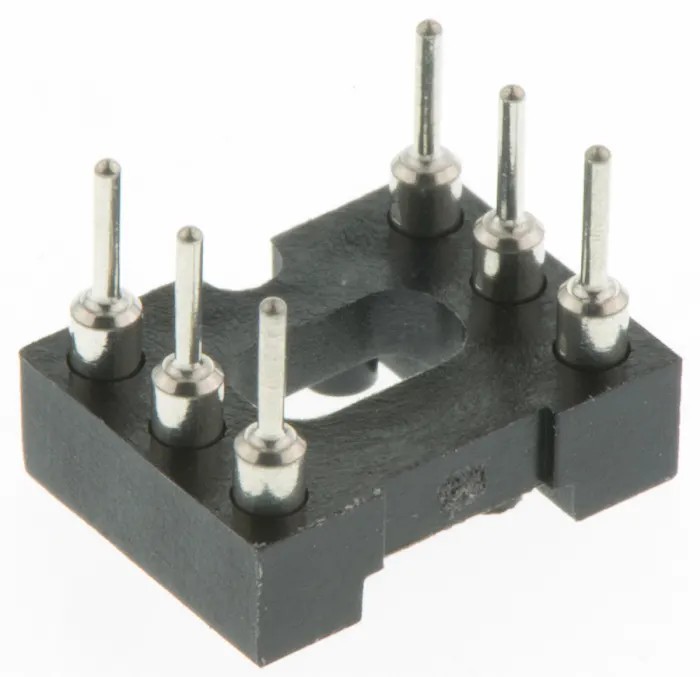

Preci-Dip 2.54 mm Pitch Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-306-41-001101

Preci-Dip 110-87-306-41-001101 Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket is a premium quality dual in-line package socket designed with a pin pitch of 2.54 mm to accommodate 6 contact points. This open frame DIL socket allows through-hole mounting with solder termination, providing a secure and robust connection interface for electronic components on printed circuit boards.

Manufactured using turned pins made from brass and beryllium copper alloy, the socket ensures excellent electrical conductivity and mechanical reliability. The contacts are plated with gold and tin, enhancing corrosion resistance and ensuring long-term stable contact performance. The housing material is fibreglass reinforced polyethylene terephthalate, providing exceptional mechanical strength and durability under demanding industrial environments.

The socket supports up to 1 amp current and a voltage rating of 150 V DC, making it suitable for moderate power applications. Its operational temperature range from -55°C to 125°C enables reliable usage across a broad spectrum of industrial, laboratory, and electronic manufacturing environments.

With precise dimensions of 10.1 mm width, 7.6 mm length, and 2.8 mm depth, the socket ensures an accurate fit for standard PCBs. The series 110 sockets are UL 94V-0 compliant, certifying its flame retardancy and safety in electronic assemblies.

Features a 2.54 mm pitch for standard dual in-line package compatibility. Supports 6 contacts arranged vertically in an open frame design. Constructed with turned brass and beryllium copper alloy contact material for durability.

Contact plating includes gold and tin for enhanced conductivity and corrosion resistance. Designed for through-hole mounting with solder termination for secure PCB connection. Operates at 1 amp current with a maximum voltage rating of 150 V DC.

Operational temperature range from -55°C to 125°C suitable for varied thermal environments. Housing made of fibreglass reinforced polyethylene terephthalate for mechanical strength. Dimensions are 10.1 mm width, 7.6 mm length, and 2.8 mm depth for precise PCB footprint.

Compliant with UL 94V-0 flammability standard ensuring safety and reliability.

This DIL Socket is ideal for electronic manufacturing, testing, repair, and prototyping requiring secure and reliable dual in-line connections. Its robust construction and precise design make it suitable for use in industrial automation, laboratory instrumentation, and electronic device assembly applications.
