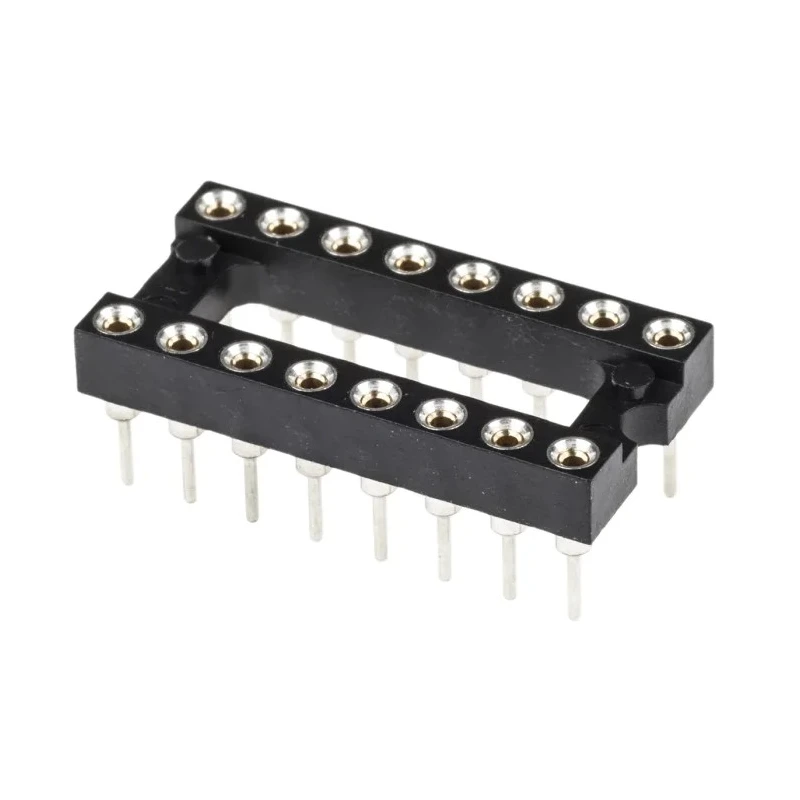

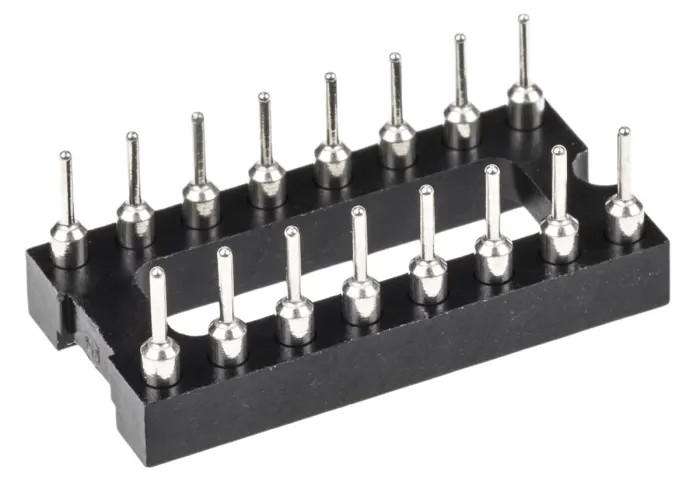

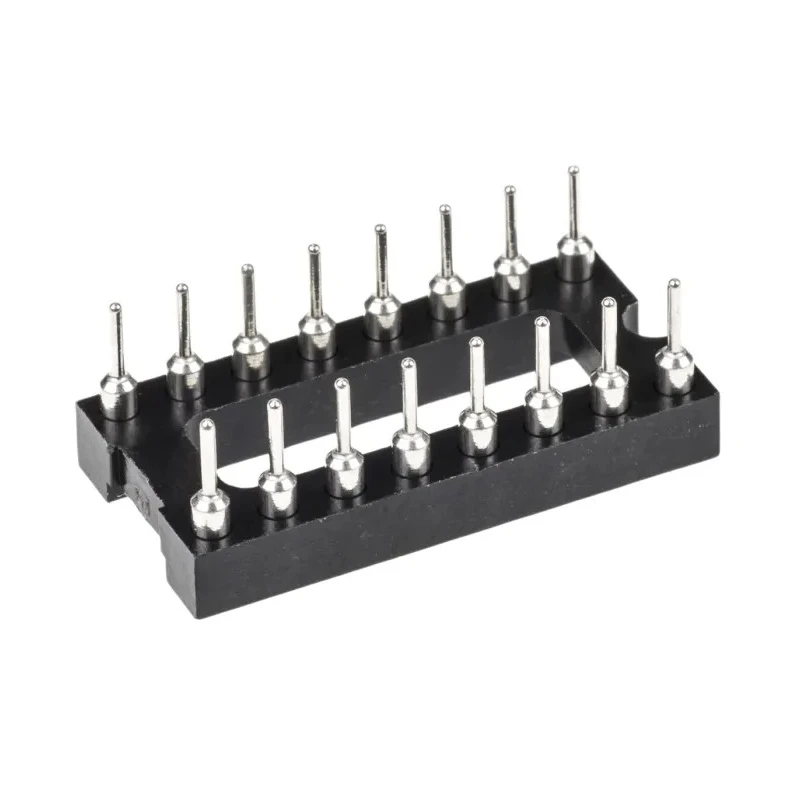

Preci-Dip 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-316-41-001101

Preci-Dip 110-87-316-41-001101 is a Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket with 2.54 mm pitch and 1A current rating. It is part of the 110 series by Preci-Dip, designed for secure and reliable electronic connections in demanding industrial and electronic applications.

The socket features an open frame design with beryllium copper alloy and brass contacts, ensuring excellent conductivity and mechanical resilience. The contact pins are turned for durability and precise fitting, plated with tin and gold flash to enhance corrosion resistance and electrical performance. The housing is crafted from fibreglass reinforced polyethylene terephthalate, which provides robust electrical insulation and mechanical strength for industrial usage.

Operating within a voltage rating of 150V DC and a current of 1A, this socket is suitable for various PCB mounting applications including industrial electronics, manufacturing test systems, and prototyping. It supports solder termination with a vertical orientation and a row width of 7.62 mm, facilitating easy installation and reliability in circuit designs.

With an operating temperature range of -55°C to 125°C, it is engineered to withstand harsh industrial environments. The socket dimensions are length 20.3 mm, width 10.1 mm, and depth 2.8 mm, allowing compact but effective use on printed circuit boards.

Manufactured in Switzerland, it embodies high-quality Swiss engineering standards and precision. The 110 series includes variants with and without centre bars for various application needs, enhancing flexibility in electronic socket selection.

The socket has 16 contacts designed for 2.54 mm pitch connections. Through hole mount type for secure PCB integration. Contact pins are turned and plated with tin and gold flash. The frame is open for improved access and heat dissipation.

Supports 1A current and 150V DC voltage rating. Vertical orientation with solder termination type. Operating temperature range from -55°C to 125°C. Dimensions: Length 20.3 mm, Width 10.1 mm, Depth 2.8 mm. Housing material is fibreglass reinforced polyethylene terephthalate.

Country of origin: Switzerland.

This robust and reliable DIL socket is ideal for industrial electronics, manufacturing, laboratory instrumentation, and PCB testing environments. It provides high-quality connection performance with excellent mechanical and electrical properties.
