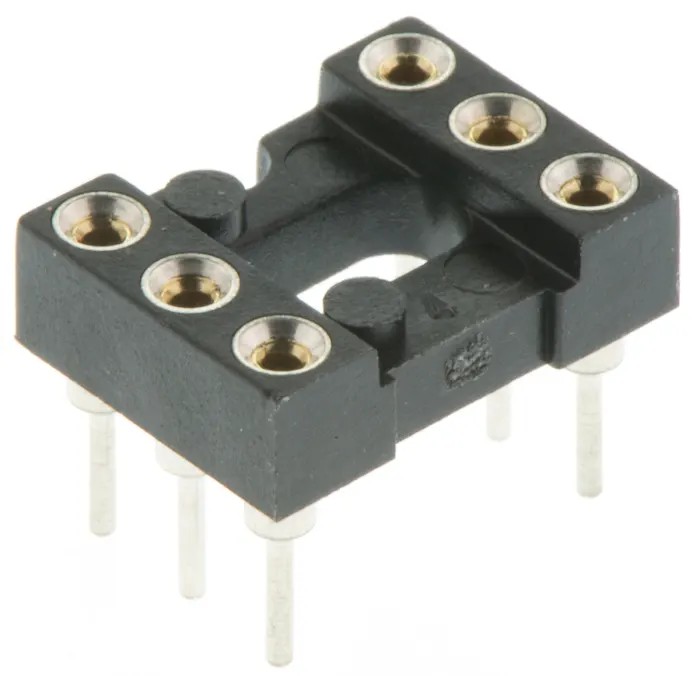

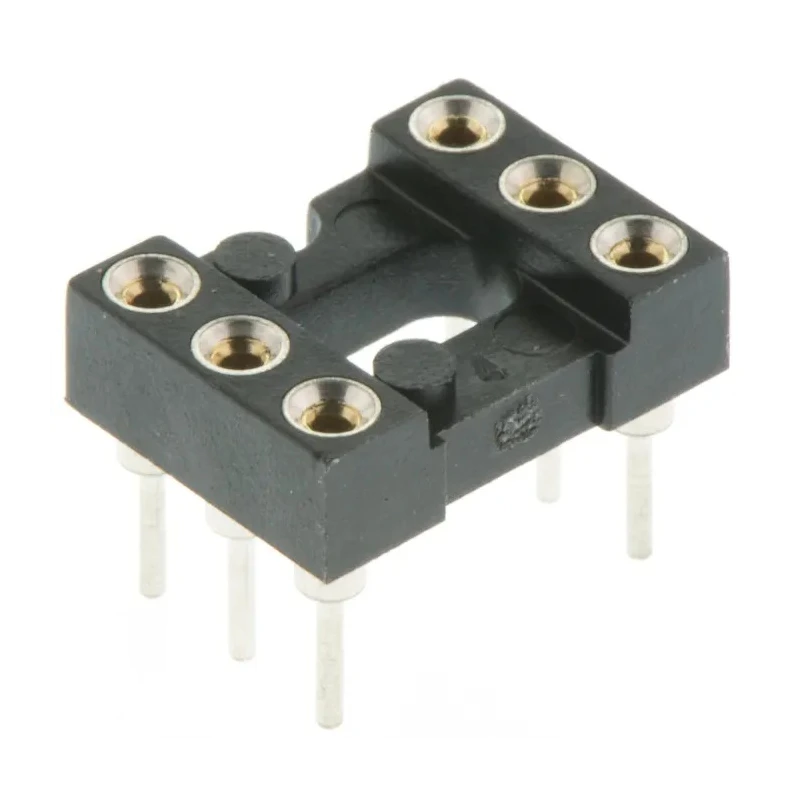

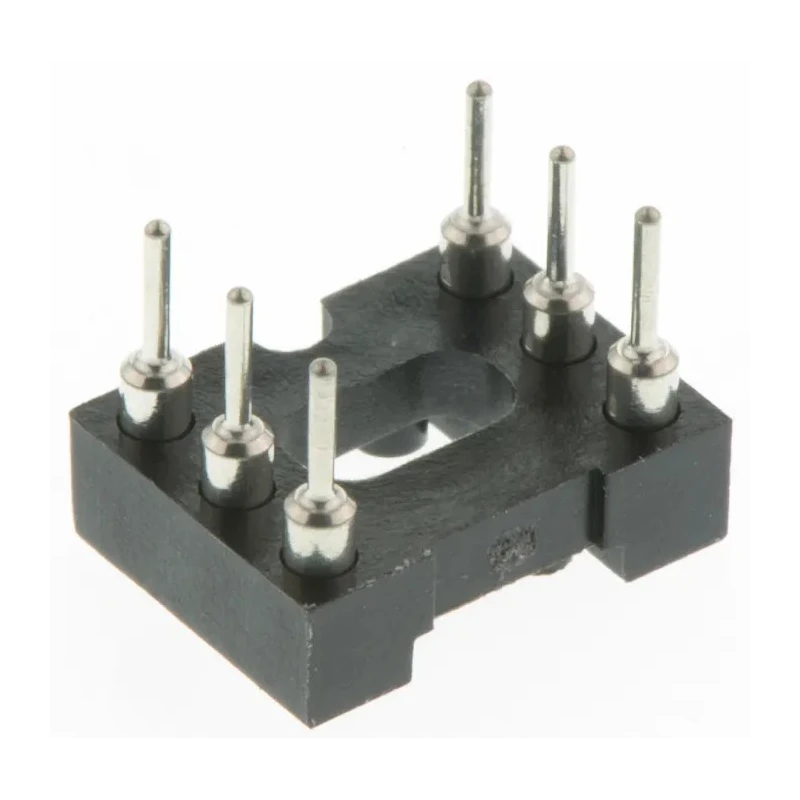

Preci-Dip 2.54 mm Pitch Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-306-41-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 2.54 mm Pitch Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-306-41-001101

Name: Preci-Dip 2.54 mm Pitch Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-306-41-001101
Brand: Preci-Dip
SKU: 215414
Price: 0.69 USD
Availability: InStock



Category DIL Socket Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V dc
Brand	Preci-Dip
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	7.6mm
Depth	2.8mm
Width	10.1mm
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass, Beryllium Copper Alloy
Series	110
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold, Tin
Number of Contacts	6
Pin Type	Turned
Row Width	7.62mm
Stock numbers	702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar

Key Features

Features a gold and tin plated turned pin contact for trustworthy connections.
Constructed with brass and beryllium copper alloy contacts for durability.
Housing is fiberglass reinforced polyethylene terephthalate for high mechanical stability.
Operates within a temperature range of -55°C to 125°C.
Designed for vertical orientation with solder termination type.
Suitable for a voltage rating of 150 V DC and 7.62 mm row width.
Compact dimensions of 10.1 mm width, 2.8 mm depth, and 7.6 mm length.
Open frame design allows ease of circuit testing and reflow soldering compatibility.

Product Description

Preci-Dip 110-87-306-41-001101 is a high-quality 2.54 mm pitch vertical 6 way through hole DIL socket, featuring turned pin open frame construction and a 1A current rating. Manufactured with premium brass and beryllium copper alloy contacts plated in gold and tin, this socket ensures excellent electrical conductivity and durability. The housing is made from fiberglass reinforced polyethylene terephthalate, providing robust mechanical strength suitable for industrial and electronics manufacturing environments.

The product supports a voltage rating of 150 V DC and is designed for vertical mounting with solder termination. It offers a 7.62 mm row width and compact dimensions of 10.1 mm width, 2.8 mm depth, and 7.6 mm length which make it ideal for PCB integration in industrial electronics, telecommunications, and laboratory instrumentation applications.

This open frame DIL socket allows for easy circuit board testing and includes features favorable for reflow soldering processes including vapour phase soldering with gull wing terminations, ensuring mounting strength and test accessibility. The operating temperature range from -55°C to 125°C facilitates use in diverse environmental conditions. The product is manufactured in Switzerland to high Swiss standards and the 110 series includes variants with or without center bars as per specific circuit design needs.

Gold and tin plated turned pins ensure reliable electrical contact. Fiberglass reinforced polyethylene terephthalate housing offers superior durability. Compatible with reflow soldering and vapor phase soldering techniques.

Supports 1A continuous current and 150V DC voltage. Compact size aids high-density PCB designs. Vertical orientation suitable for standard DIL configurations. Operates effectively across a wide temperature range.

This DIL Socket is widely used in electronics assembly, industrial automation, instrumentation, and telecommunications sectors. Its precision construction and material quality ensure a stable, long-lasting connection for critical applications. Explore more Preci-Dip connectors and sockets on EnvMart for comprehensive component solutions.
