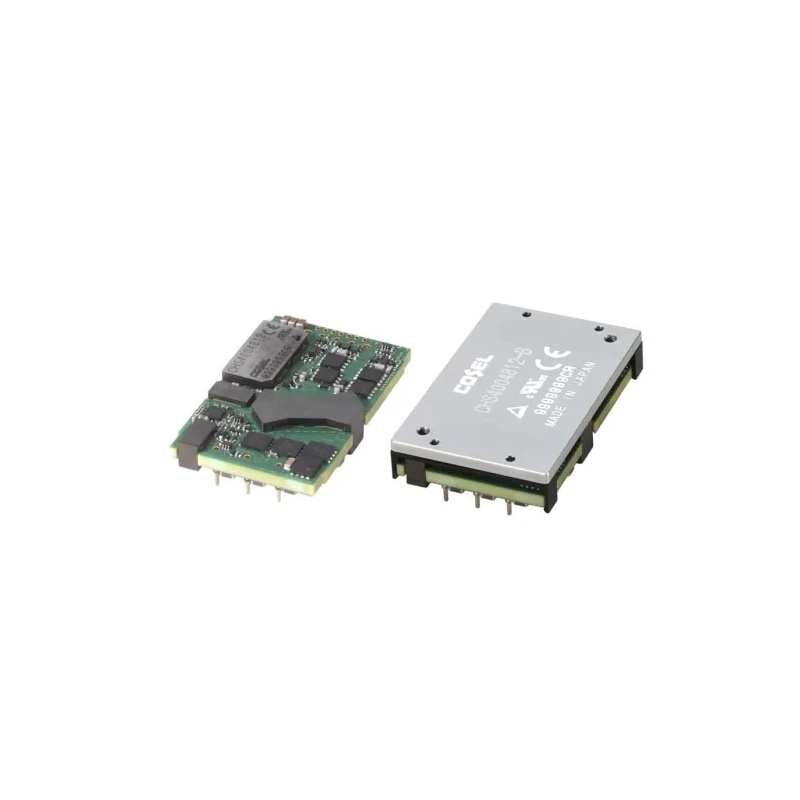

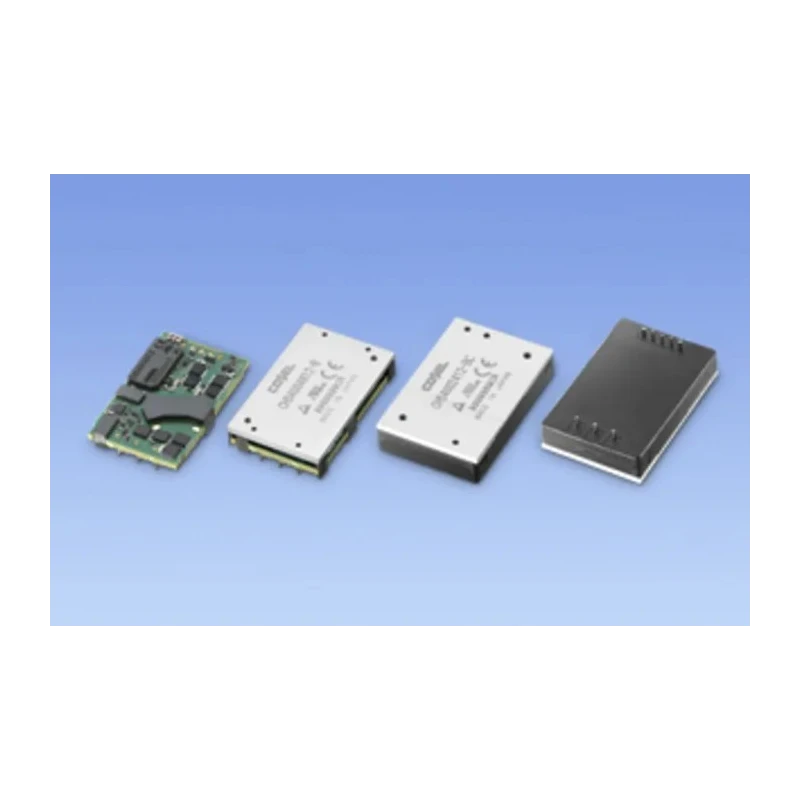

Cosel High Efficiency DC/DC Converter 12V DC Output 26.5 A, 36V DC Input, 318 W Power Through Hole DIP Package CHS4002412
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel CHS DC/DC Converter, 12V dc/ 26 |
| Brand | Cosel |
| Efficiency | 93.5% |
| Length | 58.4mm |
| Model | CHS4002412 |
| Depth | 36.8mm |
| Gross Weight | 60g |
| Width | 9.5mm |
| Mount Type | Through Hole |
| Series | CHS |
| Package Type | DIP |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 1 |
| Ripple and Noise | 180mV |
| Maximum Output Power | 318W |
| Maximum Input Voltage | 36V dc |
| Maximum Switching Frequency | 150kHz |
| Standards/Approvals | CE, cURus, RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 26.5A |
| Isolation Voltage | 500V dc |
Key Features
- Operates with input voltage range of 18V to 36V DC for flexible power supply integration.
- High conversion efficiency of 93.5% reduces energy loss and thermal stress.
- Built-in protections including overcurrent, overvoltage, thermal protection, and remote ON/OFF.
- Compact design with dimensions 58.4mm length, 36.8mm depth, and 9.5mm width suitable for PCB mounting.
- Isolation voltage of 500V DC ensures electrical safety and signal integrity.
- Minimal output ripple and noise of 180mV for stable voltage output.
- Supports maximum switching frequency of 150 kHz for fast response and stable regulation.
- Operating temperature range up to 85°C suitable for demanding industrial environments.
Product Description
Cosel CHS4002412 is a highly efficient DC/DC converter designed to convert input voltages ranging from 18V to 36V DC into a stable 12V output with a maximum current of 26.5 A, delivering up to 318 W of power in industrial and commercial applications.
This converter features a through-hole DIP package which facilitates easy and secure PCB assembly. It provides an isolation voltage of 500V DC, enhancing electrical safety and reducing noise interference.
Engineered with an efficiency of 93.5%, the CHS4002412 minimizes energy losses and heat generation, ensuring reliable operation in environments requiring continuous power delivery.
Inclusion of protection mechanisms such as overcurrent, overvoltage, and thermal shutdown safeguards both the converter and connected components. Additionally, the built-in remote ON/OFF capability allows flexible system control.
Despite its compact size with dimensions measured at 58.4mm (L) x 36.8mm (D) x 9.5mm (W) and light weight of 60g, the unit meets rigorous CE, cURus, and RoHS standards, making it suitable for demanding electrical and electronic systems in manufacturing, industrial controls, and power management domains.
The low ripple and noise voltage of 180mV ensures clean, stable output required for sensitive electronic devices. Its high switching frequency of 150 kHz improves transient response and voltage regulation.
Operates with wide input voltage range from 18V to 36V DC. High output current of 26.5 A at 12V DC. Compact through-hole DIP package for PCB mounting. Robust protections: overcurrent, overvoltage, thermal, and remote ON/OFF.
500V DC isolation voltage. Low ripple and noise at 180mV. High efficiency of 93.5% for energy saving. Ce, cURus, RoHS certified quality standards. Lightweight at 60 grams. Suitable for industrial, laboratory, manufacturing, and power supply applications.
Explore the full range of reliable DC/DC Converters by Cosel on EnvMart for trusted power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 18V to 36V DC.
The maximum output current is 26.5 A at 12V DC.
It has a high conversion efficiency of 93.5%.
The dimensions are 58.4mm in length, 36.8mm in depth, and 9.5mm in width.
It features an isolation voltage of 500V DC.
It includes overcurrent, overvoltage, thermal protection, and remote ON/OFF capabilities.
The output ripple and noise is minimal at 180mV.
It can deliver a maximum power output of 318 W.
The maximum switching frequency is 150 kHz.
It weighs 60 grams.
It meets CE, cURus, and RoHS standards.
It features a through-hole DIP package for PCB mounting.
