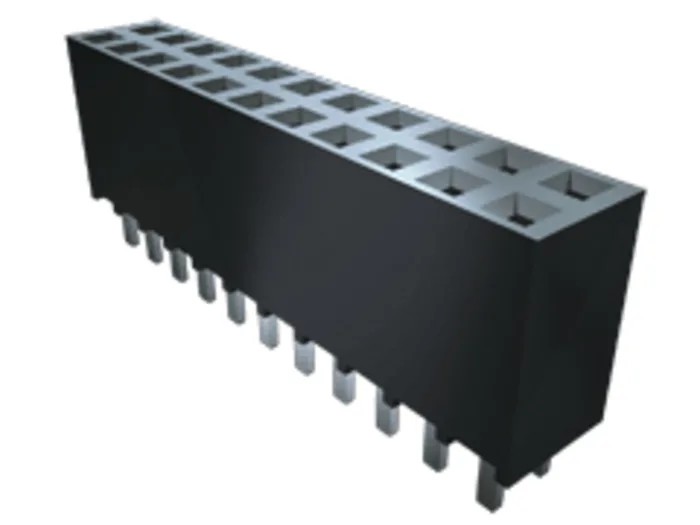

Samtec SSW Series Straight Through Hole PCB Socket 24-Contact 2 Row 2.54 mm Pitch 6.3A 655V SSW-112-01-F-D

Samtec SSW-112-01-F-D PCB Socket is a high-quality, straight through hole connector designed for board-to-board electronic applications. It features 24 female contacts arranged in two rows with a standard pitch of 2.54 mm, making it compatible with a wide variety of PCB layouts and designs.

The socket employs Tiger Buy™ contact system known for its high retention capability and cost-effectiveness. The housing material is liquid crystal polymer, which provides excellent mechanical strength and thermal stability, enabling robust performance across a broad operating temperature range from -55°C to 125°C.

With a current rating of 6.3A and voltage rating up to 655V, this socket caters to demanding electrical requirements. The contacts are made of bronze with gold plating for enhanced conductivity and corrosion resistance, ensuring long operational life.

Termination is performed through solder tails suitable for through-hole mounting, facilitating secure and reliable solder joints. The connector is oriented straight to allow easy mating with compatible board connectors and supports both standard and low insertion force contacts to accommodate different insertion needs, including mating with .025” square post terminals.

This product is ideal for applications in industrial electronics, telecommunications, manufacturing, and laboratory equipment where robust board-to-board interconnections are required. It is compliant with no specific standards or approvals, making it a versatile choice for various professional and commercial uses.

Constructed with high retention, cost-effective Tiger Buy™ contacts. Supports a current rating of 6.3A and voltage rating of 655V for reliable performance. Employs liquid crystal polymer housing material for durability and stability.

Termination is by through-hole soldering with standard solder tails for ease of mounting. Operates safely between -55°C to 125°C temperature range. Contact material is bronze with gold plating to ensure low resistance and corrosion resistance.

Designed for board-to-board connections with a female contact gender orientation. Includes standard and low insertion force contacts for versatile mating with .025” square post terminals. Explore the extensive range of Samtec connectors on EnvMart for high-quality electronic component solutions.
