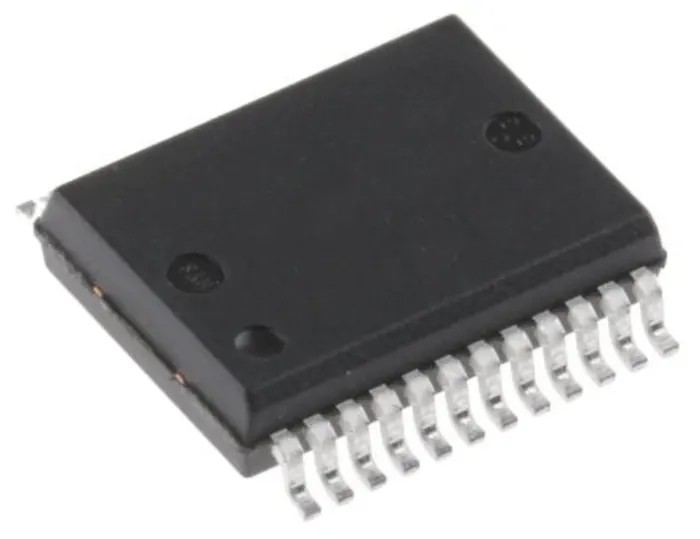

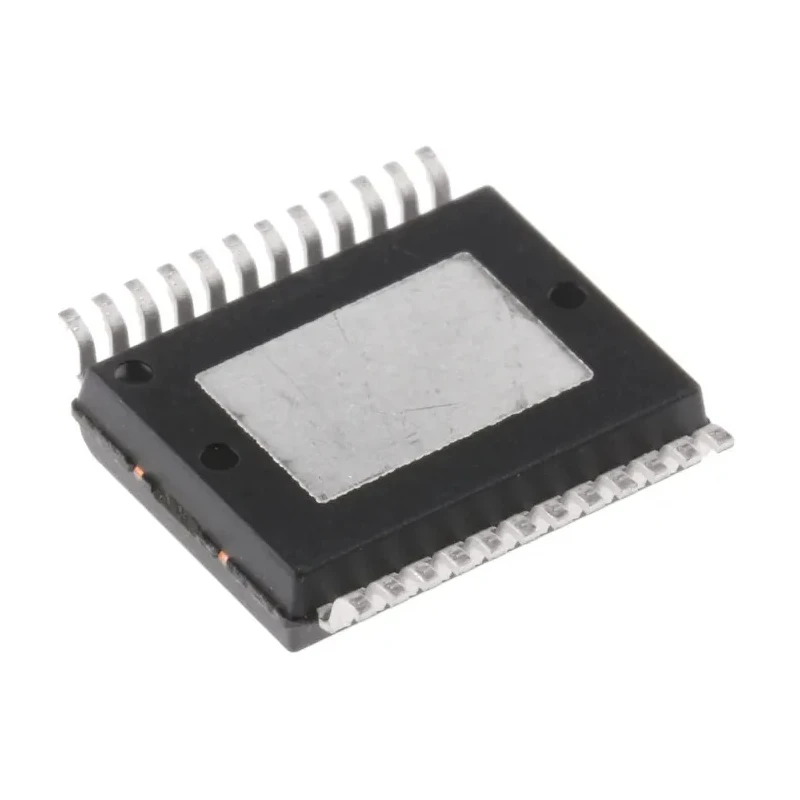

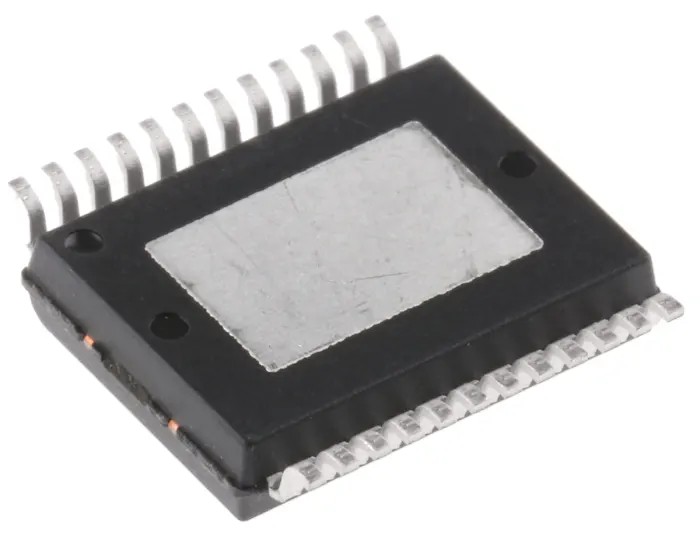

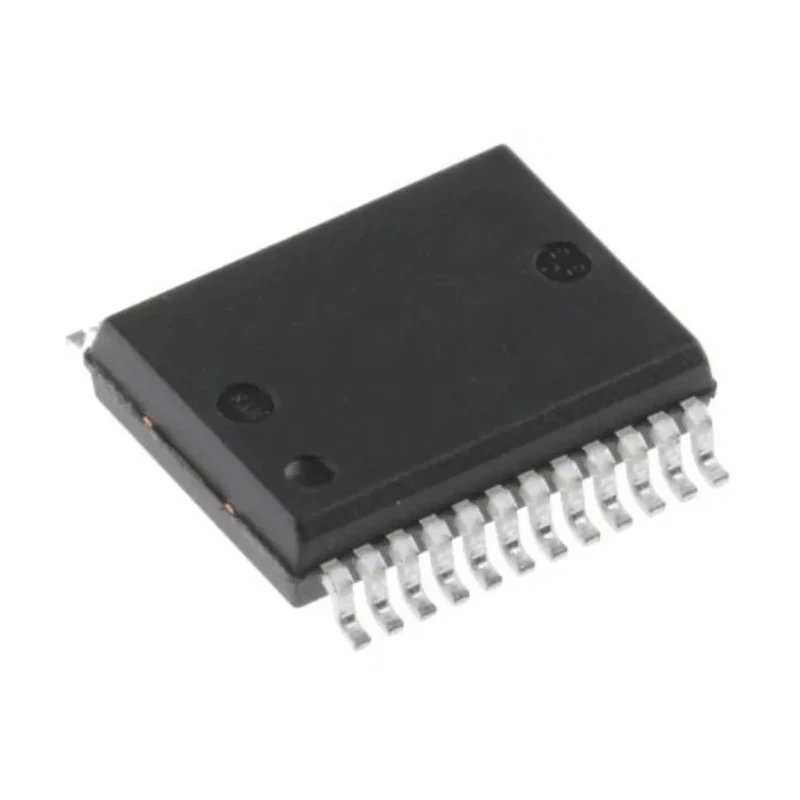

STMicroelectronics MOSFET Gate Driver 18A 24-Pin PowerSSO Surface Mount AEC-Q100 VND5050AK-E

STMicroelectronics VND5050AK-E MOSFET Gate Driver is a robust high-side power switch designed for driving MOSFETs with a maximum output current of 18 A. Packaged as a 24-pin PowerSSO, it supports surface mount technology, ensuring easy integration into modern PCB designs. This gate driver is built to comply with the AEC-Q100 automotive standard, making it highly suitable for use in automotive power management IC applications where reliability and performance under harsh conditions are critical.

The device operates efficiently within a temperature range of -40°C to 150°C, ensuring stable operation over wide environmental conditions. It is equipped with two drivers and two outputs, enabling it to control multiple MOSFETs simultaneously. The supply voltage range is fixed at 36 V for both minimum and maximum, aligning with typical automotive power circuits.

Its compact dimensions (10.5 mm in length, 7.6 mm in width, and 2.4 mm in height) and surface mount construction facilitate high-density PCB layouts. The device's fast switching capabilities with a 25 microseconds rise time and 35 microseconds fall time promote efficient power switching and reduced energy losses.

STMicroelectronics VND5050AK-E is ideal for industrial, automotive, and power management applications requiring precise MOSFET gate driving capabilities in demanding environments. The robustness of its design, combined with AEC-Q100 certification, guarantees high reliability for automotive grade designs.

The driver outputs a maximum current of 18 amperes for reliable MOSFET operation. It features a 24-pin PowerSSO package ensuring compact and efficient mounting. Designed for harsh automotive environments with AEC-Q100 certification compliance.

Operates between -40°C and 150°C for broad temperature tolerance. Includes two outputs and two drivers to control dual MOSFETs. Minimum and maximum supply voltage is 36 V to meet power requirements. Fast switching times with rise time of 25 microseconds and fall time of 35 microseconds.

Surface mount type facilitates ease of PCB assembly and integration. Compact dimensions of 10.5 mm length, 7.6 mm width, and 2.4 mm height. Ideal for automotive and industrial power management applications. Explore the Electronics & Electricals category at EnvMart for a wide range of semiconductor components, including MOSFET Gate Drivers like the STMicroelectronics VND5050AK-E.
