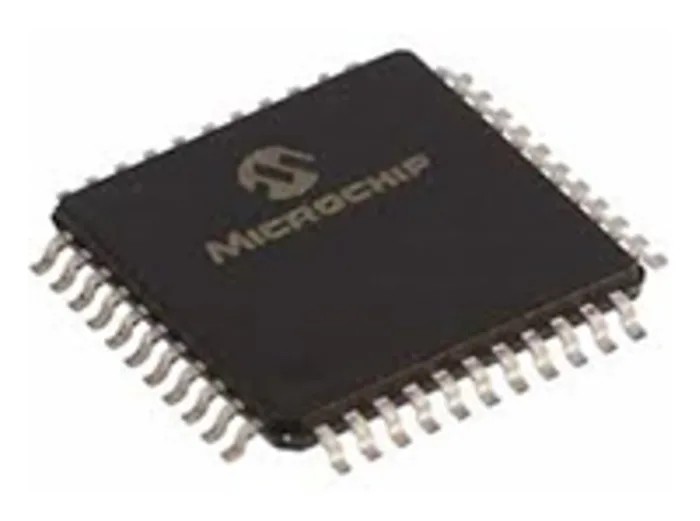

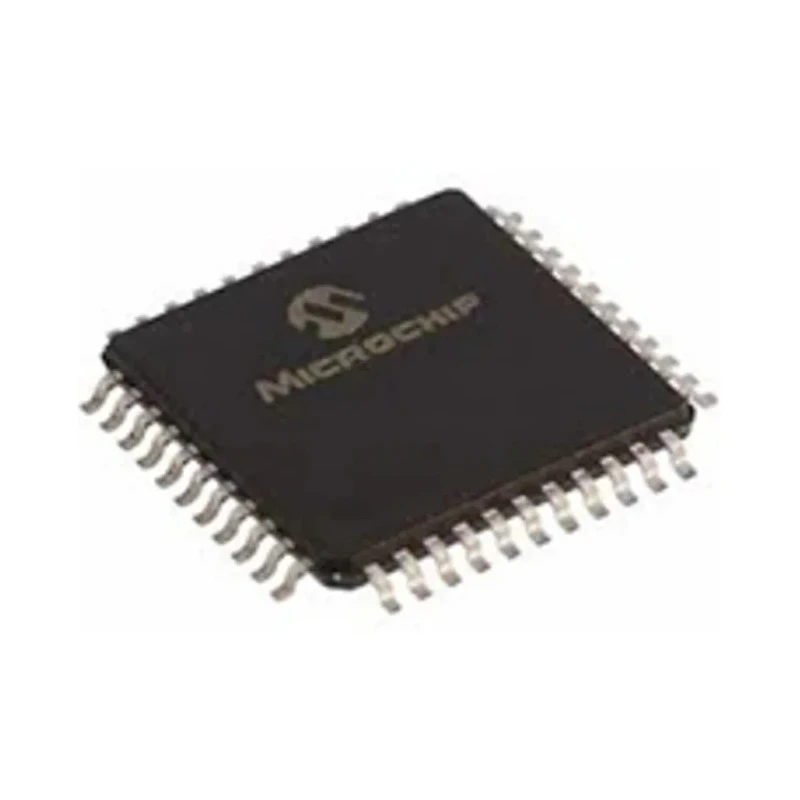

Microchip 8-Bit PIC Microcontroller PIC16F917-I/PT, 40 MHz, 14kB Flash, 44-Pin TQFP

The Microchip PIC16F917-I/PT is an advanced 8-bit CMOS microcontroller designed for demanding embedded and industrial applications requiring flexible processing, extensive I/O, and ultra low-power consumption. Featuring a maximum clock frequency of 40 MHz, this microcontroller delivers responsive and powerful operation suitable for real-time control systems and complex logic functions.

This model comes with 14kB of Flash program memory, 352 bytes SRAM, and 256 bytes EEPROM, ensuring robust storage for programs and runtime data. Flash and EEPROM endurance rates are exceptionally high, supporting up to 100,000 Flash writes and 1,000,000 EEPROM writes, ideal for applications requiring frequent updates or logging.

The PIC16F917-I/PT offers 35 programmable I/O pins, providing extensive connectivity to sensors, actuators, and peripheral devices. The surface mount 44-pin TQFP package, measuring 10 x 10 x 1.05 mm, supports efficient PCB design in compact spaces. The microcontroller’s analog subsystem includes 8 x 10-bit ADCs and 2 analogue comparators for precise data acquisition and analog signal processing.

Power management is streamlined through nanoWatt technology, allowing operation from 2V to 5.5V and supporting a wide variety of industrial power sources. Built-in power-saving features such as Sleep mode and an enhanced low-current watchdog timer ensure minimal energy consumption in standby states.

Versatile timer functionality (3 timers), interrupt capability, and a deep hardware stack provide flexible scheduling and responsive task handling. Built-in brownout reset, power-on reset, and code protection features add reliability and security for mission-critical deployments. The instruction set architecture is RISC, enabling efficient and rapid program execution.

The Microchip PIC16F917-I/PT is suited for embedded control, industrial automation, process monitoring, instrumentation, and any application requiring reliable and low-power microcontroller performance. Use cases include smart systems, industrial equipment, laboratory instrumentation, and HVAC control.

Operates with a maximum clock frequency of 40 MHz for fast processing. Features 14kB Flash program memory for flexible embedded development. Supports 352 bytes of RAM and 256 bytes of EEPROM for efficient data handling. Provides 35 programmable I/O pins for extensive interfacing options.

Surface mount TQFP package with compact 10 x 10 x 1.05 mm dimensions. Wide operating voltage range from 2V to 5.5V for varied power environments. Enhanced nanoWatt technology enables ultra low-power operation. Comes with 8 x 10-bit ADCs and multiple timers for versatile functionality.

Built-in power-saving features including Sleep mode and watchdog timer. High endurance memory: 100,000 writes for Flash, 1,000,000 for EEPROM. Browse more Microchip microcontroller products in the Microcontroller category on EnvMart.
