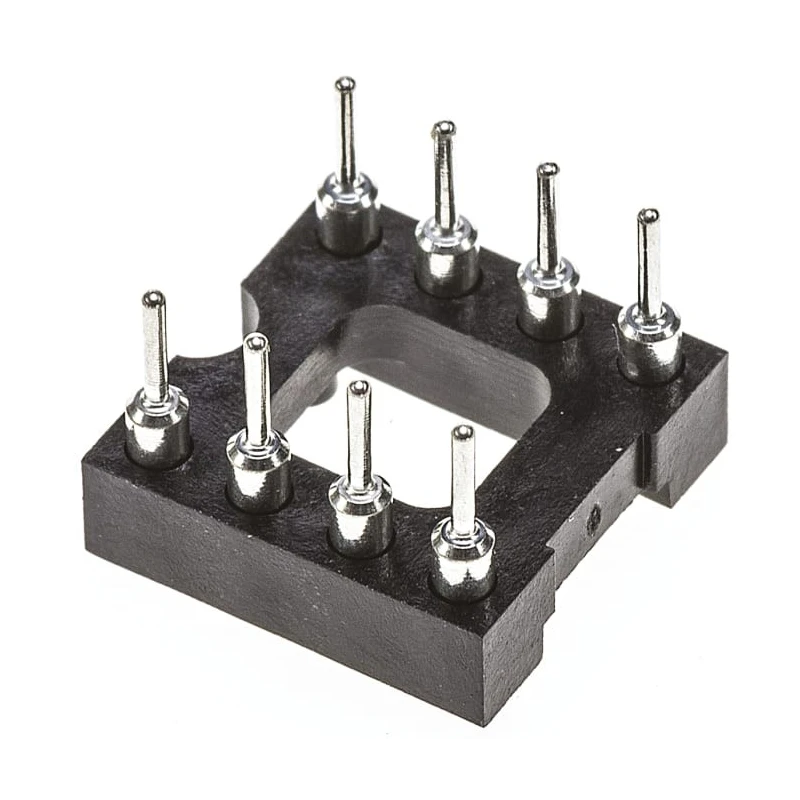

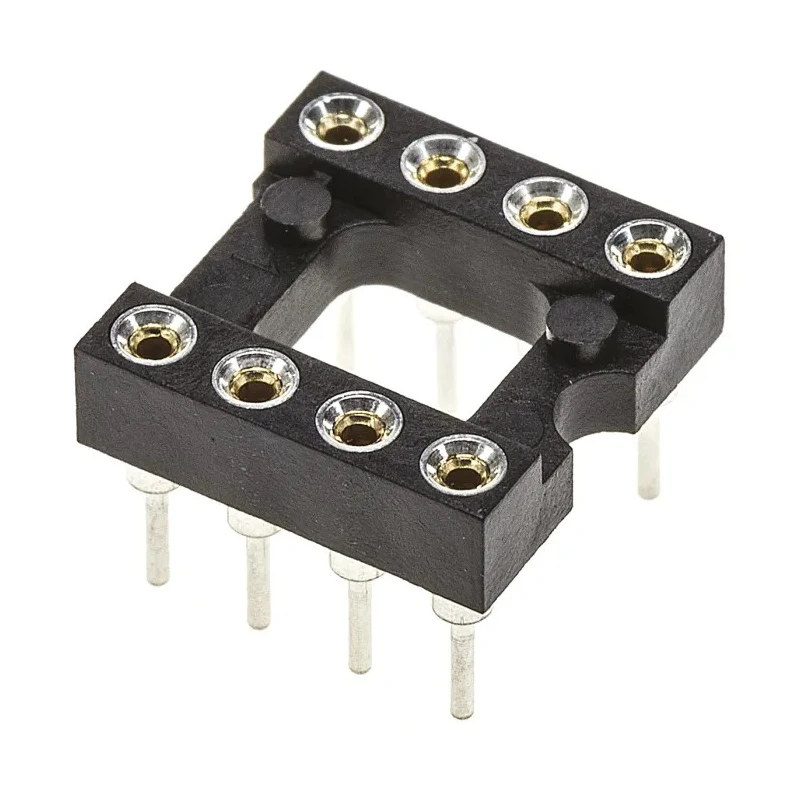

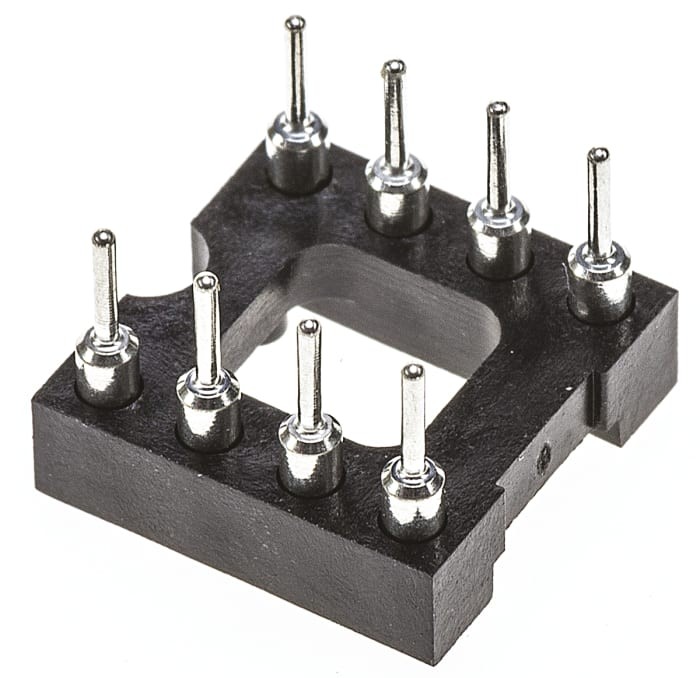

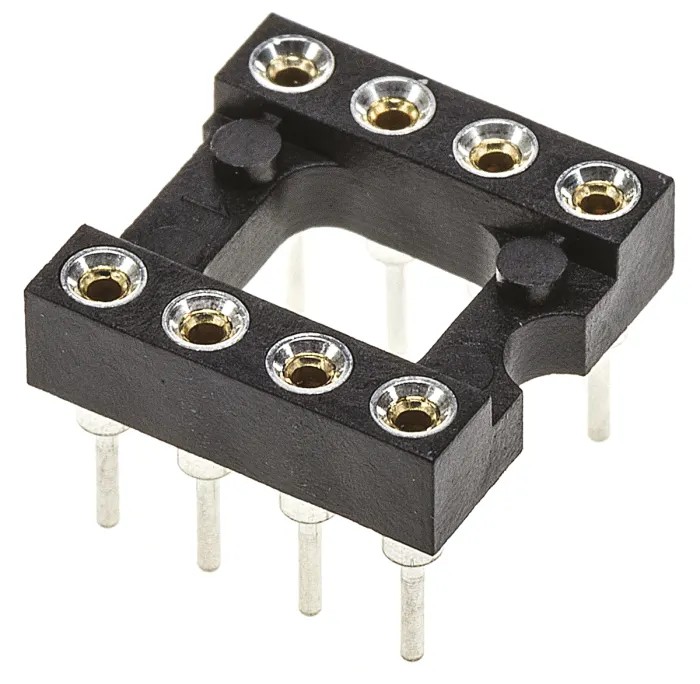

Preci-Dip 2.54 mm Pitch Vertical 8 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-308-41-001101

Preci-Dip 110-87-308-41-001101 is a precision 2.54 mm pitch vertical 8 way Through Hole Turned Pin Open Frame DIL Socket designed for electronic component assembly. This socket features a robust open frame construction with vertical orientation and is optimized for through hole mount applications on printed circuit boards. It supports currents up to 1 Amp and voltages between 100 and 150V AC, making it suitable for a variety of industrial and laboratory electronic interface requirements.

The contact assembly comprises high-quality beryllium copper alloy and brass materials, plated with tin and a gold flash for enhanced conductivity and corrosion resistance. The housing is made from fibreglass reinforced polyethylene terephthalate, delivering strong insulation and mechanical stability at operating temperatures from -55°C up to 125°C.

With a row width of 7.62 mm and a compact footprint measuring 10.1 mm in both length and width and a depth of 2.8 mm, this socket is engineered to maximize PCB layout efficiency while maintaining reliable signal integrity. Termination is through soldering, ensuring durable electrical connections in assembly lines.

This product, manufactured in Switzerland, complies with UL 94V-0 flammability standards, assuring safety and reliability for industrial electronics, manufacturing, and laboratory instrumentation. Its open frame design facilitates easy maintenance and testing in circuit during device assembly and servicing.

Typical applications include use in automated test equipment, industrial control systems, and precision instrumentation where secure and repeatable IC socket connections are essential. Choose Preci-Dip model 110-87-308-41-001101 for assured quality and performance in demanding electronics assembly environments.

The socket features 8 contacts providing reliable connections. Constructed with beryllium copper alloy and brass contacts for durability. Open frame design with vertical orientation suitable for through hole mounting. Contact plating includes tin with gold flash for corrosion resistance.

Operates within a temperature range from -55°C to 125°C safely. Fibreglass reinforced polyethylene terephthalate housing ensures insulation and strength. Compact dimensions of 10.1 mm length, 10.1 mm width, and 2.8 mm depth optimize PCB space.

Rated voltage of 100 to 150V AC supports diverse electronic applications. Termination type is solder, facilitating secure PCB integration. Designed and manufactured in Switzerland adhering to industrial quality standards.
