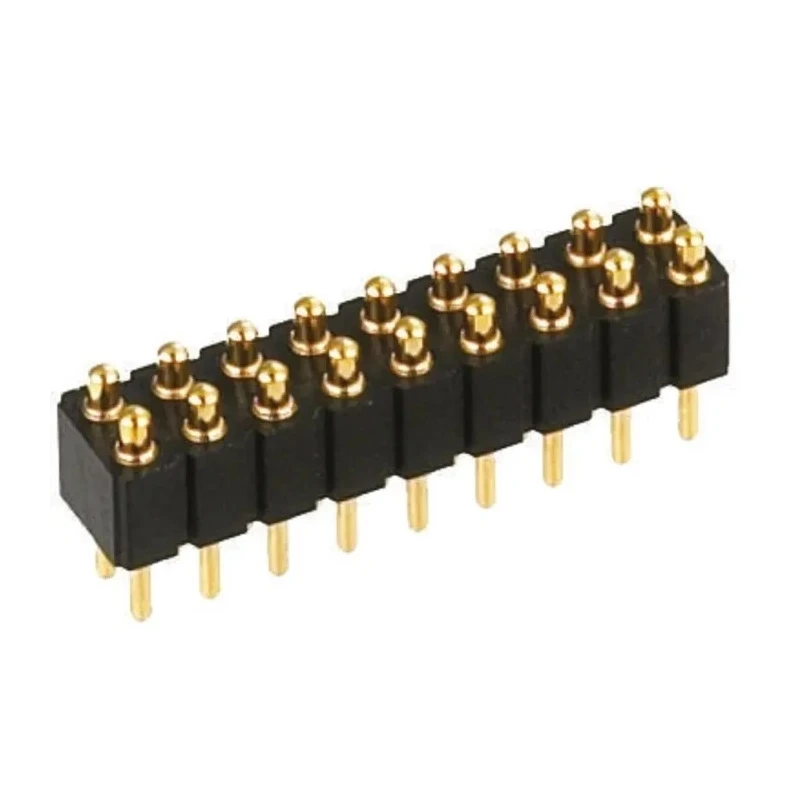

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 24 Contacts, 2.54 mm Pitch, 2 Row 813-S1-024-10-016101

Preci-Dip 813-S1-024-10-016101 is a high-quality straight through hole spring loaded connector designed for PCB applications requiring reliable electrical contacts. It offers 24 male contacts arranged in two rows with a 2.54 mm pitch, making it suitable for dense circuit assemblies. The connector body is constructed from robust fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and insulation.

The spring-loaded contacts utilize gold-plated brass to ensure low resistance and high conductivity, maintaining consistent performance even under mechanical vibration and motion. The connector is shrouded to enhance protection and correct mating alignment. Operating voltage is rated at 150 V with a current capacity of 3.5 A, supporting a broad range of electronic devices and industrial control systems.

The connector performs efficiently within an operating temperature range of -55°C to 125°C, making it fit for demanding environments. The plunger stroke length of 1.4 mm allows for effective contact pressure, assuring stable multipoint connections. Mounting is accomplished by through hole techniques, facilitating secure PCB integration.

Applications include industrial electronics, automation systems, laboratory equipment, and manufacturing processes requiring durable and precise electrical connectors. Its modular design supports ease of replacement and maintenance.

Low resistance modular spring-loaded contacts ensure stable electrical continuity. High durability housing material withstands mechanical and thermal stresses. Gold plating prevents corrosion and enhances contact reliability.

Two row, 24 contact configuration maximizes connectivity in compact spaces. Complies with UL 94V-0 flammability rating for safety. Operating voltage and current ratings support diverse electronics use cases. Through hole mounting provides mechanical stability within assemblies.

Preci-Dip connectors are trusted solutions in PCB connector technology. For an extensive range of PCB Connectors and detailed technical documents, explore EnvMart's Electronics & Electricals Connectors category.
