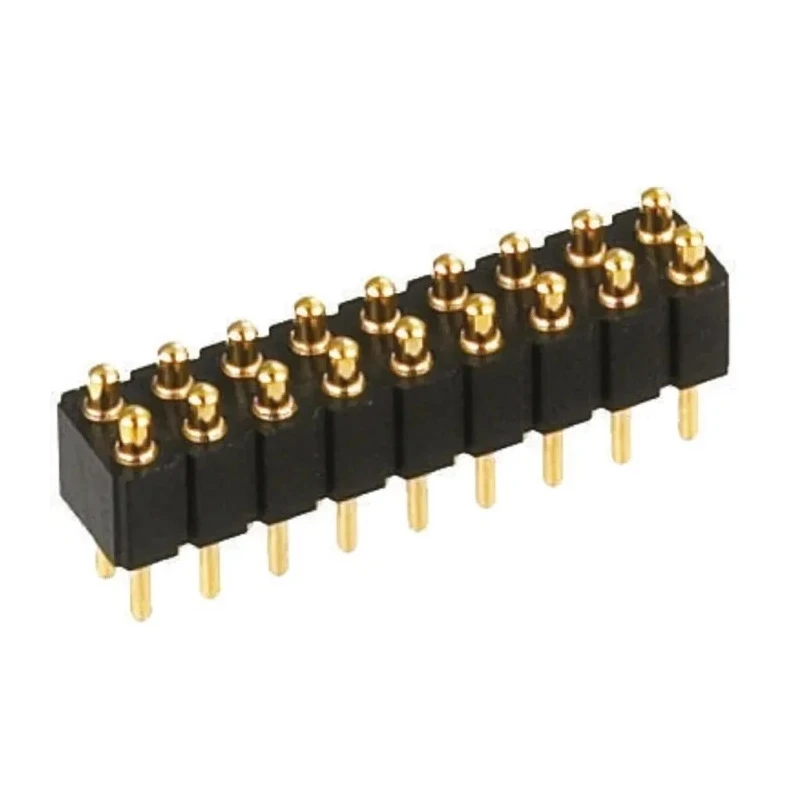

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 2 Row 813-S1-010-10-017101

Preci-Dip 813-S1-010-10-017101 is a high-reliability spring loaded connector designed for electronic components and PCB header applications. It features 10 spring-loaded contacts arranged in 2 rows with a 2.54 mm pitch, providing a compact and robust solution for electrical connections. The connector uses a through hole mounting style with male contacts, ensuring stable and durable solder termination.

The housing is made of fibreglass reinforced polyethylene terephthalate, offering excellent mechanical strength and flame retardant properties compliant with UL 94V-0. Contacts are brass plated with gold to ensure low contact resistance and high reliability over repeated cycles and vibration conditions.

Operating within a temperature range from -55°C to 125°C, this connector supports an electrical rating of 3.5A current and 150V voltage, making it suitable for diverse industrial electronic environments. The shrouded design adds mechanical protection, preventing accidental contact and enhancing endurance in demanding conditions.

These spring-loaded contacts provide low, stable electrical resistance values without micro-discontinuities, even when the piston moves or vibrates, ensuring maximum reliability in applications such as industrial automation, laboratory equipment, communications, and instrumentation.

Designed with spring-loaded contacts to ensure stable electrical connection. Features a 2.54 mm pitch and 2 rows for compact PCB integration. Shrouded housing provides enhanced durability and protection. Constructed from fibreglass reinforced polyethylene terephthalate housing and brass contacts plated with gold.

Operates within a temperature range of -55°C to 125°C. Rated for a current of 3.5A and voltage up to 150V. Through hole mount type suitable for solder termination with male contact gender. Reliably meets UL 94V-0 flame retardant standard for housing material.

Ideal for electronic component and PCB header applications requiring dependable multipoint connections.

This product is manufactured in Switzerland, ensuring quality and performance. Suitable for electronics manufacturing, industrial, and laboratory applications requiring reliable spring loaded connectors. Browse EnvMart for other Preci-Dip connectors and similar PCB header products to meet your industrial assembly needs.
