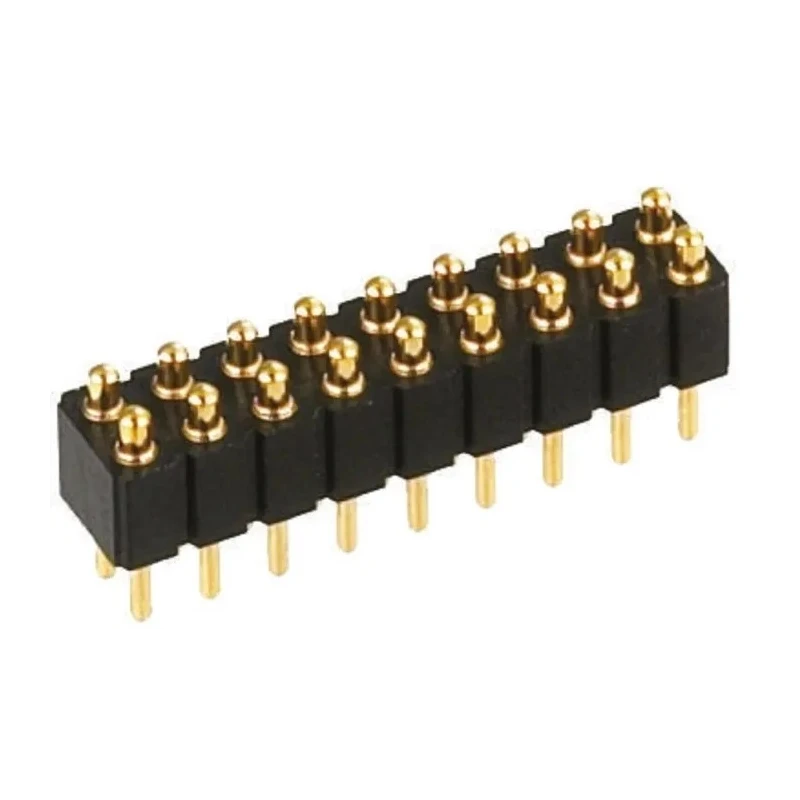

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector 20 Contacts 2.54 mm Pitch 2 Row 813-S1-020-10-016101

Preci-Dip 813-S1-020-10-016101 Spring Loaded Connector is a high-reliability electronic component designed for through hole mounting on printed circuit boards. Featuring 20 gold-plated brass contacts arranged in two rows with a 2.54 mm pitch, this connector ensures excellent electrical connection quality and durability.

The inner contact housing is made from fibreglass reinforced polyethylene terephthalate, providing robust mechanical strength and resistance to environmental stress. Operating over a wide temperature range from -55°C to 125°C, the connector is suitable for harsh industrial, laboratory, and manufacturing environments.

The spring-loaded contacts with a plunger stroke of 1.4 mm maintain stable, low-resistance connections even under vibration or mechanical movement, enhancing signal integrity in electronic applications. The plastic body height is 4 mm, enabling compact installations and high-density PCB designs.

This connector is shrouded and terminates by soldering, with male contact gender and a straight orientation, making it a preferred choice for reliable PCB interconnect solutions in automation, electrical equipment, and complex electronics assemblies.

Applications include industrial control systems, measurement instruments, communications equipment, and other electronic devices requiring dependable board connections. Preci-Dip connectors are alternatives to conventional connection methods, delivering increased reliability and resistance to micro-discontinuities.

Features 2.54 mm pitch with 20 brass contacts plated in gold. Includes a fibreglass reinforced polyethylene terephthalate housing for durability. Rated for a current of 3.5A and voltage of 150V. Operates reliably from -55°C to 125°C for extreme conditions.

Designed with shrouded male contacts and through hole solder termination. Offers a plunger stroke length of 1.4 mm for spring-loaded contact reliability. Ensures low, stable electrical resistance with multipoint connection technology.

Compact plastic body height is 4 mm, ideal for dense PCB layouts.

For advanced PCB design and integration, Preci-Dip provides design files and 3D mechanical data to facilitate production workflows. Choose this connector for stable, long-lasting connections in critical electronic assemblies.
