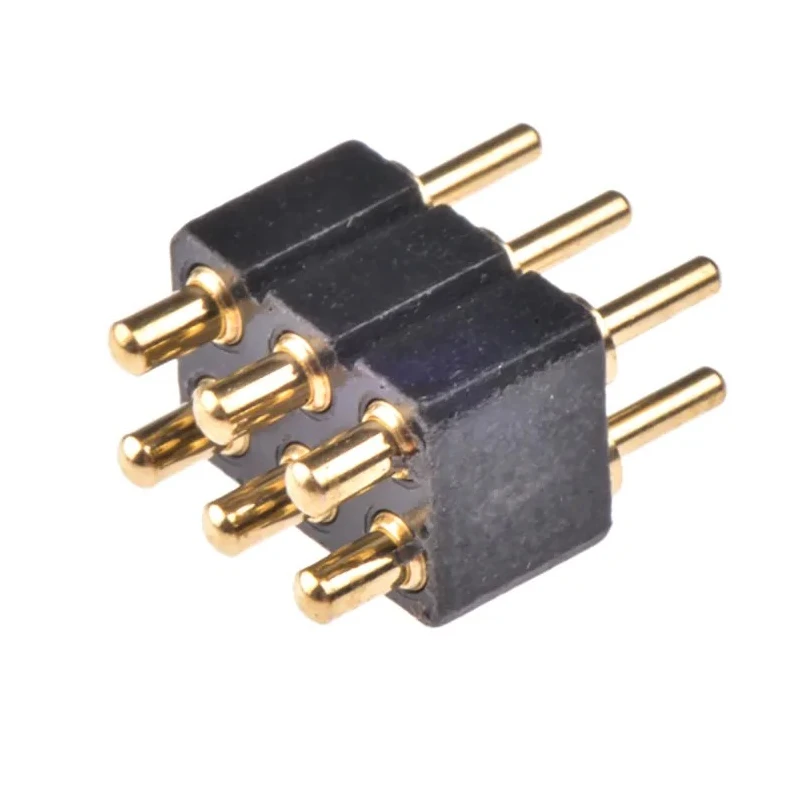

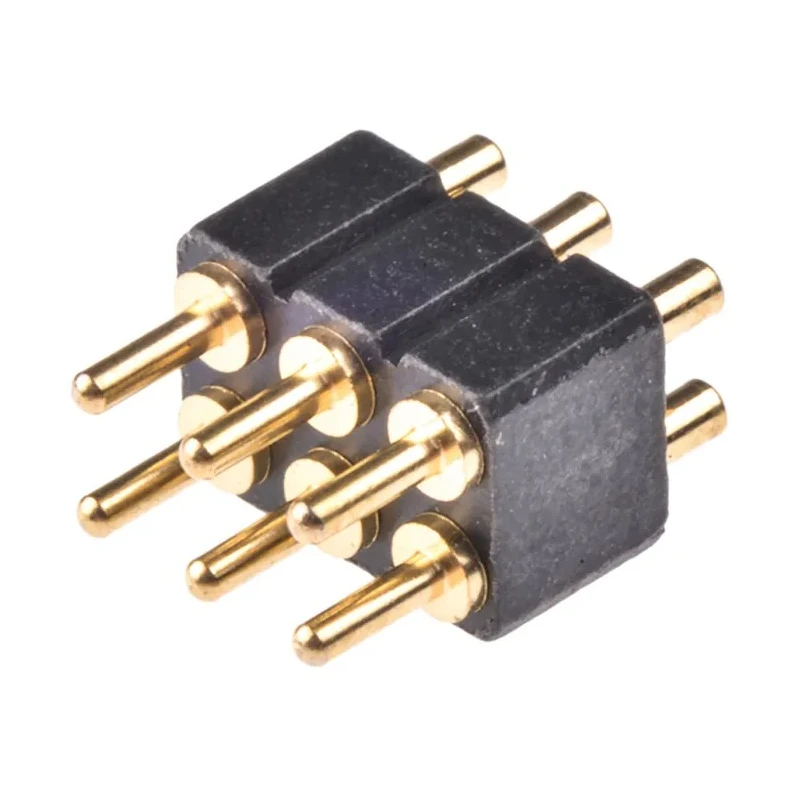

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector 6 Contacts 2.54 mm Pitch 2 Row 813-S1-006-10-015101

Preci-Dip 813-S1-006-10-015101 Spring Loaded Connector is a high-quality, reliable PCB connector designed for industrial and electronics applications. It features 6 male contacts arranged in 2 rows with a 2.54 mm pitch, allowing precise and secure connections on printed circuit boards.

The housing material is fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and resistance to environmental stress. The contacts are brass plated with gold to ensure low electrical resistance and long-term corrosion resistance.

The connector is of the straight through hole mount type with solder termination, facilitating robust mechanical fixation and ease of assembly. Its shrouded design offers protection to the contacts and enhances safety during installation and operation.

Electrical ratings include a current capacity of 3.5A and voltage rating of 150V, suitable for a range of industrial and electronic control equipment. The spring-loaded contacts maintain consistent contact force, minimizing micro-discontinuities caused by vibration or movement, thus delivering maximum reliability.

Operating temperature range extends from -55°C to 125°C, allowing use in harsh environments. This makes it suitable for automation, manufacturing, instrumentation, and other industrial applications requiring dependable PCB interconnection.

Consists of 6 male contacts in 2 rows with 2.54 mm pitch. Housing made of fibreglass reinforced polyethylene terephthalate. Gold-plated brass contacts for enhanced conductivity and corrosion resistance. Through hole mount type with solder termination and straight orientation.

Shrouded design protects contacts and prevents shorting. Operating temperature range from -55°C to 125°C. Rated for 3.5A current and 150V voltage. Manufactured in Switzerland ensuring premium quality standards.

This Preci-Dip connector is ideal for electrical and electronic assemblies where reliable, low resistance connections are critical. It supports industrial, automation, and embedded system applications requiring durability under vibration and thermal cycling.
