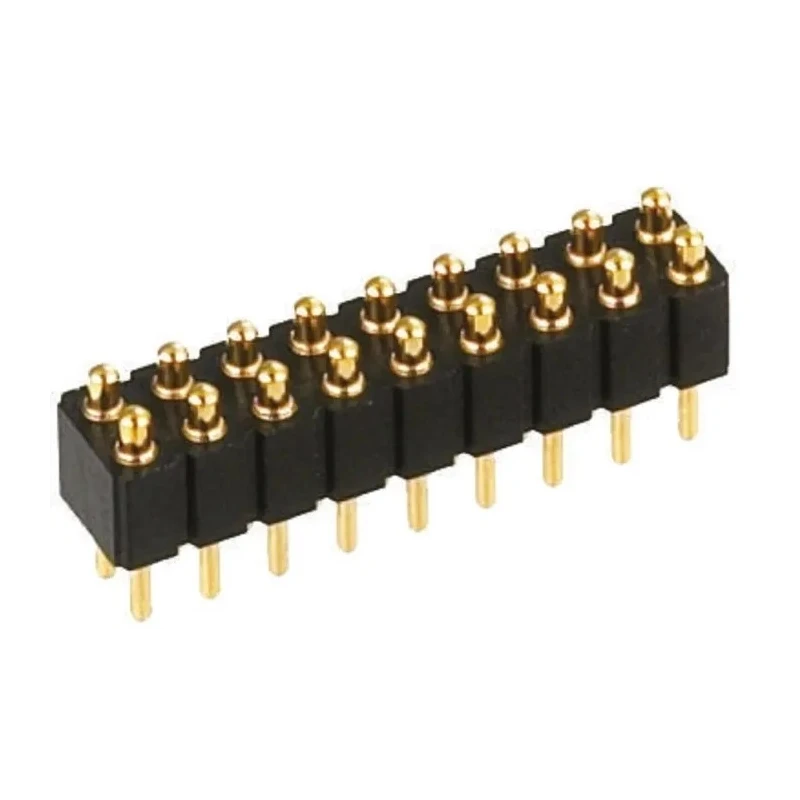

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector 20 Contacts 2.54 mm Pitch 2 Row 813-S1-020-10-014101

Preci-Dip 813-S1-020-10-014101 Spring Loaded Connector is a high-precision PCB connector featuring 20 contacts arranged in two rows with a 2.54 mm pitch. Designed for straight through hole mounting, this connector incorporates spring-loaded contacts that ensure stable, low resistance connections even under vibrations or movements, providing superior reliability in electronic assemblies.

The connector housing is constructed from fibreglass reinforced polyethylene terephthalate, delivering robust mechanical integrity and UL 94V-0 flame retardant compliance. Contacts are crafted from brass and plated with gold for excellent conductivity and resistance to corrosion, ensuring durability over extended use.

Operating temperature ranges from -55°C up to 125°C make it suitable for harsh industrial and electronic environments. The connector supports a current rating of 3.5A and voltage rating of 150V, accommodating a wide variety of power and signal PCB applications.

With solder termination and male gender contacts, the connector is designed for reliable and secure PCB assembly. The shrouded body design adds additional protection to the contacts and ensures proper alignment during installation.

This 813 Series connector is manufactured in Switzerland, maintaining high-quality standards and is an excellent solution for electronic manufacturing, industrial machinery, and other commercial electronic equipment requiring durable and precise PCB connections.

Features low resistance spring-loaded contacts for reliable electrical connections. Contacts are made of brass with gold plating for durability and conductivity. Housing made from fibreglass reinforced polyethylene terephthalate ensuring mechanical strength.

Operates reliably between -55°C and 125°C temperature range. Supports up to 3.5A current and 150V voltage rating suitable for diverse PCB applications. Termination is via solder, with male contact gender. Shrouded through hole mount design for secure installation.

Manufactured in Switzerland with UL 94V-0 compliant housing material. Explore more connectors and electronic components in our EnvMart catalogue for industrial, laboratory, and commercial electronic design needs.
