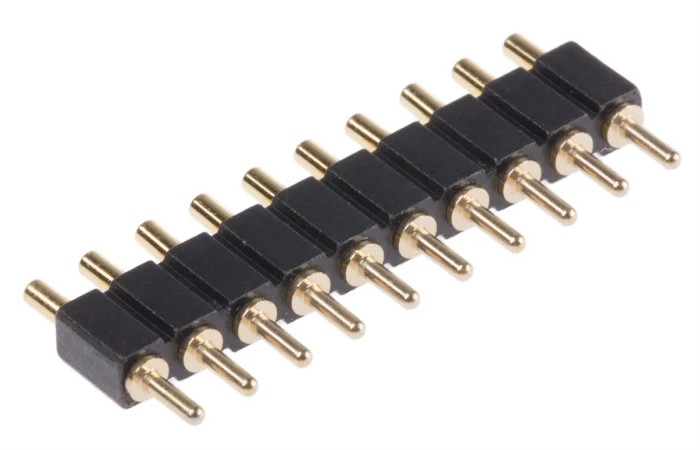

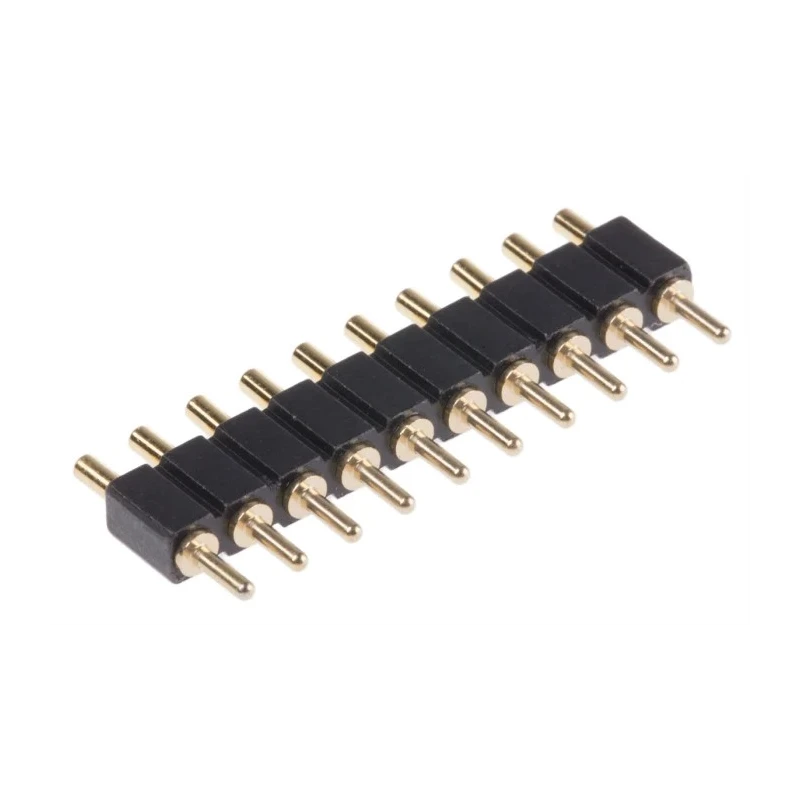

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector 10 Contacts 2.54 mm Pitch 1 Row 811-S1-010-10-016101

Preci-Dip 811-S1-010-10-016101 Spring Loaded Connector is a premium PCB connector designed for high reliability in industrial, electronic, and manufacturing assemblies. Featuring 10 male contacts arranged in a single row with 2.54 mm pitch, this connector supports through hole mounting, making it ideal for printed circuit boards requiring durable and stable electrical connections.

The contact material is brass with gold plating, ensuring excellent conductivity and corrosion resistance. The connector housing is composed of fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and insulation. The shrouded design protects delicate contacts during handling and operation.

Electrical ratings include a current capacity of 3.5 A and a voltage rating of 150 V, suitable for a variety of controlled electronic and power distribution applications. It operates safely within a wide temperature range from -55°C up to 125°C, making it suitable for challenging environments requiring thermal stability.

The innovative spring-loaded contacts guarantee low, stable electrical resistance values even during vibration or movement, thus assuring reliable multipoint electrical connection without micro-discontinuities. The plunger stroke length is precisely engineered to maintain optimal contact performance.

This connector is widely used in electronic component assembly, industrial machinery, instrumentation, communication equipment, and laboratory devices. It provides an excellent alternative to conventional connectors by combining ease of assembly with exceptional performance.

Designed for through hole mounting ensuring robust PCB integration. Features shrouded design for enhanced durability and protection. Constructed with brass contacts plated in gold for optimal conductivity. Supports current up to 3.5 A with voltage rating of 150 V.

Operating temperature ranges from -55°C to 125°C for versatile application. Spring-loaded contacts provide low and stable resistance even under vibration. Plastic housing made from fibreglass reinforced polyethylene terephthalate ensures mechanical strength.

Compact 2.54 mm row pitch fits standard PCB configurations. Contact gender is male, terminated via soldering for secure electrical connection.

Preci-Dip connectors are engineered in Switzerland, reflecting high quality and precise manufacturing standards. This product complies with UL 94V-0 flame retardant specifications, enhancing safety in electronic assemblies.
