Preci-Dip 802 Series Straight Surface Pin Header 16 Contacts 2.54 mm Pitch 2 Row Unshrouded 802-80-016-30-480101

Free Delivery in India | Lowest Global Shipping Charges

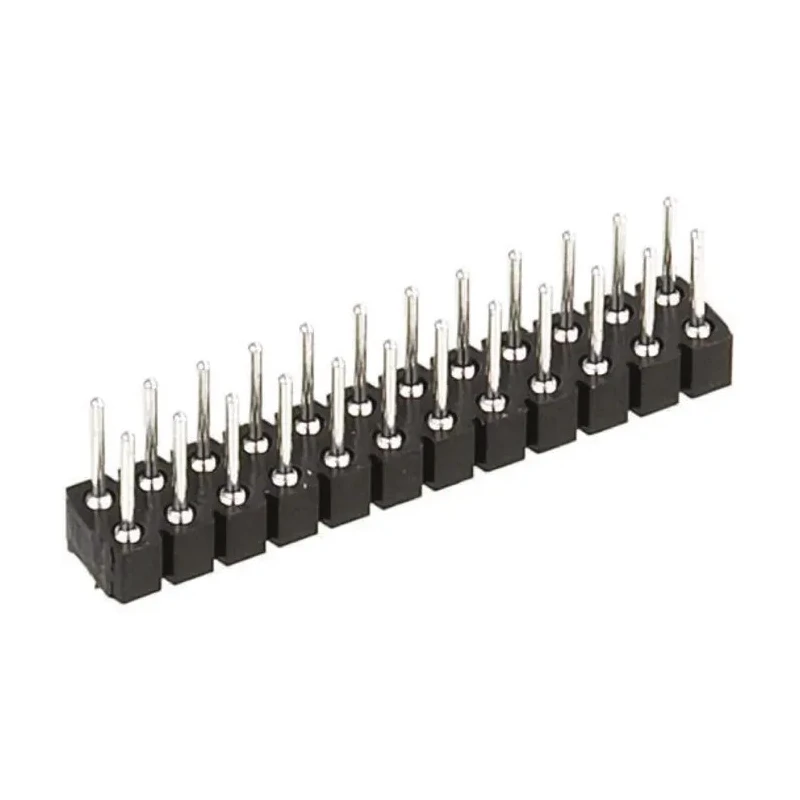

Preci-Dip 802 Series Straight Surface Pin Header 16 Contacts 2.54 mm Pitch 2 Row Unshrouded 802-80-016-30-480101

Name: Preci-Dip 802 Series Straight Surface Pin Header 16 Contacts 2.54 mm Pitch 2 Row Unshrouded 802-80-016-30-480101
Brand: Preci-Dip
SKU: 215253
Price: 2.63 USD
Availability: InStock



Category PCB Headers Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	3A
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	802
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

The pin header is designed for surface mounting applications.
It has a current rating of 3 amperes with 150 V voltage rating.
Contact material is brass with tin plating for reliable conductivity.
Housing material is fibreglass reinforced polyethylene terephthalate for durability.
The connector is unshrouded and has a straight orientation with male contacts.
Minimum operating temperature is -55°C and maximum is 125°C, suitable for harsh environments.
The termination type is solder, suitable for secure PCB connections.
Manufactured in Switzerland ensuring high quality standards.

Product Description

Preci-Dip 802-80-016-30-480101 802 Series Straight Surface Pin Header features 16 male contacts arranged in two rows with a 2.54 mm pitch, specifically designed for surface mount PCB applications. The header is unshrouded, providing easy access for soldering and assembly in various electronic component connections.

This pin header supports a continuous current of 3 amperes and withstands a voltage of up to 150 V, meeting industrial electronic component standards. The contact pins are made from brass and plated with tin to ensure stable electrical conductivity and corrosion resistance. The housing is constructed from fibreglass reinforced polyethylene terephthalate, offering excellent mechanical strength and thermal stability.

Operating reliably in temperatures from -55°C up to 125°C, this header is suitable for demanding environments in industrial electronics, automation, telecommunications, and manufacturing assembly lines. The solder termination type facilitates firm and durable PCB mounting. The straight orientation supports easy connection with compatible ribbon cables or connectors.

Manufactured in Switzerland with the high precision and quality standards typical of Preci-Dip connectors, the 802 Series ensures durability, performance, and reliability in your PCB connector applications.

The header supports 16 male contacts arranged in two rows. It has a 2.54 mm pitch providing standard spacing for PCB integration. The pin contacts are brass with tin plating for durability. Housing material offers high thermal and mechanical resilience.

Current rating of 3 A and voltage rating of 150 V. Designed for surface mount with solder termination. Operating temperature range from -55°C to 125°C. Unshrouded design facilitates access in tight assembly setups.

Ideal for use in industrial electronics, automation, laboratory equipment, and telecommunications systems requiring reliable PCB connection components. Browse the Electronics & Electricals > Connectors > PCB Headers category at EnvMart for more professional connector solutions.
