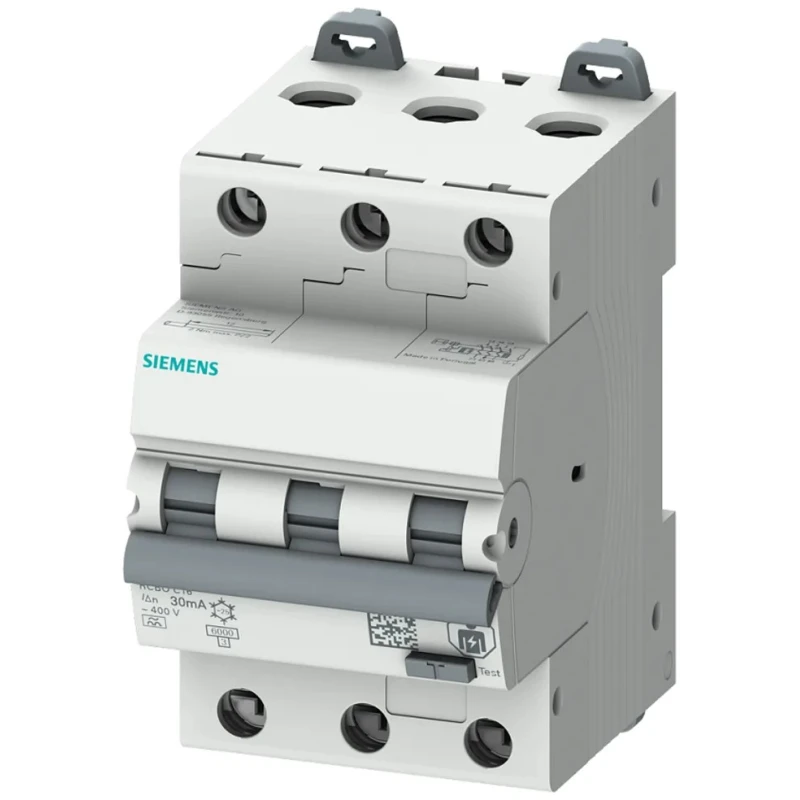

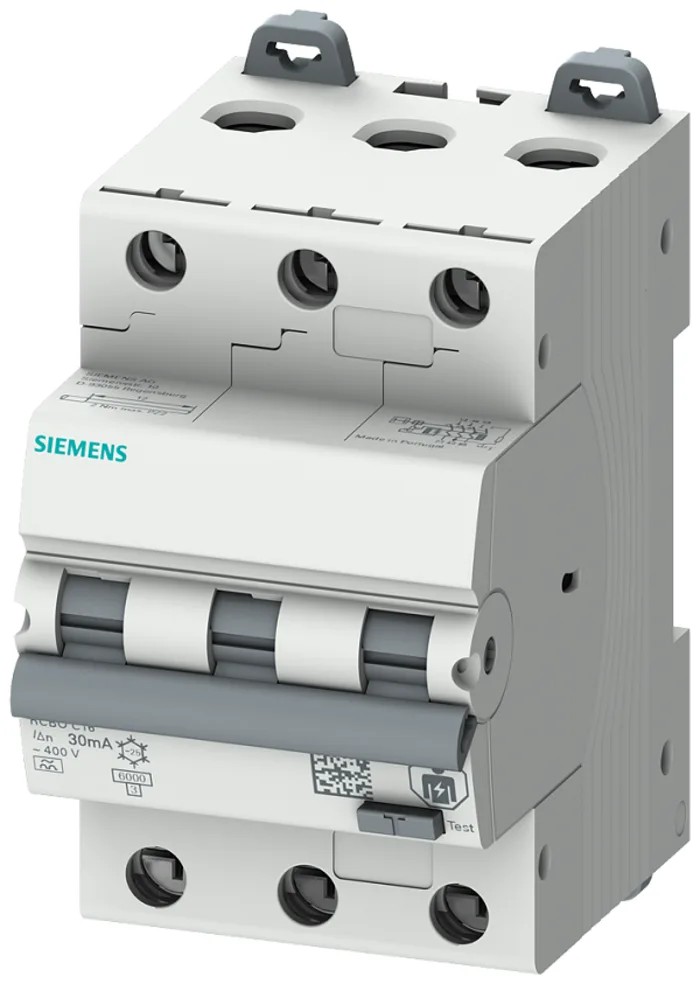

Siemens Residual Current Circuit Breaker with Overload Protection, 10A, 3-Pole, 400V AC, 300mA Trip 5SU1636-7FP10

Siemens 5SU1636-7FP10 Residual Current Circuit Breaker with Overload Protection is designed to deliver superior electrical safety by combining residual current protection and overload detection, making it suitable for both industrial and commercial power distribution systems. This device is engineered to operate reliably in demanding environments, helping safeguard circuits and personnel from faults and hazardous conditions.

With a current rating of 10A and a 3-pole configuration, the RCBO is optimized for protection in three-phase systems operating at 400V AC. Its 300mA trip sensitivity ensures prompt detection and isolation of leakage currents before dangerous situations develop, reducing the risk of electrocution and equipment damage. The breaker is equipped with Type C tripping characteristics, making it ideal for circuits with moderate inrush currents, such as lighting or HVAC loads.

Provides residual current and overload protection for enhanced safety. Rated for 10A current and 3-pole configuration, compatible with 400V AC systems. Offers 300mA trip sensitivity and Type C tripping characteristics. Mounts securely to DIN rails; lever actuator for easy reset.

Breaking capacity of 6kA ensures robust performance. Screw terminal type for simple and secure wiring connections. Compact dimensions: 72mm depth, 54mm width, 85mm height. Halogen and silicon free, supporting extended product life.

Class A residual current detection for reliable operation.

Constructed to meet standards EAC and CE, the RCBO features an actuator lever for straightforward resetting after tripping, and screw-type terminals that facilitate secure wiring during installation. The compact build - measuring 72mm in depth, 54mm in width, and 85mm in height - ensures compatibility with modern electrical panels while supporting space-efficient layouts.

Designed for applications in power distribution panels, automated control systems, and facility protection, the Siemens RCBO contributes to extended product life, thanks to its halogen-free and silicon-free construction. The device meets requirements for pollution degree 3, overvoltage category III, and carries a breaking capacity of 6kA, attesting to its robustness and reliability in protecting electrical infrastructure.

This Residual Current Circuit Breaker is suitable for installation in manufacturing plants, laboratories, HVAC systems, commercial buildings, and industrial setups where enhanced protection is demanded. It supports sustainability by extending service life and reducing maintenance needs.
