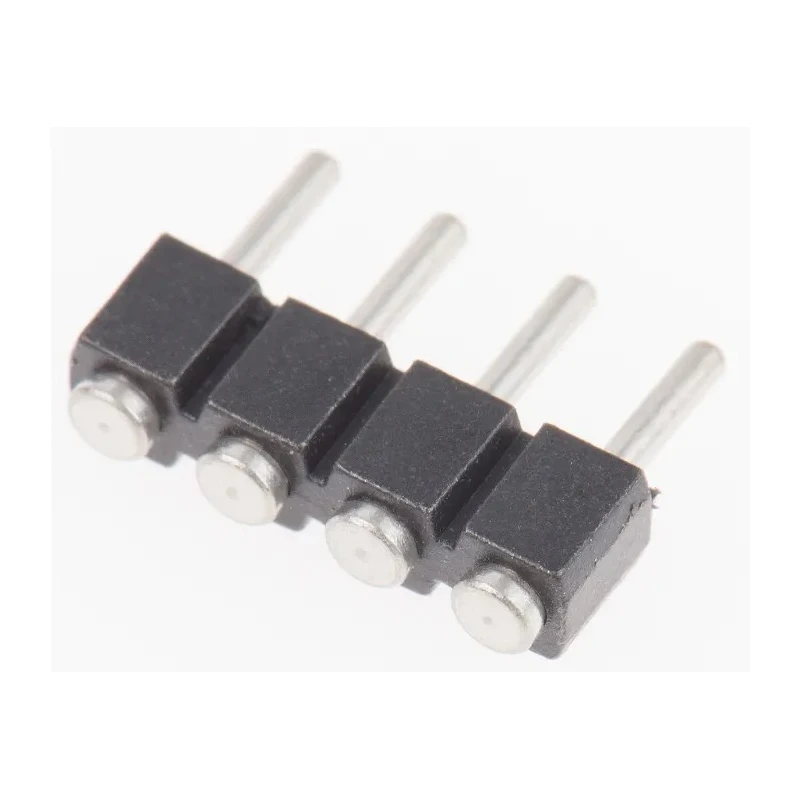

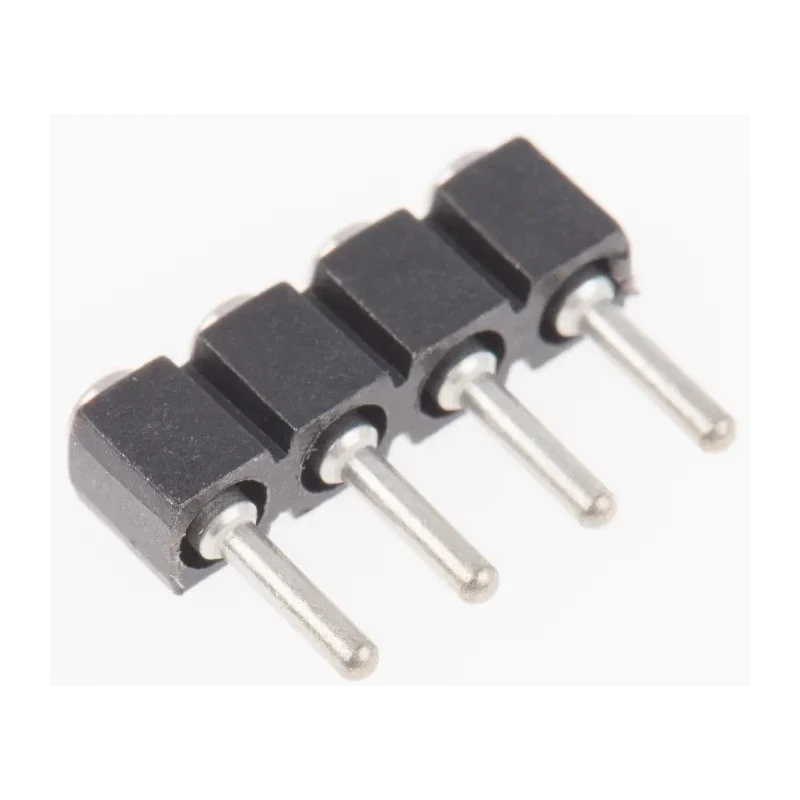

Preci-Dip 800 Series Straight Surface Pin Header 4 Contact 2.54 mm Pitch 1 Row Unshrouded 800-80-004-30-480101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 800 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- The pin header features a straight orientation fitting surface mount applications.
- Contact material is brass with tin plating ensuring corrosion resistance.
- Housing is made from fibreglass reinforced polyethylene terephthalate for durability.
- It supports a current rating of 3A and voltage rating up to 150V.
- Operating temperature ranges from -55°C to 125°C allowing usage in diverse environments.
- Termination type is solder, suitable for PCB assembly processes.
- The product is male contact gender and unshrouded for easy access and soldering.
Product Description
Preci-Dip 800-80-004-30-480101 Straight Surface Pin Header is a high-quality connector designed for printed circuit board applications. This pin header has 4 contacts arranged in a single row with a 2.54 mm pitch, supporting robust electronic connections.
The unshrouded design provides easy solder tail access for mounting onto PCBs in surface mount configurations. The contacts are made of brass with tin plating to provide excellent conductivity and protection against corrosion.
The housing is constructed from fibreglass reinforced polyethylene terephthalate, offering mechanical strength and thermal stability. Operating temperatures range from -55°C to 125°C, making this pin header suitable for industrial, commercial, and electronic manufacturing environments.
It is rated for a current of 3A and can operate at voltages up to 150V. With a straight orientation and solder termination, it is ideal for creating reliable PCB connections in various assemblies.
The Preci-Dip 800 Series connectors comply with safety standards including UL 94V-0. This product is made in Switzerland and is supplied new, ensuring high quality and reliability for electronics manufacturing and prototyping.
The pin header features a straight orientation fitting surface mount applications. Contact material is brass with tin plating ensuring corrosion resistance. Housing is made from fibreglass reinforced polyethylene terephthalate for durability.
It supports a current rating of 3A and voltage rating up to 150V. Operating temperature ranges from -55°C to 125°C allowing usage in diverse environments. Termination type is solder, suitable for PCB assembly processes. The product is male contact gender and unshrouded for easy access and soldering.
Explore the complete range of PCB Pin Headers and connectors at EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a current rating of 3A.
It has a voltage rating of up to 150V.
The operating temperature ranges from -55°C to 125°C, allowing for use in diverse environments.
The contacts are arranged with a pitch of 2.54 mm.
The contacts are made of brass with tin plating, while the housing is constructed from fibreglass reinforced polyethylene terephthalate.
This model features 4 contacts arranged in a single row.
It uses solder termination, making it suitable for PCB assembly processes.
This pin header is unshrouded, providing easy access for soldering.
The connector features a straight orientation for surface mount applications.
It is manufactured in Switzerland.
The contacts on this pin header are male.
It is suitable for industrial, commercial, and electronic manufacturing environments due to its robust specifications.
