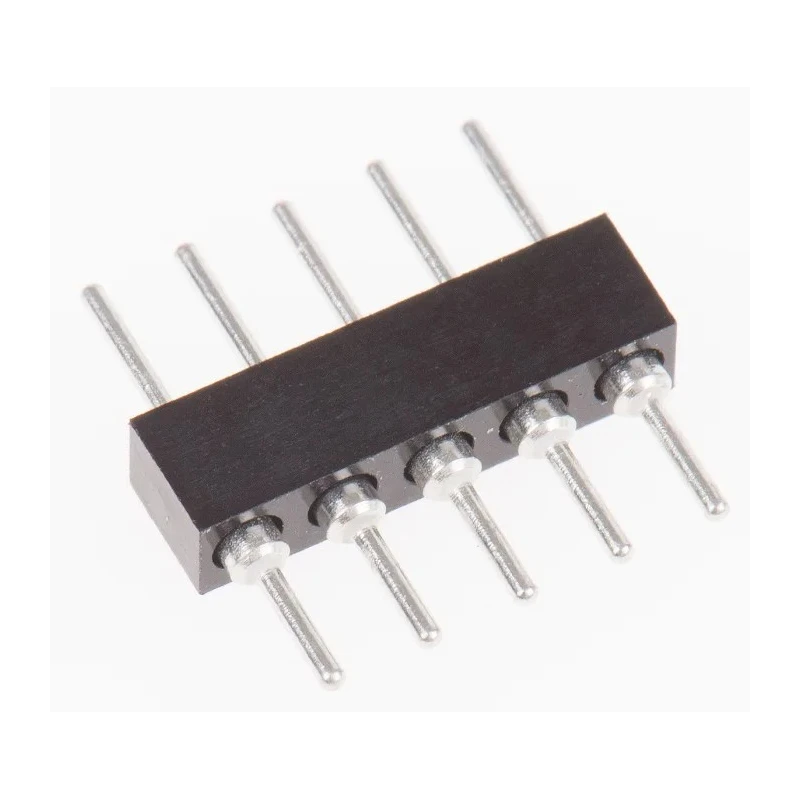

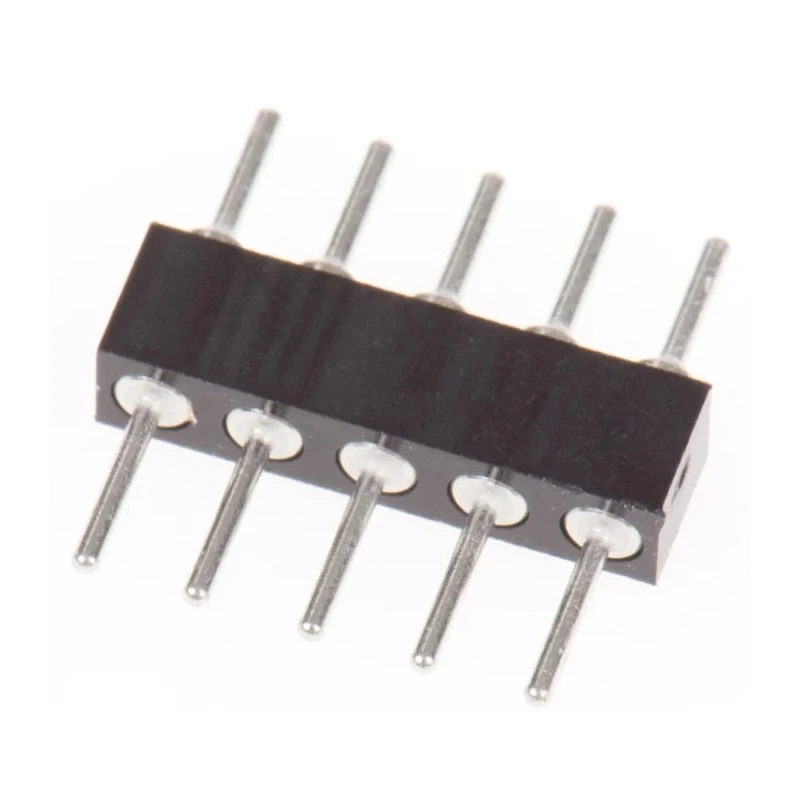

Preci-Dip 830 Series Straight Through Hole Pin Header 5 Contacts 2 mm Pitch 1 Row Unshrouded 830-80-005-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features straight orientation with through hole mount type for secure installation.
- Constructed with brass contacts plated with tin for excellent conductivity and corrosion resistance.
- Designed with fibreglass reinforced polymer housing for durability and electrical insulation.
- Supports a maximum current of 3A and maximum operating voltage of 150V.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Complies with UL 94V-0 flame retardant standard ensuring safety in applications.
- Provides male contact gender and solder termination type for ease of assembly.
- Manufactured in Switzerland ensuring high-quality standards.
Product Description
Preci-Dip 830-80-005-10-001101 Straight Through Hole Pin Header offers high-reliability connection solutions suitable for industrial, electronics manufacturing, and laboratory PCB applications. The 5-contact, 2 mm pitch design with 1 row supports efficient space utilization while maintaining robust electrical connections. Its unshrouded design allows for easy solder tail through hole mounting providing a secure interface for printed circuit boards.
The housing is made from fibreglass reinforced polymer which delivers excellent mechanical strength and electrical insulation. The contacts are crafted from brass and plated with tin to ensure consistent conductivity and corrosion resistance over extended operational periods. This component supports a 3A current rating with a maximum voltage of 150V, covering a wide range of electronic circuit requirements.
Engineered to operate in harsh environments, it sustains functionality from -55°C minimum to 125°C maximum, complying with the stringent UL 94V-0 standards for flame retardancy. The solder termination type and male contact configuration facilitate straightforward assembly and reliable electrical contacts.
This connector series is ideal for use in electronic devices, communication equipment, industrial automation hardware, and instrumentation. Its Swiss manufacturing origin guarantees precise construction and quality assurance.
Features straight orientation with through hole mount type for secure installation. Constructed with brass contacts plated with tin for excellent conductivity and corrosion resistance. Designed with fibreglass reinforced polymer housing for durability and electrical insulation.
Supports a maximum current of 3A and maximum operating voltage of 150V. Operates reliably in temperatures ranging from -55°C to 125°C. Complies with UL 94V-0 flame retardant standard ensuring safety in applications. Provides male contact gender and solder termination type for ease of assembly.
Manufactured in Switzerland ensuring high-quality standards. Explore the full range of PCB Headers and connectors on EnvMart for optimized electronics production and design integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A.
It has a maximum operating voltage of 150V.
The contacts are made of brass and plated with tin, while the housing is constructed from fibreglass reinforced polymer.
It features a 2mm pitch design with 5 contacts.
It operates reliably in temperatures ranging from -55°C to 125°C.
This pin header utilizes a solder termination type for ease of assembly.
This model is designed as an unshrouded pin header.
It features a straight orientation for installation.
It complies with the UL 94V-0 flame retardant standard, ensuring safety in applications.
This model has 1 row of contacts.
It is manufactured in Switzerland, ensuring high-quality standards.
It is suitable for industrial, electronics manufacturing, and laboratory PCB applications.
