Preci-Dip 800 Series Right Angle Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-005-20-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 800 Series Right Angle Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-005-20-001101

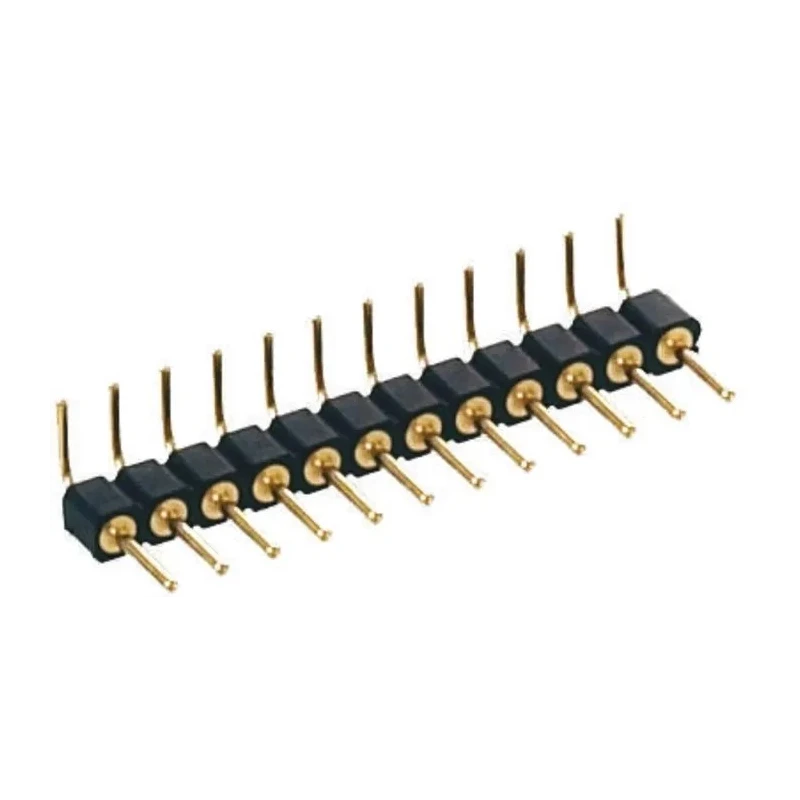

Name: Preci-Dip 800 Series Right Angle Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-005-20-001101
Brand: Preci-Dip
SKU: 215204
Price: 1.15 USD
Availability: InStock



Category PCB Headers Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	800
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

Rated for 3 amperes current and 150 volts.
Features unshrouded, right angle orientation with through hole mount type.
Constructed with brass contacts plated with tin for durability.
Housing made of fibreglass reinforced polyethylene terephthalate provides heat resistance.
Operates within temperature range of -55°C to 125°C.
Designed for male contact gender with solder termination.
Compact design with 2.54 mm pitch and 1 row configuration.
Made in Switzerland ensuring high manufacturing standards.

Product Description

Preci-Dip 800-80-005-20-001101 800 Series Right Angle Through Hole Pin Header is a high-quality PCB connector designed for precise and durable electronic connections. This pin header features 5 contacts arranged in a single row with an industry-standard 2.54 mm pitch, making it suitable for various electronic assembly applications.

The contact material is brass plated with tin to provide excellent conductivity and corrosion resistance. Its housing is made from fibreglass reinforced polyethylene terephthalate, offering mechanical strength and thermal stability. Operating temperature ranges from -55°C to 125°C, ensuring reliable performance in demanding environments.

This unshrouded, right angle through hole mount pin header supports a current rating of 3A and voltage rating of 150V, meeting the needs of many industrial, laboratory, and commercial electronic devices. The solder termination type facilitates secure PCB assembly and durability.

The 800 Series connectors from Preci-Dip are known for their consistent quality and compliance with industry standards, though this specific model does not list additional certifications.

Rated for 3 amperes current and 150 volts. Unshrouded right angle orientation with through hole mounting. Brass contacts with tin plating for enhanced conductivity. Fibreglass reinforced polyester housing for durability and heat resistance.

Operating temperature range of -55°C to 125°C. Male contact gender with solder termination. Standard 2.54 mm pitch with single row design. Manufactured in Switzerland ensuring high quality.

This pin header is ideal for use in electronic manufacturing, laboratory instrumentation, industrial controls, and other applications requiring robust and reliable PCB connections. The standardized dimensions and robust materials ensure ease of integration in electronic assemblies and long-term operational stability.

Explore the full range of Preci-Dip PCB connectors and headers available at EnvMart for your electronic component needs.

Explore more products in our PCB Headers category.
