Bopla Euromas Series Light Grey Light Grey Lid Polycarbonate Enclosure IP66 IK07 35mm x 65mm x 50mm 02206000

Free Delivery in India | Lowest Global Shipping Charges

Bopla Euromas Series Light Grey Light Grey Lid Polycarbonate Enclosure IP66 IK07 35mm x 65mm x 50mm 02206000

Name: Bopla Euromas Series Light Grey Light Grey Lid Polycarbonate Enclosure IP66 IK07 35mm x 65mm x 50mm 02206000
Brand: Bopla
SKU: 201117
Price: 18.73 USD
Availability: InStock



Category General Purpose Enclosures Brand Bopla Condition New

Specifications

Country of Origin	Romania
Brand	Bopla
Body Material	Polycarbonate
Model	02206000
IP Rating	IP66
Gross Weight	51g
Series	Euromas
External Width	50mm
External Height	35mm
Standards/Approvals	RoHS Compliant
Flammability Rating	UL 94 V2
External Length	65mm
Lid Colour	Light Grey
IK Rating	IK07
Gasket Material	Polychloroprene
Two lid choices	Grey or Transparent
Bopla Grey Polycarbonate Enclosure, IP66, Grey Lid, 65 x 50 x 35mmBrand	Bopla

Key Features

Manufactured from UV stabilized polycarbonate for enhanced durability.
IP66 rating ensures excellent protection against dust and powerful water jets.
IK07 rating offers mechanical impact resistance for outdoor and industrial applications.
Equipped with a neoprene gasket to ensure watertight sealing.
Includes sunken head lid screws and mounting screws for secure installation.
Flammability rated UL 94 V2, self-extinguishing within 10 seconds.
Can be wall mounted and fitted with mounting panels or DIN rails for internal equipment.
Polycarbonate material is corrosion resistant and suitable for indoor and outdoor use.

Product Description

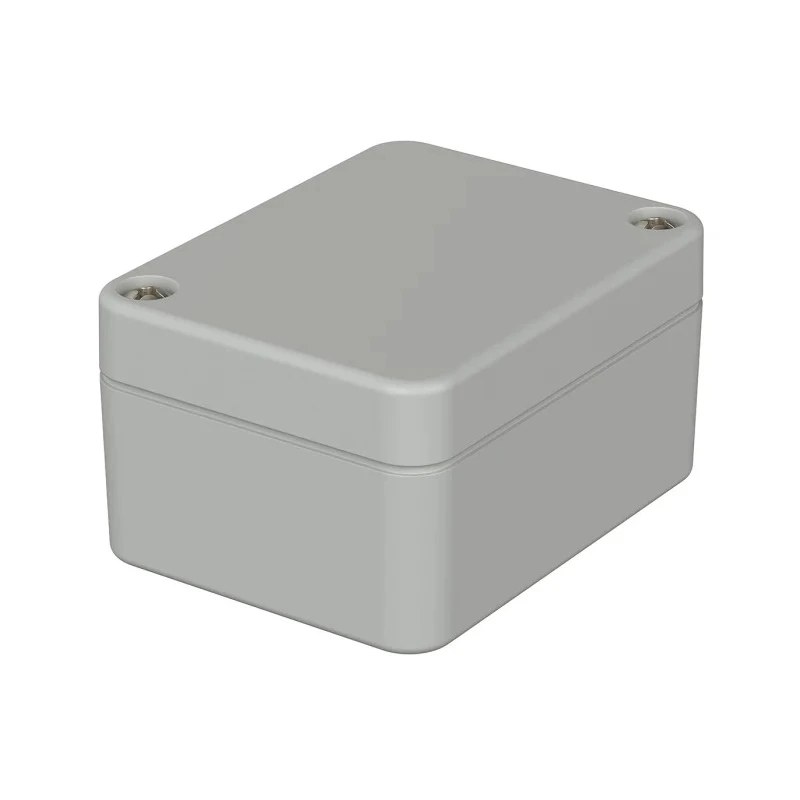

Bopla 02206000 polycarbonate enclosure is part of the Euromas series designed for housing sensitive electronic and electrical components, featuring IP66 and IK07 protection ratings. It measures 35 mm in height, 65 mm in length, and 50 mm in width, finished in a light grey colour (RAL7035).

Constructed from UV stabilised polycarbonate, this enclosure offers durability against environmental stress and corrosion. Its neoprene gasket ensures a watertight seal, making it suitable for both indoor and outdoor applications.

The IP66 rating certifies dust-tightness and protection against powerful water jets, while the IK07 rating provides resistance against mechanical impacts, ideal for industrial, telecommunication, solar power, and food and beverage industries.

The enclosure is supplied with sunken head lid screws and mounting screws, allowing easy wall mounting and the option to install internal mounting panels or DIN rails for component fixation.

Bopla Euromas enclosures are flammability rated UL 94 V2, meaning they are self-extinguishing within 10 seconds after flame removal and do not generate flaming drops, enhancing fire safety.

UV stabilised polycarbonate body offers long-term durability. Neoprene gasket supports IP66 waterproof and dustproof protection. Two lid options available: light grey or transparent for versatile applications. Sunken head screws included for secure assembly.

Suitable for use in industrial, laboratory, telecommunication, solar power, and outdoor environments.

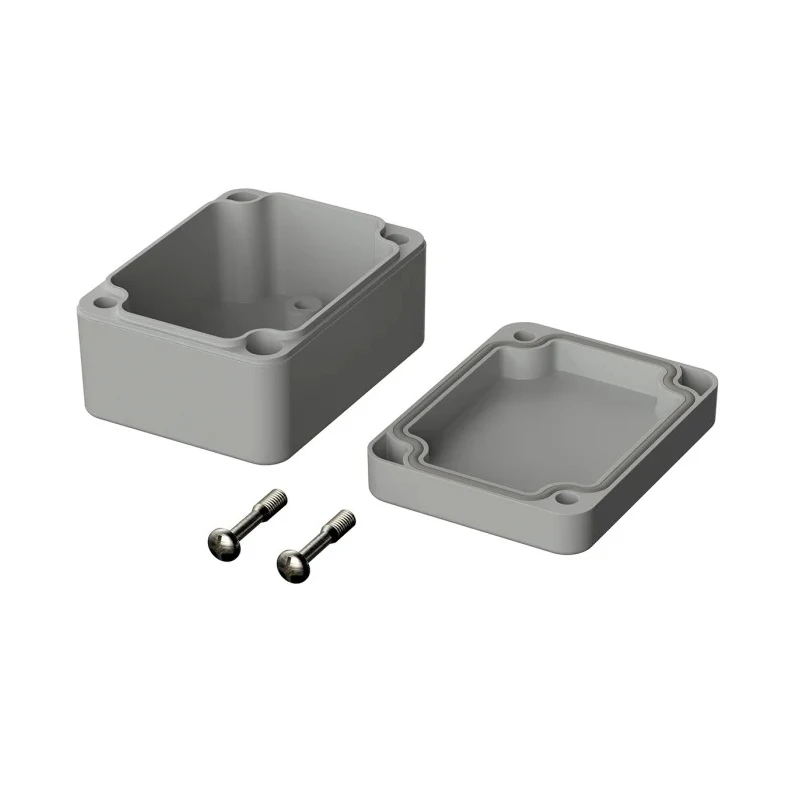

Set contains polycarbonate base, light grey lid, and mounting screws. This robust enclosure solution facilitates secure protection for sensitive electrical components and ensures operational reliability in adverse conditions.

Explore the comprehensive range of Bopla electrical enclosures at EnvMart for reliable industrial and commercial applications.
