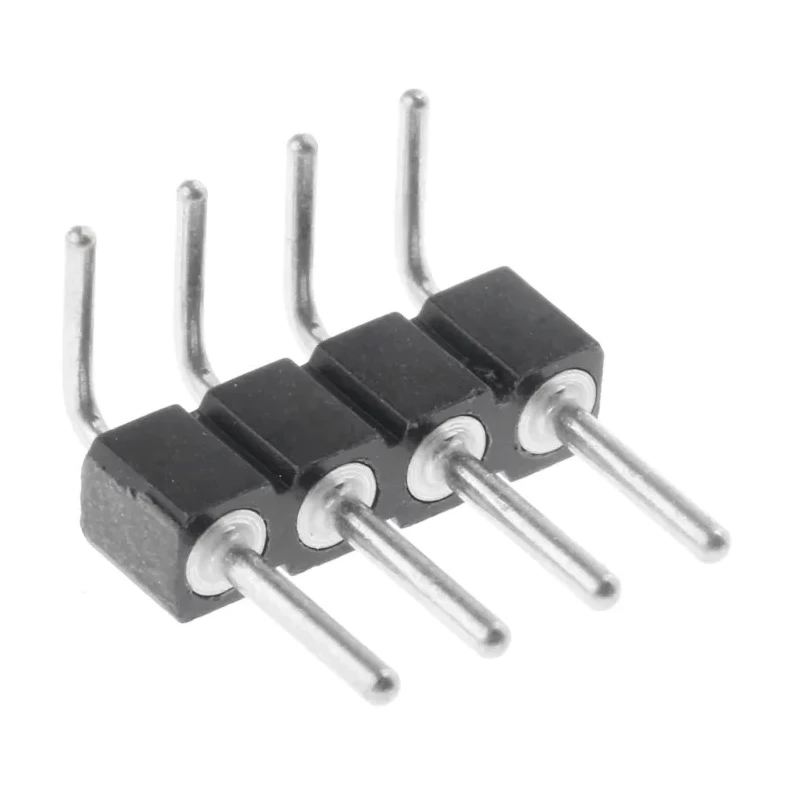

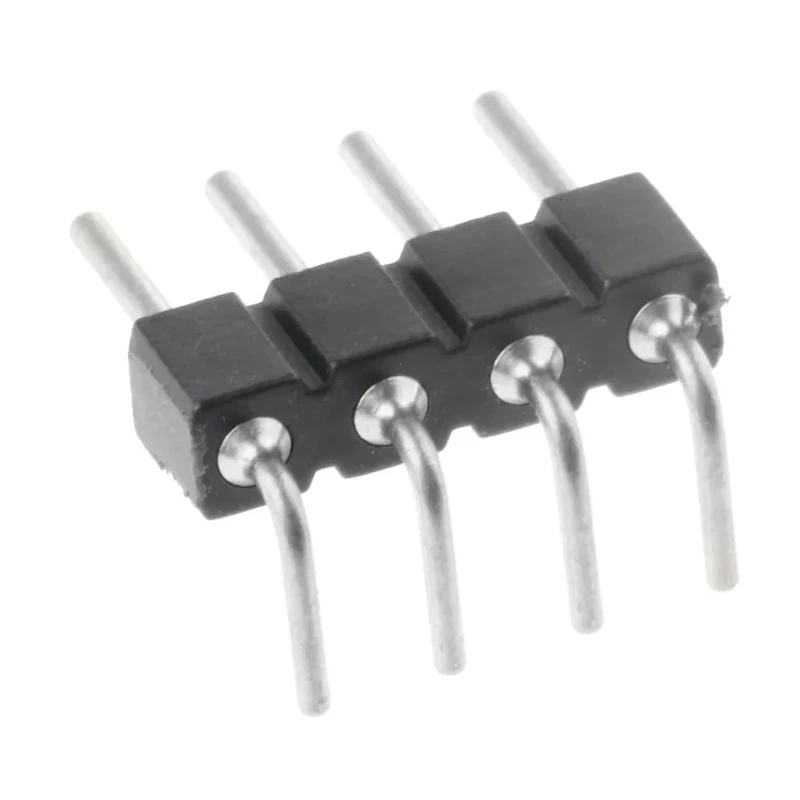

Preci-Dip 800 Series Right Angle Through Hole Pin Header, 4 Contact(s), 2.54 mm Pitch, 1 Row 800-80-004-20-001101

Preci-Dip 800-80-004-20-001101 Right Angle Through Hole Pin Header is a robust PCB connector designed for reliable electronic connections. This pin header features 4 male brass contacts plated with tin, configured in a single row with a standard 2.54 mm pitch suitable for a range of PCB applications. The unshrouded design allows for easy inspection and testing while providing firm mechanical stability through its right angle mounting orientation.

The housing is made from fibreglass reinforced polyethylene terephthalate, a material known for its excellent electrical insulation properties and durability under demanding industrial conditions. This connector operates reliably across a broad temperature range from -55°C to 125°C, making it suitable for various industrial, electronics manufacturing, and power connector applications.

Operating voltage is rated at 150V with a current capacity of 3 amperes, ensuring consistent performance even in moderate power delivery scenarios. The solder termination type and through-hole mount provide a stable physical and electrical interface with printed circuit boards. With a pin diameter of 0.74 mm and tail length of 3.2 mm, these connectors are optimized for easy assembly and sound electrical contact.

Manufactured in Switzerland, the Preci-Dip 800 Series connectors emphasize precision and reliability, often used in professional electronic component assembly lines and industrial equipment. This product does not include shrouding, giving users clear visibility and access to pins but may require careful handling to avoid short circuits.

Unshrouded right angle through hole pin header design supports flexible PCB mounting. Brass contacts offer excellent conductivity with tin plating for corrosion resistance. Fibreglass reinforced polyester housing ensures robustness and insulating performance.

Wide operating temperature range supports diverse environmental conditions. 150V voltage rating and 3A current capacity suit various electronic applications. Standard 2.54 mm pitch and 1-row configuration facilitate compatibility with industry PCB layouts.

Suitable for industrial, laboratory, and manufacturing PCB connector uses. Designed for solder termination to maintain strong mechanical and electrical bonding.
