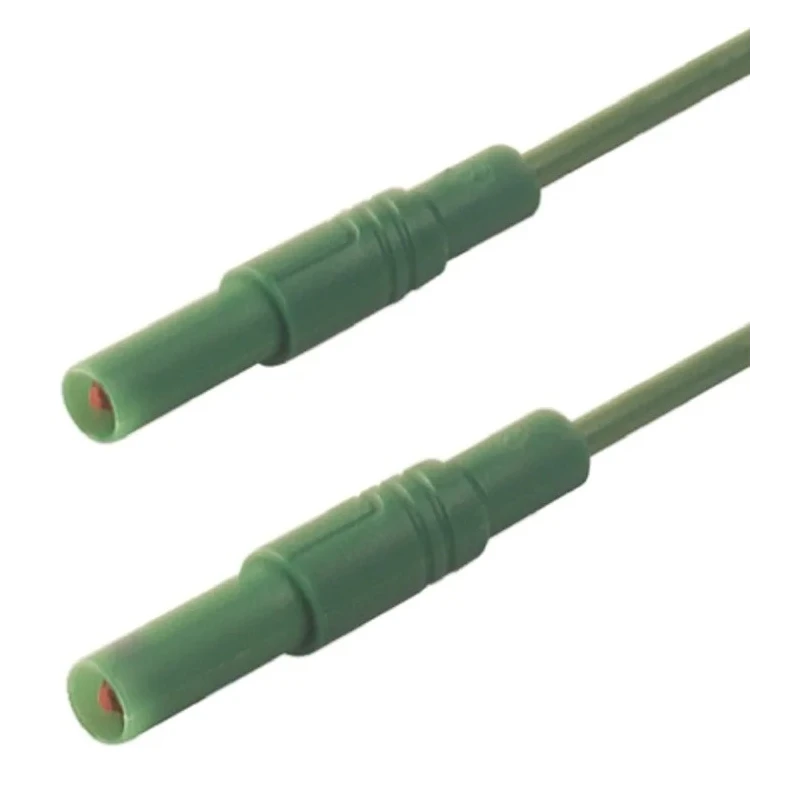

Hirschmann Test & Measurement Connector Test Lead 32A, 1000 V AC/DC, Green, 1 m Lead Length 934075104

Hirschmann Test & Measurement model 934075104 is a premium quality Connector Test Lead designed for electrical testing and measurement tasks. Rated for 32A current and 1000 V AC/DC voltage, this precision test lead ensures safe and reliable connections in demanding industrial and laboratory environments.

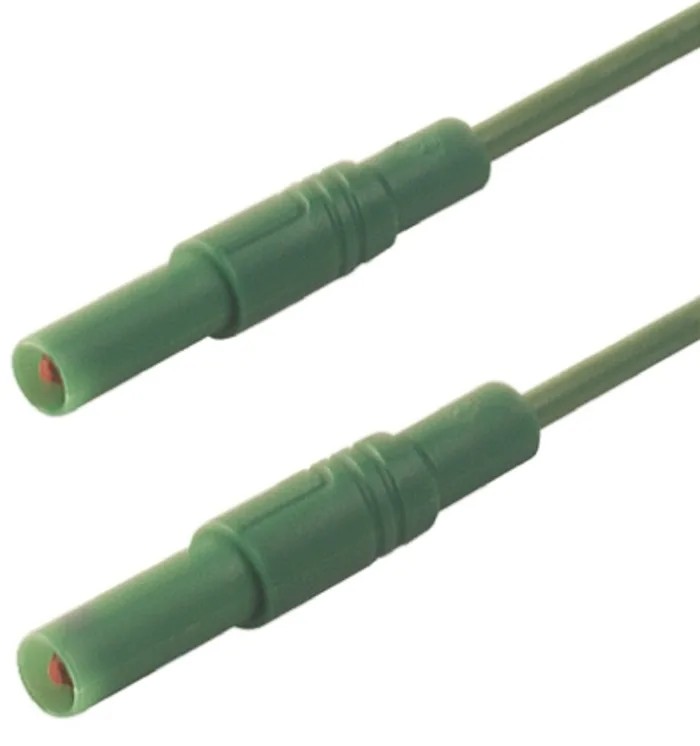

The 1 meter long lead is green in color with straight male connectors on both ends, each connector shrouded for enhanced user protection and compliance with CAT III safety standards. Featuring a 4 mm diameter connector system, the test lead is suitable for a broad range of compatible testing equipment.

Constructed with nickel plated beryllium copper alloy for the contacts, the lead offers excellent conductivity and durability. Its insulation is made from polyvinyl chloride (PVC), providing robust electrical insulation and mechanical flexibility even under temperatures ranging from -15°C to 70°C.

The cable is double insulated with a flexible stranded wire core (320 strands of 0.10 mm) that lowers contact resistance to 12 milliohms, ensuring minimal signal loss during measurements. Additionally, a built-in colored inner core enables easy visual identification of insulation wear or damage to maintain safety during extended use.

This Hirschmann test lead is ideal for electrical test and measurement applications in industrial, commercial, laboratory, and HVAC fields where high safety category levels (CAT III) are required. The lead's resilience and precision make it suitable for routine electrical maintenance, diagnostic testing, and quality control procedures.

The 4 mm connector test lead features straight male connectors on both ends with shrouded safety sleeves. High-quality nickel plated beryllium copper alloy contacts ensure reliable conductivity. The lead is insulated with durable polyvinyl chloride for electrical safety and flexibility.

This CAT III rated test lead operates safely between temperatures -15°C to 70°C. The measuring lead includes a color indicator inner core to detect insulation damage. The highly flexible stranded cable has contact resistance as low as 12 mΩ.

Designed for professional electrical test and measurement applications requiring robust CAT III safety compliance. Explore more high-quality Test Leads and measurement instruments in this category on EnvMart to find compatible items for your application needs.
