| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | PLVA668A,215 |
| Mount Type | Surface |
| Low Noise | approximately 1/10 of conventional series |
| Series | PLVA6xxA |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 5.00 to 6.80 V |
| Package Type | SOT-23 |
| Standards/Approvals | EU/CN RoHS |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 10nA |
| Nominal Zener Voltage Vz | 6.8V |
| Zener Type | Avalanche |
| Typical Voltage Temperature Coefficient | 3.4mV/K |
| Total power dissipation | max. 250 mW |
| Non-repetitive Peak reverse power dissipation | maximal 30 W |
| Very low dynamic impedance at low currents | approximately 1/20 of conventional series |

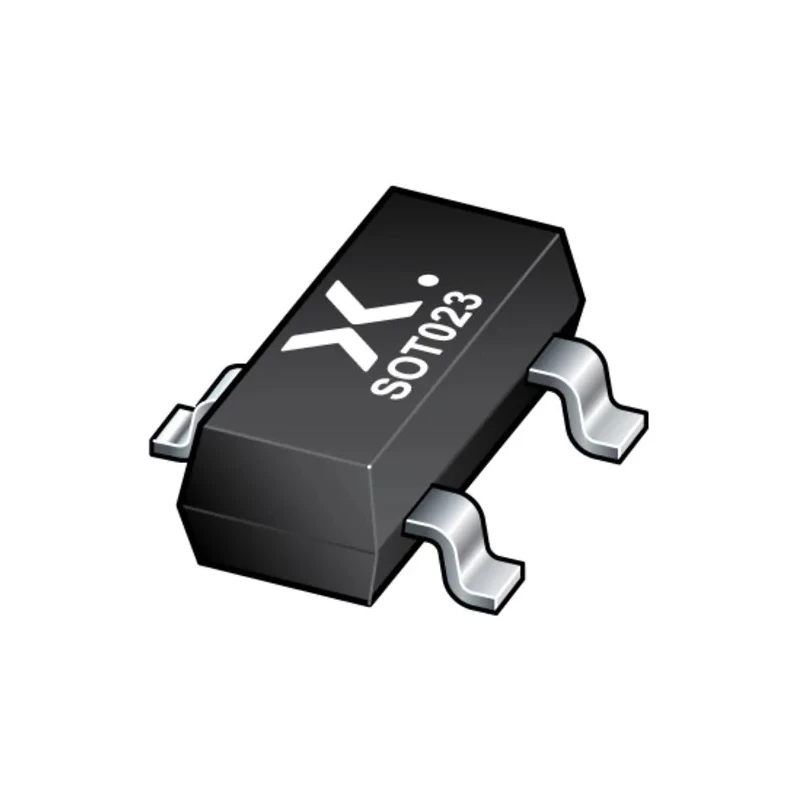

Nexperia PLVA668A,215 is a high-performance, low-voltage avalanche regulator Zener diode designed for surface mounting in compact 3-pin SOT-23 plastic packages. It provides precise voltage regulation with a nominal Zener voltage of 6.8 V and a tolerance of ±3%, making it suitable for sensitive voltage stabilization tasks.
The diode's maximum power dissipation is 250 mW, with a non-repetitive peak reverse power dissipation rated up to 30 W. Its low noise characteristics and very low dynamic impedance contribute to stable operation in electronic circuits. Operating temperature up to 150°C ensures reliability in demanding industrial and automotive environments.
This diode is AEC-Q101 qualified, making it compatible with automotive electronics applications such as voltage limiters, CMOS RAM backup circuits, smoke detector relays, and other low current, low power regulatory functions.
The diode configuration is single element per chip. It features a typical voltage temperature coefficient of 3.4 mV/K. Mount type is surface-mount, optimizing PCB space. Pin count is 3 with a compact SOT-23 package size approximately 3 mm length and 1.1 mm height.
Maximum reverse leakage current of 10 nA helps reduce power loss. Operating voltage range nominally from 5.00 to 6.80 volts with stable avalanche breakdown characteristics.
Ideal for industrial electronics, automotive voltage regulation, and consumer electronics assemblies requiring precise voltage stabilization and noise reduction. Nexperia's PLVA6xxA series ensures consistent performance in harsh operating conditions.
