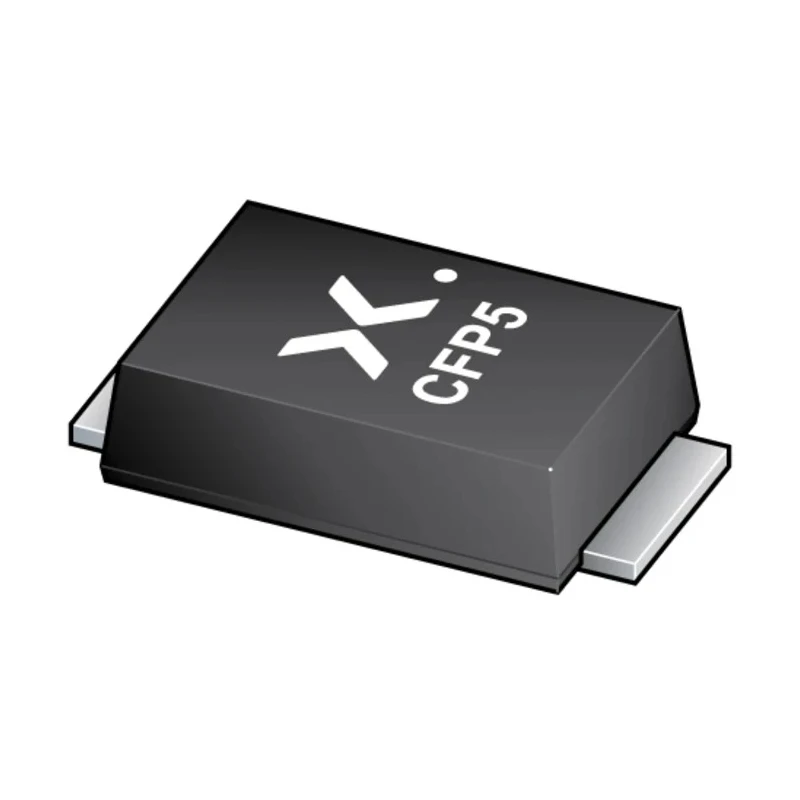

Nexperia Schottky Diode 60 V 4.2 A Surface Mount 2-Pin SOD-128 PMEG6030ELPX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG6030ELPX |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG6030ELP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 4.2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2.1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 670mV |
| Peak Reverse Recovery Time trr | 12ns |
| Average forward current | IF(AV) ≤ 3 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- Provides a maximum continuous forward current of 4.2 A with a voltage rating of 60 V.
- Encapsulated in a small and flat 2-pin SOD-128 surface mount package suitable for space-constrained applications.
- Features a low forward voltage drop of 670 mV, minimizing power loss during conduction.
- Operates reliably over a temperature range from -55°C to 175°C, meeting automotive-grade AEC-Q101 qualification.
- Equipped with an integrated guard ring for stress protection and high surge current tolerance up to 70 A.
- Extremely low leakage current ensures efficiency in power management circuits.
- Peak reverse recovery time of 12 ns enables fast switching performance in high frequency applications.
- Ideal for battery life extension and efficient power conversion applications in automotive, industrial, and consumer electronics.
Product Description
Nexperia PMEG6030ELPX is a high efficiency, medium power Schottky diode designed for surface-mounted applications requiring compact size and reliable performance. It is enclosed in a small SOD-128 plastic package with 2 pins, enabling space saving in compact circuits.
The diode supports a maximum continuous forward current of 4.2 A and a peak reverse repetitive voltage of 60 V, making it suitable for power rectification and voltage clamping in DC low voltage systems. Its low forward voltage of 670 mV lowers conduction losses, improving overall circuit efficiency.
This device is qualified to automotive AEC-Q101 standards, ensuring durability and performance under harsh environmental conditions. Operating temperatures range from -55°C to 175°C, supporting a broad application scope including automotive and industrial electronics.
The diode features a planar MEGA (Maximum Efficiency General Application) technology with integrated guard ring to enhance stress tolerance and surge current capability, rated at 70 A for non-repetitive forward surge. Its extremely low leakage current, down to 340 nA, and a fast peak reverse recovery time of 12 ns make it suitable for high frequency switching applications.
Applications include battery protection, DC/DC converters, power supplies, and general purpose rectification tasks in industrial and consumer electronics. Provides a maximum continuous forward current of 4.2 A. Voltage rating of 60 V supports diverse power circuits.
Low forward voltage of 670 mV for efficient conduction. Automotive AEC-Q101 compliance for high reliability. Compact SOD-128 surface mount package for space saving. High surge current tolerance with 70 A peak forward surge current.
Extremely low leakage current minimises power loss. Fast reverse recovery time of 12 ns for switching applications.
This Nexperia diode exemplifies advanced design for efficiency and reliability in power electronics. It is ideal for use in automotive, industrial, consumer electronics, and telecommunications equipment requiring robust and compact Schottky diode solutions.
Explore more semiconductor components and power rectifiers on EnvMart for your project needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 4.2 A.
This diode has a peak reverse repetitive voltage rating of 60 V.
The SOD-128 package dimensions are 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
The maximum forward voltage drop is 670 mV, which helps minimize power loss during conduction.
It operates reliably over a temperature range from -55°C to 175°C.
The diode can tolerate a peak non-repetitive forward surge current of 70 A.
Yes, it is qualified to automotive AEC-Q101 standards, ensuring reliability in automotive applications.
The peak reverse recovery time is 12 ns, making it suitable for high frequency applications.
The average forward current rating is specified as IF(AV) ≤ 3 A.
This model is designed for surface mounting.
The peak reverse current is rated at 2.1 mA.
It is suitable for applications such as battery protection, DC/DC converters, and power supplies.
