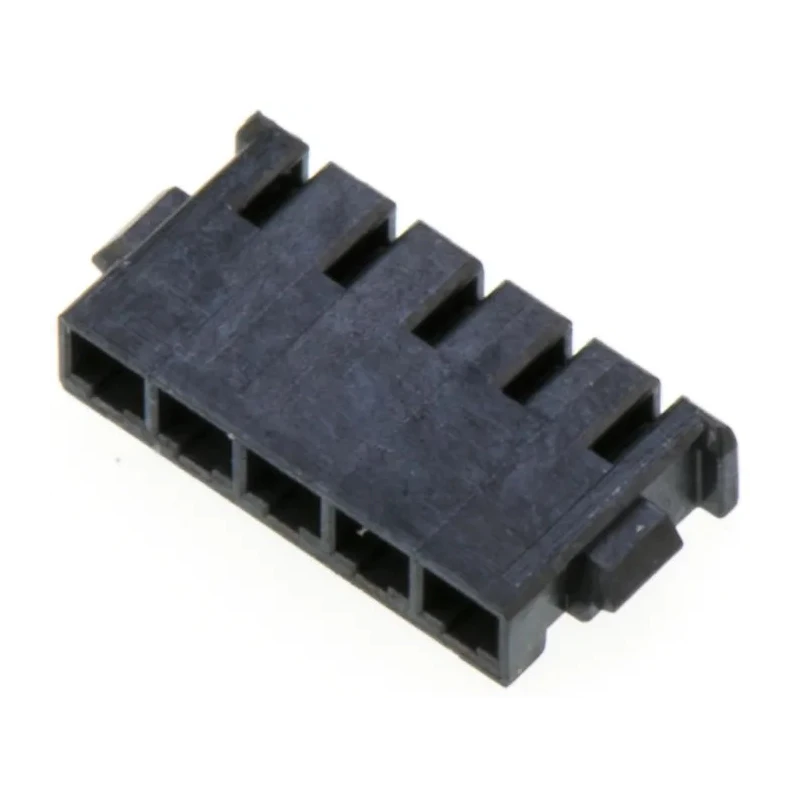

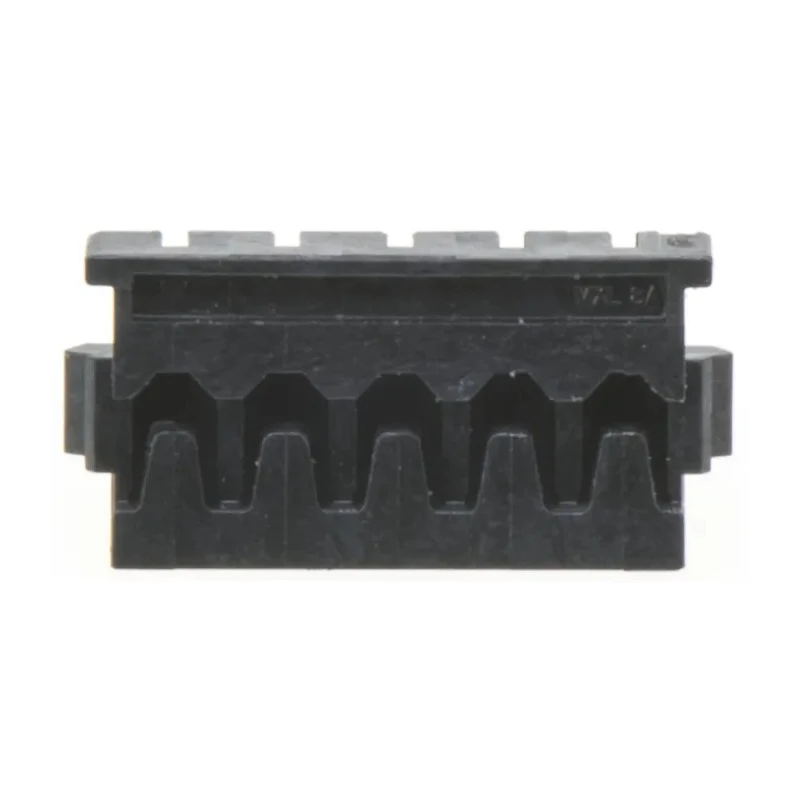

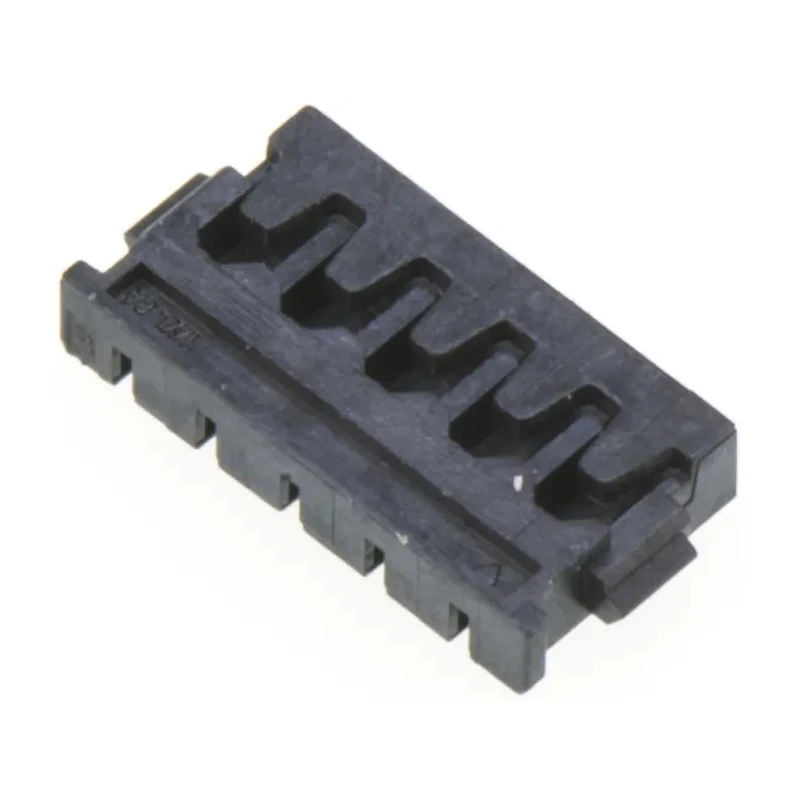

Molex Pico-Ezmate Female Connector Housing 1.2 mm Pitch 5 Way 1 Row Straight 78172-0005

Molex 78172-0005 Pico-Ezmate female connector housing is a precision 1.2 mm pitch, 5 way, 1 row straight wire-to-board connector housing manufactured from high-quality liquid crystal polymer (LCP) with UL 94V-0 flame rating. This housing is engineered for compact electronic applications requiring a reliable, low-profile connection.

Its ultra low profile design with a length of 3.5 mm and a width of 1.3 mm facilitates installation in devices where space is limited, such as mobile phones, notebook PCs, and other portable electronic equipment. The connector housing incorporates multiple safety and convenience features including polarization, keying, friction lock, and an audible click on mating to prevent misconnection and maintain secure engagement during device operation.

The housing is intended for use with Molex Pico-Ezmate wire-to-board connectors and mates vertically with complementary Pico-Ezmate 78171 headers, allowing easy insertion and excellent production line workability. Crimp socket terminals suitable for this housing are also readily available to complete the wire termination process.

This Pico-Ezmate connector housing series is constructed of halogen-free resin material, supporting compliance with European RoHS directives and environmental standards. The product originates from Malaysia, ensuring high manufacturing standards.

Applications span industrial, laboratory, manufacturing, and commercial sectors where reliable tiny connectors are essential for modern electronic devices and instrumentation. This connector housing provides a durable, flame-retardant, and eco-conscious choice for designers and engineers creating high-density circuits in demanding environments.

Provides secure and reliable wire-to-board connection using Pico-Ezmate series 78172 connectors. Features a compact design with a length of 3.5 mm and width of 1.3 mm for space-saving installations. Constructed from black liquid crystal polymer (LCP) material rated UL 94V-0 for excellent flame resistance.

Designed with polarization, keying, friction locking, and audible click mating features for proper assembly assurance. Ideal for compact electronic devices such as mobile phones, notebook PCs, and portable audio players.

Compatible with Pico-Ezmate headers (stock number 700-0820) and crimp socket terminals (stock number 700-0830). Housing mates vertically with PCB headers enabling easy placement in tight packaging environments. The series is halogen-free and RoHS compliant, ensuring eco-friendly and safe usage.
