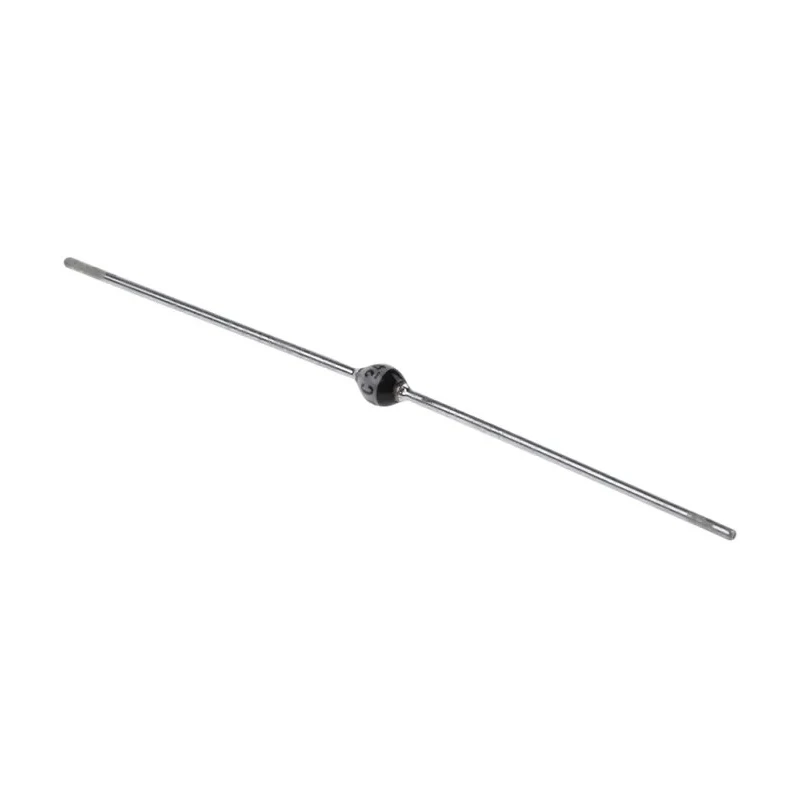

Vishay Zener Diode 24 V Single 3.25 W Through Hole 2-Pin SOD-57 BZT03C24-TAP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.6mm |
| Length | 4mm |
| Model | BZT03C24-TAP |
| Mount Type | Through Hole |
| Series | BZT03 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-57 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 3.25W |
| Diode Configuration | Single |
| Test Current It | 25mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Transient Suppressor |
| Maximum Zener Impedance | 15Ω |
Key Features
- This diode features a through-hole mount with a 2-pin SOD-57 package.
- It has a maximum zener impedance of 15 ohms and test current of 25 mA.
- The maximum reverse leakage current is 1 µA, ensuring minimal leakage under reverse bias conditions.
- Designed for maximum operating temperature of 175°C for reliable performance.
- The device has a small form factor with a height of 3.6 mm and length of 4 mm.
- It is part of the BZT03 series by Vishay Semiconductor, suitable for transient voltage suppression.
Product Description
Vishay BZT03C24-TAP Zener Diode is a reliable semiconductor component designed for voltage regulation and transient suppression in electronic circuits. This single-element diode provides a nominal zener voltage of 24 V and can dissipate up to 3.25 W of power, making it suitable for protecting sensitive components from voltage spikes.
The diode comes in a robust through-hole mount format with a 2-pin SOD-57 package, offering ease of insertion and soldering on PCBs. It supports a test current of 25 mA and features a maximum zener impedance of 15 ohms, ensuring stable voltage regulation performance under specified conditions.
With a maximum reverse leakage current of only 1 µA and an operating temperature limit of 175°C, this diode maintains excellent electrical characteristics even in demanding industrial and commercial applications. Its compact dimensions of 3.6 mm height and 4 mm length offer flexibility for space-constrained designs.
Ideal for use in power and electronic equipment, Vishay's BZT03C24-TAP diode is part of a well-known series recognized for quality and durability. Applications include voltage regulation circuits, transient voltage suppression, and protection of sensitive semiconductor devices.
This diode is a single-element transient suppressor type. The through-hole 2-pin SOD-57 package enables easy PCB mounting. It ensures 24 V zener voltage with ±6% tolerance for precise regulation. Maximum power dissipation rated at 3.25 W supports moderate power applications.
Compact size and high temperature tolerance widen its usability range.
For designers and engineers, Vishay's BZT03C24-TAP offers a dependable component choice in the semiconductor discrete category. Explore more Zener Diodes and semiconductor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 24 V, with a tolerance of ±6%.
This model has a maximum power dissipation rating of 3.25 W, suitable for moderate power applications.
The maximum operating temperature for this diode is 175°C, allowing it to function reliably in demanding environments.
It comes in a through-hole 2-pin SOD-57 package, which facilitates easy insertion and soldering on PCBs.
The maximum reverse leakage current is 1 µA, ensuring minimal leakage under reverse bias conditions.
The test current for this diode is 25 mA, which is essential for its voltage regulation performance.
The maximum zener impedance is 15 ohms, which helps ensure stable voltage regulation.
This diode has a height of 3.6 mm and a length of 4 mm, making it compact and suitable for space-constrained designs.
This diode is a single-element device, designed for specific applications in voltage regulation and transient suppression.
It is part of the BZT03 series by Vishay Semiconductor, recognized for its quality and performance in voltage regulation.
This zener diode is suitable for voltage regulation circuits and transient voltage suppression, protecting sensitive components from voltage spikes.
The diode is manufactured in India, contributing to its availability in various markets.
