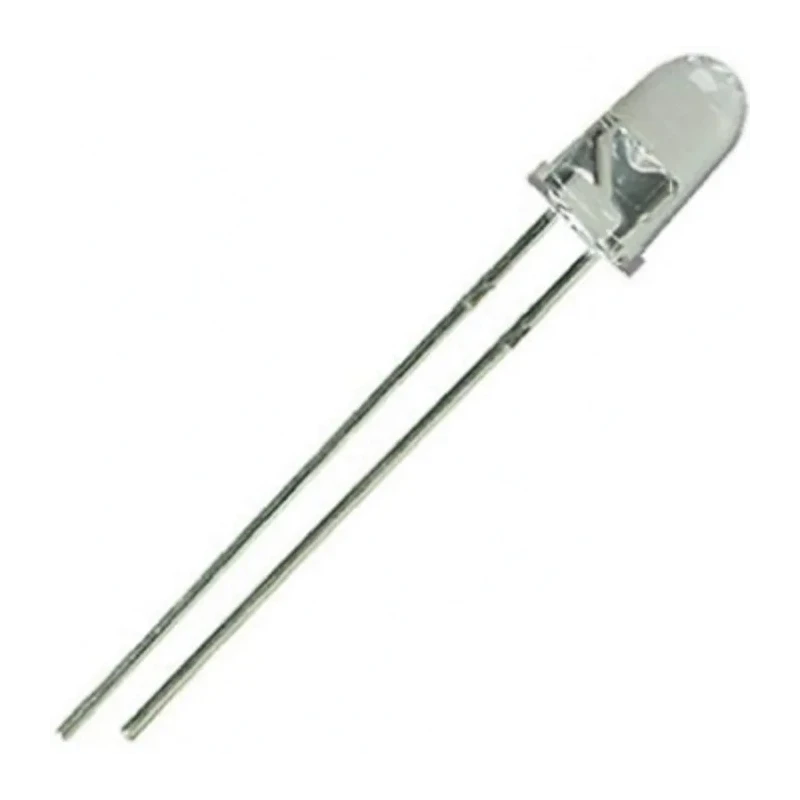

Vishay 830 nm Infrared LED 5 mm Through Hole Package TSHG8400

Vishay TSHG8400 is a high-performance Infrared Light Emitting Diode (IR LED) with a peak wavelength of 830 nm designed in a standard 5 mm through-hole package. It features a clear, untinted plastic round lens housing and is fabricated using GaAlAs semiconductor material, ensuring high radiant power and intensity crucial for reliable IR signal applications.

This IR LED is engineered using double hetero (DH) technology, offering fast response times and superior output performance. It is rated for a maximum supply voltage of 5 V and includes two pins for secure through-hole PCB mounting.

Its narrow 44° angle of half intensity allows focused IR light emission ideal for devices requiring directional IR signals. The device's radiant flux is 50 mW, and radiant intensity reaches 70 mW/sr, providing strong illumination for infrared sensing and communication technologies.

Typical applications include CMOS camera IR illumination, high-speed IR data communication, and smoke alarm fire detection systems. The device is RoHS compliant, ensuring it meets current environmental and safety regulations.

Supplied in bulk packaging, the TSHG8400 supports efficient integration into manufacturing workflows, enabling high volume assembly. This product is intended for industrial, electronic component manufacturing, and laboratory applications where reliable IR LED performance is essential.

Peak wavelength of 830 nm suitable for infrared applications. Standard 5 mm T-1 3/4 through-hole package for easy PCB mounting. High radiant flux of 50 mW delivering strong IR emission. Radiant intensity of 70 mW/sr ensuring effective IR signal transmission.

Clear round lens with a 44° angle of half intensity for focused light output. Utilizes GaAlAs semiconductor material for efficient IR emission. Maximum supply voltage of 5 V compatible with standard electronic circuits. RoHS compliant, meeting environmental and safety standards.

Designed for applications such as CMOS cameras, IR data transmission, and smoke detectors. Packaged in bulk to support manufacturing assembly efficiency. Explore more IR LED products and electronic components with Vishay and EnvMart for diverse industrial and commercial applications.
