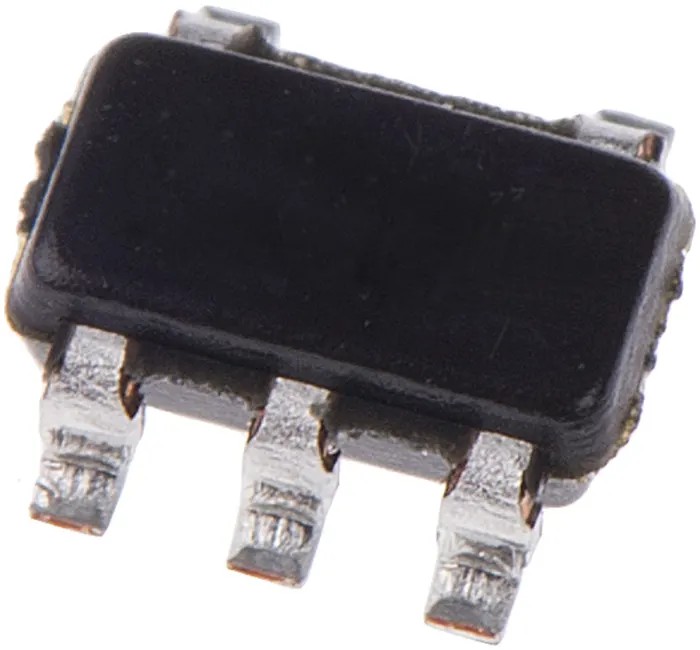

STMicroelectronics Operational Amplifier 10 MHz Gain Bandwidth, 5-Pin SOT-23 Package TSX921ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSX921ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSX921 |
| Output Current | 13mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 19.6V/μs |
| ESD high tolerance | 4 kV (HBM) |
| Gain bandwidth product | 10 MHz typical (16 V) |
| Extended temperature range | -40°C to +125°C |
Key Features
- Offers a gain bandwidth product of 10 MHz, suitable for precise amplification tasks.
- Operates from a low supply voltage of 4 V up to a maximum of 16 V.
- Single channel operational amplifier with 5-pin SOT-23 package for compact PCB integration.
- Features low input bias current of 200 pA and input offset voltage of 5 mV for high accuracy.
- Supports extended operating temperature range from -40°C to +125°C for automotive standards compliance.
- Implements a high slew rate of 19.6 V/μs ensuring rapid output response.
- Low power consumption at approximately 2.8 mA typical (16 V) enhancing energy efficiency.
- High ESD tolerance of 4 kV according to Human Body Model (HBM) for robustness.
Product Description
STMicroelectronics TSX921ILT is a high-performance single-channel operational amplifier designed for demanding industrial and automotive applications. It operates on a wide supply voltage range from 4 V up to 16 V, delivering a typical gain bandwidth product of 10 MHz at 16 V, making it ideal for amplification tasks requiring precise frequency response.
The device features a compact 5-pin SOT-23 surface mount package measuring approximately 3 mm in length, 1.75 mm in width, and 1.3 mm in height, allowing integration in space-constrained printed circuit boards. With a low input bias current of 200 pA and an input offset voltage of 5 mV, the amplifier offers excellent accuracy in signal processing applications.
Its slew rate of 19.6 V/μs provides rapid output voltage changes, suitable for high-speed analog circuitry. The product consumes low power, nominally 2.8 mA per amplifier at 16 V supply, contributing to overall energy efficiency in designs.
The TSX921ILT is rated for operation across an extended temperature range from -40°C to +125°C, meeting automotive qualification through compliance with AEC-Q100 standards, assuring reliable performance under harsh conditions. It also exhibits high electrostatic discharge (ESD) tolerance of 4 kV (Human Body Model), enhancing robustness in industrial environments.
The component complies with RoHS regulations, confirming adherence to environmental and safety norms. This operational amplifier is suited for electronics development in automotive systems, industrial control, instrumentation, and other high-reliability analog circuits.
Offers a gain bandwidth product of 10 MHz, suitable for precise amplification tasks. Operates from a low supply voltage of 4 V up to a maximum of 16 V. Single channel operational amplifier with 5-pin SOT-23 package for compact PCB integration.
Features low input bias current of 200 pA and input offset voltage of 5 mV for high accuracy. Supports extended operating temperature range from -40°C to +125°C for automotive standards compliance. Implements a high slew rate of 19.6 V/μs ensuring rapid output response.
Low power consumption at approximately 2.8 mA typical (16 V) enhancing energy efficiency. High ESD tolerance of 4 kV according to Human Body Model (HBM) for robustness. Compliant with RoHS standards ensuring environmental safety.
Certified to automotive AEC-Q100 standards ensuring quality and reliability for automotive use. Explore more products in the Operational Amplifier category at EnvMart for reliable electronic components optimized for advanced industrial and automotive designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSX921ILT has a typical gain bandwidth product of 10 MHz at a supply voltage of 16 V, making it suitable for precise amplification tasks.
This model operates with a supply voltage range from 4 V to a maximum of 16 V.
The SOT-23 package measures approximately 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
It features a low input bias current of 200 pA, which contributes to its high accuracy in signal processing applications.
The TSX921ILT can operate at a maximum temperature of 125°C, supporting extended temperature ranges for automotive applications.
This operational amplifier has a slew rate of 19.6 V/μs, allowing for rapid output voltage changes.
This unit is a single-channel operational amplifier, designed for various amplification tasks.
The input offset voltage is specified at 5 mV, which aids in maintaining signal integrity.
It has a high ESD tolerance of 4 kV according to the Human Body Model (HBM), enhancing its robustness in various environments.
Yes, it is certified to automotive AEC-Q100 standards, ensuring quality and reliability for automotive applications.
The TSX921ILT complies with RoHS regulations, confirming adherence to environmental and safety norms.
The typical power consumption is approximately 2.8 mA at a 16 V supply, contributing to energy efficiency in designs.
