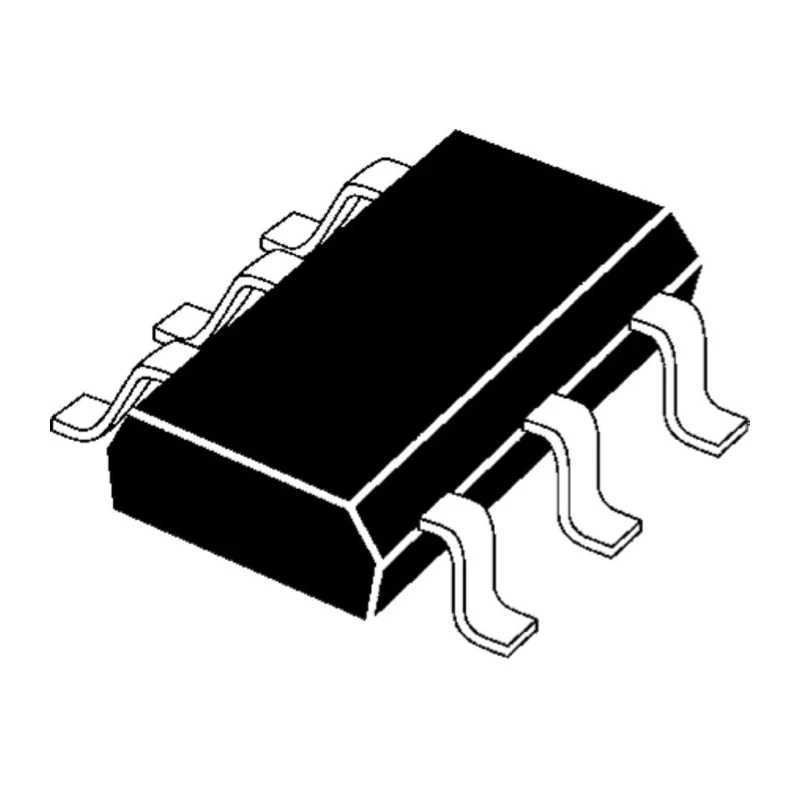

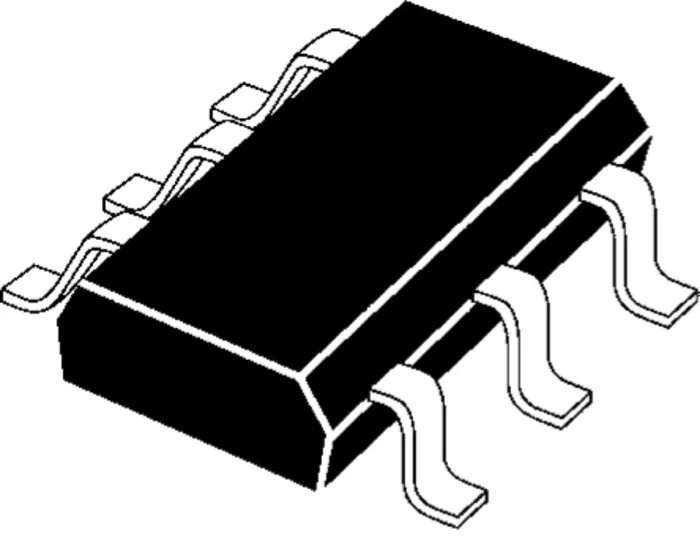

Littelfuse 4-Element Uni-Directional TVS Diode Array 6-Pin SC-70, 7V Breakdown, 4.5A Peak Pulse SP3002-04JTG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.25mm |
| Model | SP3002-04JTG |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | SP3002 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 13V |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 7V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Test Current It | 1μA |
| Maximum Peak Pulse Current Ippm | 4.5A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Features a 6-pin SC-70 surface mount package design.
- Built with ultra low capacitance rail-to-rail diodes suitable for HDMI, DVI, USB2.0, and IEEE 1394 interfaces.
- Offers a minimum breakdown voltage of 7 volts with a maximum reverse stand-off voltage of 6 volts.
- Capable of handling peak pulse currents up to 4.5 amperes during transient events.
- Includes four elements per chip for comprehensive multi-line protection.
- Operates reliably within a temperature range of -40°C to 125°C.
- Maintains low leakage current of 500 nA at 5 volts, ensuring minimal power loss.
- Efficient ESD protection rated for ±12kV contact discharge level.
Product Description
Littelfuse SP3002-04JTG is a 4-element uni-directional TVS diode array supplied in a compact 6-pin SC-70 surface mount package. Designed for protecting sensitive electronic circuits, it features ultra low capacitance rail-to-rail diodes and an integrated zener diode fabricated with proprietary silicon avalanche technology. This design offers a high level of protection against destructive electrostatic discharges, making it suitable for devices that require robust transient voltage suppression.
The array provides a minimum breakdown voltage of 7 volts and a maximum reverse stand-off voltage of 6 volts. It can safely absorb peak pulse currents of up to 4.5 amperes, ensuring reliable transient suppression across high-speed signal lines like HDMI, DVI, USB2.0, and IEEE 1394 interfaces.
Operating over a broad temperature range from -40°C to 125°C, the SP3002-04JTG maintains low leakage current of 500 nA at 5 volts, minimizing power consumption during normal operation. Its compact dimensions (2.25 mm length, 1.35 mm width, 1 mm height) enable space-saving PCB layouts in portable and compact electronic devices.
This diode array is ideal for applications including computer peripherals, mobile phones, PDAs, digital cameras, network hardware, test equipment, and medical equipment where ESD protection is critical to device longevity and performance.
Features a 6-pin SC-70 package for surface mounting. Low capacitance diodes designed for high-speed data line protection. Withstands repetitive ESD strikes without performance degradation. Capable of absorbing transient pulse currents up to 4.5A.
Suitable for industrial, commercial, and consumer electronics protection.
This Littelfuse diode array is made in Thailand and meets the stringent requirements for electrostatic discharge protection in modern electronic systems. Browse EnvMart's catalog for more Littelfuse TVS Diode Arrays for diverse industrial and electronic applications.
