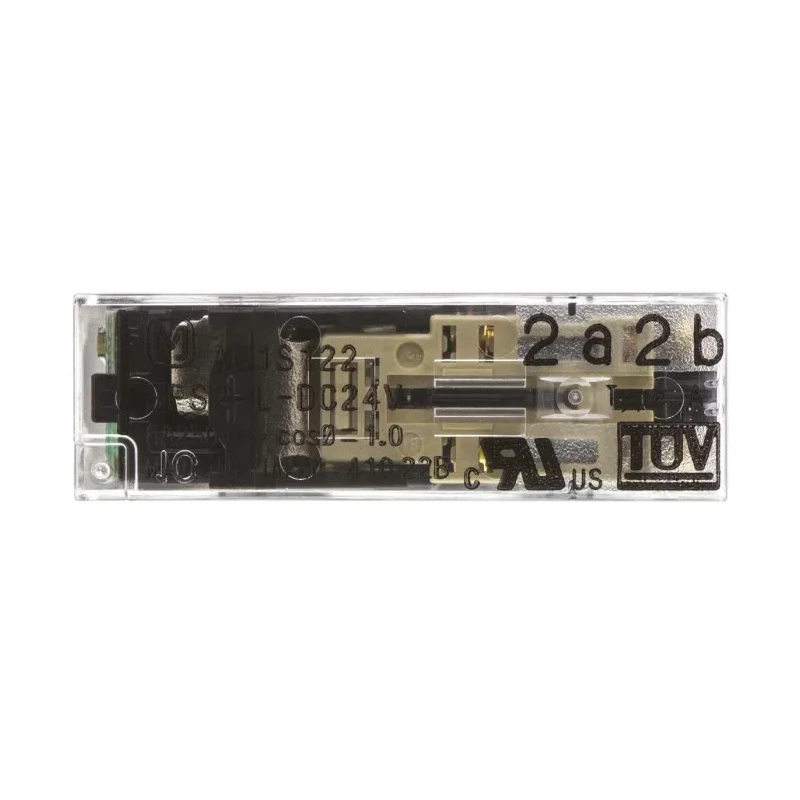

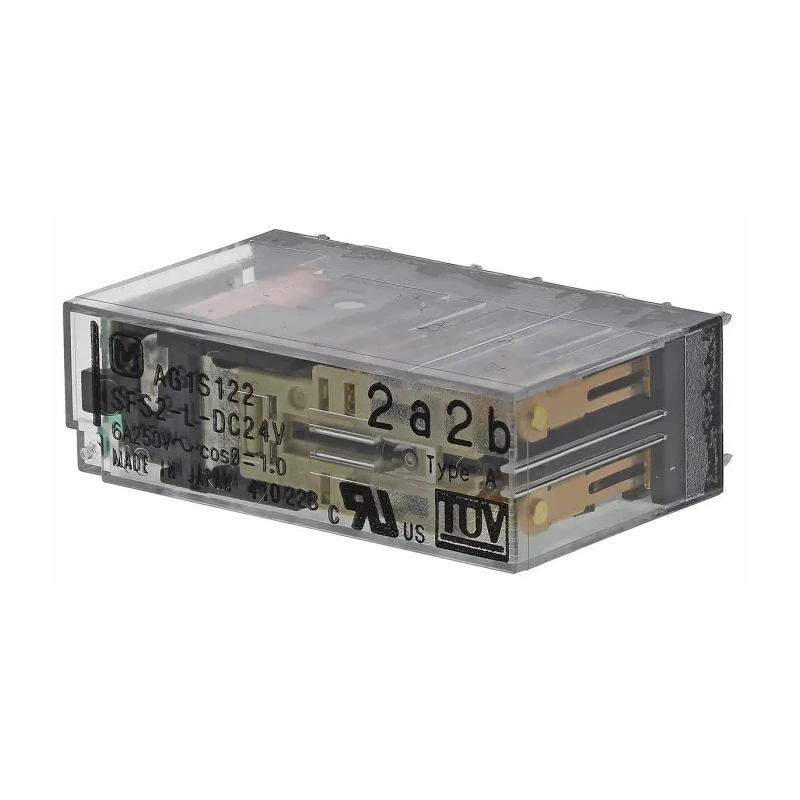

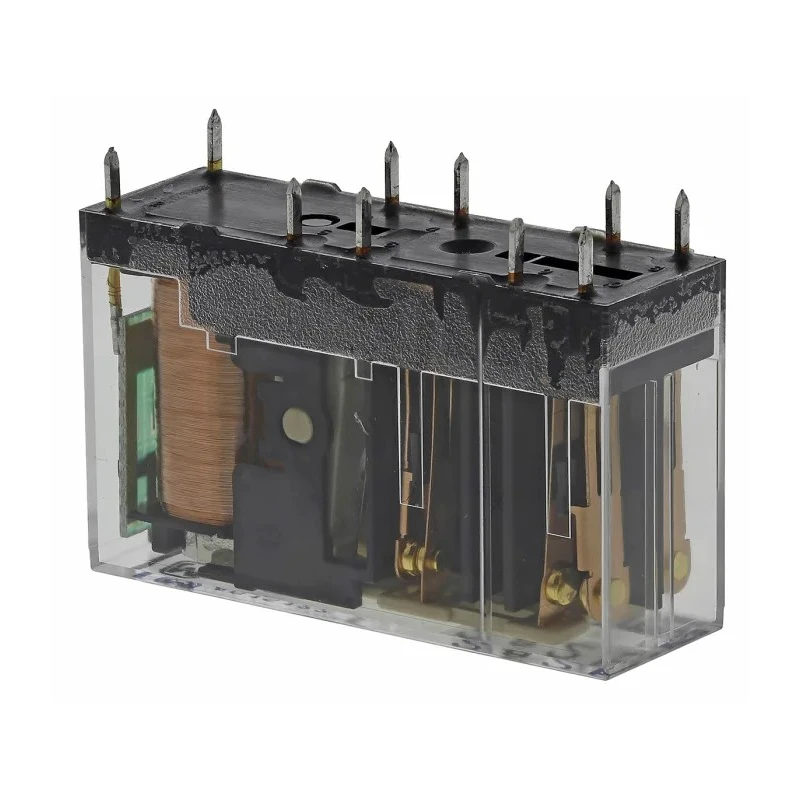

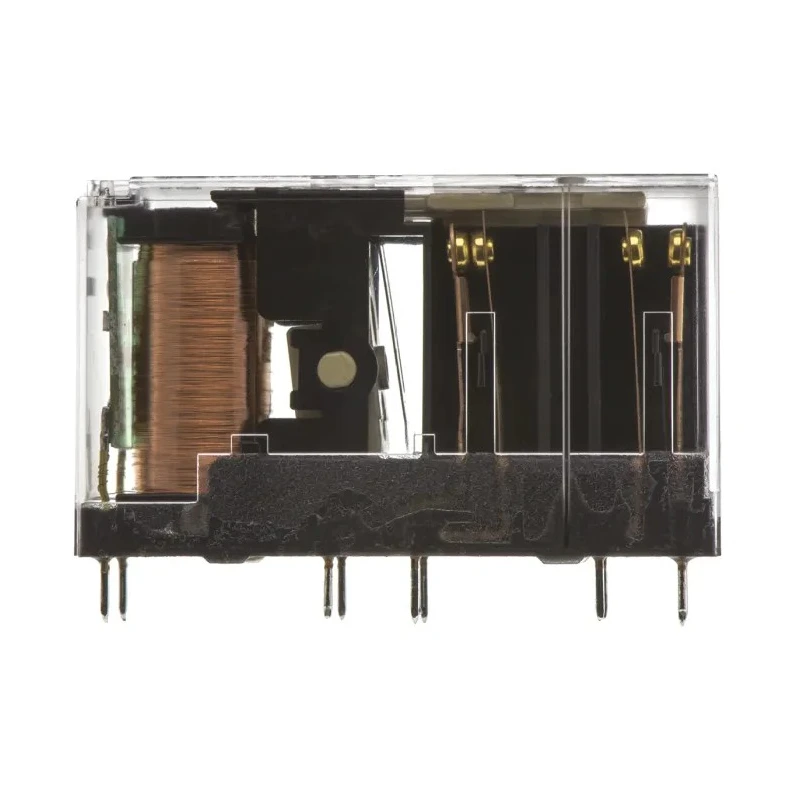

Panasonic PCB Mount Force Guided Relay 24V DC Coil Voltage 4-Pole DPDT SFS2-L-DC24V

Panasonic SFS2-L-DC24V is a high-quality PCB mount force guided relay featuring a 24V DC coil voltage, 4 poles, and a DPDT contact configuration. Designed for safety and reliability, it is widely used in industrial automation including machine tools, robots, and safety PLC circuits that demand stringent safety standards.

This relay belongs to the SF series, known for its slim and compact profile that fits efficiently on PCBs. Its coil resistance of 1.6 kΩ allows low coil power consumption of 360 mW, contributing to energy-saving designs.

The contact material is gold plated to ensure superior electrical performance and durability over prolonged use. It provides a nominal switching capacity of 6A at 250 VAC with a maximum switching power of 180W, making it suitable for a variety of control and switching tasks.

With a fast response time of 8 milliseconds or less, it meets the timing requirements of modern industrial processes. The relay is built to withstand high mechanical shocks with functional resistance to a minimum of 200 m/s², ensuring reliability in harsh environments.

The operating temperature ranges from -40°C to 85°C, which allows this relay to function effectively under diverse climate conditions. It features a through-hole terminal type for solid PCB mounting and electrical connectivity.

Safety is further enhanced by an isolation rating of 4 kVrms between the coil and contacts, reducing the risk of electrical hazards. The relay is manufactured in Japan, assuring consistency in quality and performance.

Typical applications for this relay include industrial automation systems, safety critical equipment, control panels, and motor vehicle production devices. It is especially suitable for use in environments requiring forced guided contact structures and reliable switching behavior.

Compact and slim PCB mount design suitable for machine tools and safety PLCs. Coil resistance of 1.6 kΩ enables low power operation at 360 mW coil power. Gold-plated contacts ensure reliable electrical conduction and longevity.

High shock resistance with a functional minimum of 200 m/s² for industrial environments. Wide operating temperature range from -40°C to 85°C for diverse applications. Isolation between coil and contacts rated at 4 kVrms for enhanced safety.

Fast response time under 8 milliseconds enhances performance in control systems. Through-hole terminal type facilitates secure PCB attachment and soldering. Nominal switching capacity of 6A at 250VAC and maximum switching power of 180W.

Manufactured in Japan ensuring high quality control standards. Explore more Panasonic relays and Force Guided Relay models on EnvMart for your industrial, automation, and electrical needs.
