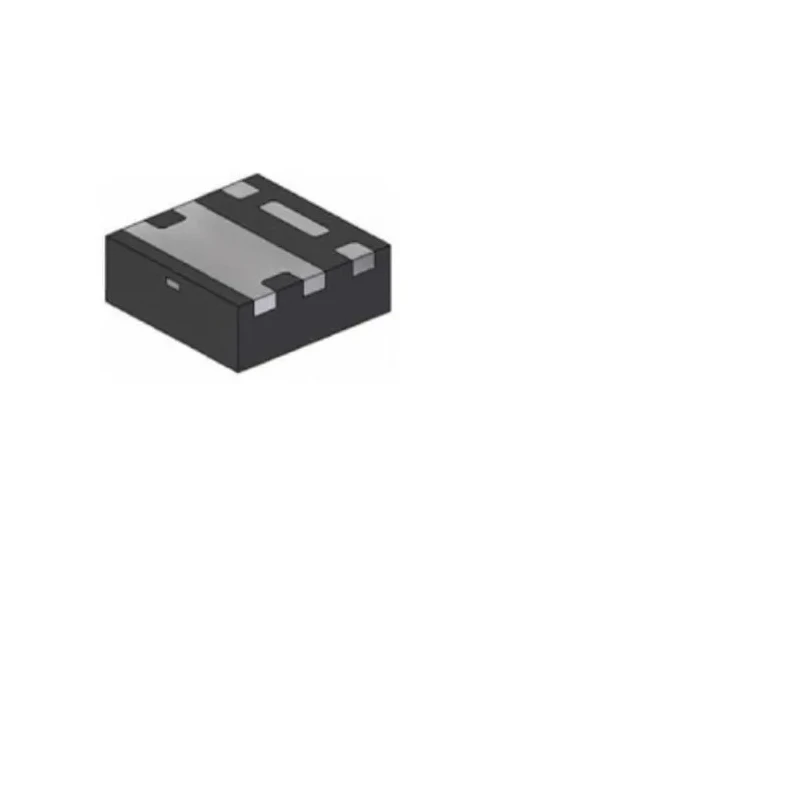

DiodesZetex LED Driver IC, 40V Input Voltage, 500 mA Output Current, 1.7W Max Output Power, 6-Pin UDFN-2020-6 BCR420UFD-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex LED Driver IC, 40V Input Voltage, 500 mA Output Current, 1.7W Max Output Power, 6-Pin UDFN-2020-6 BCR420UFD-7

Name: DiodesZetex LED Driver IC, 40V Input Voltage, 500 mA Output Current, 1.7W Max Output Power, 6-Pin UDFN-2020-6 BCR420UFD-7
Brand: DiodesZetex
SKU: 213639
Price: 0.27 USD
Availability: InStock



Category LED Driver IC Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	630μm
Length	2.08mm
Model	BCR420UFD-7
Width	2.08mm
Mount Type	Through Hole
Series	BCR420
Output Current	500mA
Maximum Operating Temperature	150°C
Package Type	UDFN-2020-6
Minimum Operating Temperature	-55°C
Maximum Output Power	1.7W
Input Voltage	40V
Maximum Output Voltage	40V
Number of Pins	6
Minimum Output Voltage	1.4V

Key Features

Features a 6-pin UDFN-2020-6 surface mount package for compact design.
Maximum output power rating of 1.7W ensures efficient LED driving.
Operates over a wide temperature range from -55°C to 150°C.
Input voltage capability up to 40V with output voltage range between 1.4V and 40V.
Designed for through-hole mounting providing stable mechanical connection.
Compact dimensions of 2.08 mm length, 2.08 mm width, and 630 μm height.
Suitable for automotive and general electronic LED applications excluding automotive standards compliance.

Product Description

DiodesZetex BCR420UFD-7 is a linear LED driver IC designed for controlling low-current, high-brightness LEDs with a stable output current of 500 mA and maximum output power of 1.7W. Operating with an input voltage up to 40V, this 6-pin device is housed in a compact UDFN-2020-6 package that facilitates compact PCB designs.

This LED driver IC supports a broad operating temperature range from -55°C to 150°C, making it suitable for a variety of industrial and electronic applications including commercial LED lighting, display systems, and general electronic components.

Its minimum output voltage of 1.4V to maximum 40V output voltage allows flexible LED load configurations. The device has a length and width of 2.08mm each and a height of 630 μm, ensuring a low profile footprint on printed circuit boards.

The IC uses a through-hole mounting type and carries the BCR420 series designation. There are no formal approvals or automotive standards certifications for this IC, so it is primarily intended for non-automotive and general LED driving tasks.

6-pin UDFN-2020-6 package supports space-efficient PCB layout. Output current of 500 mA for consistent LED brightness control. Input voltage of 40V suitable for medium-voltage LED applications. Operating temperature range ensures reliability across harsh conditions.

Compact dimensions enable integration into miniature LED modules. Through-hole mount type ensures secure attachment in electronic assemblies. Part of BCR420 series of LED drivers.

This product is a valuable component for industrial electronics, laboratory devices, commercial LED lighting solutions, and electronic manufacturing. It is thoughtfully designed to deliver a reliable LED driving solution, facilitating creativity in electronic design and manufacturing with the trusted DiodesZetex brand.
