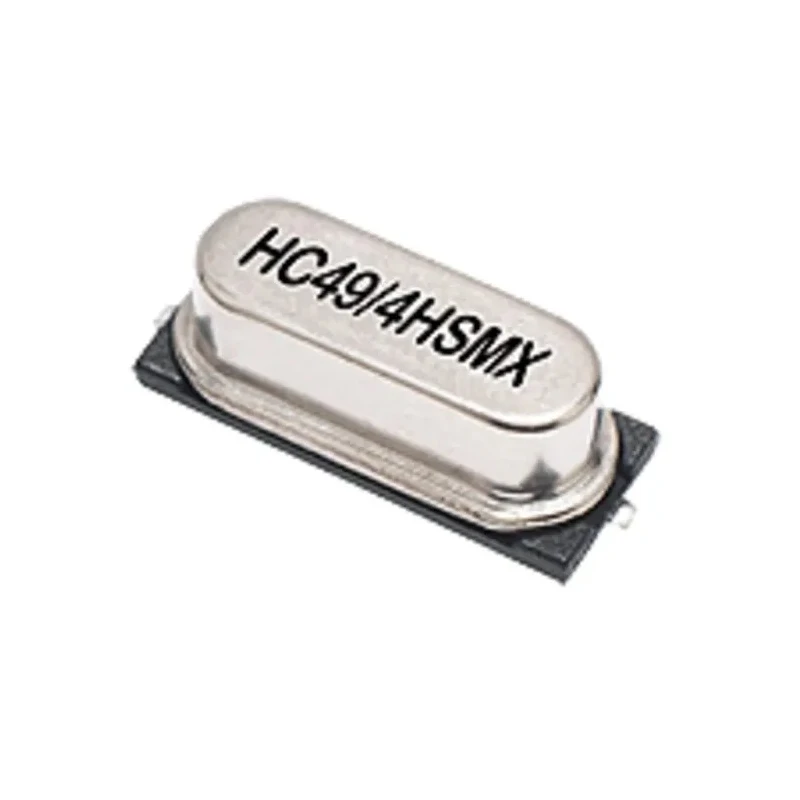

IQD 6 MHz Surface Mount Crystal Unit 2-Pin 30 pF Load Capacitance ±30 ppm Frequency Tolerance LFXTAL016788

Free Delivery in India | Lowest Global Shipping Charges

IQD 6 MHz Surface Mount Crystal Unit 2-Pin 30 pF Load Capacitance ±30 ppm Frequency Tolerance LFXTAL016788



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	4.3mm
Length	11.4mm
Model	LFXTAL016788
Width	4.9mm
Mount Type	Surface
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS, REACH
Pin Count	2
Standard Frequency	6MHz
Load Capacitance	30pF
Series Resistance	60Ω

Key Features

Standard frequency of 6 MHz with ±30 ppm frequency tolerance supports reliable oscillation.
Surface mount type with 2-pin gull wing leads ensures easy PCB assembly.
Load capacitance rating of 30 pF suitable for common oscillator circuits.
Wide operating temperature range from -10°C to 60°C for various environments.
Low series resistance of 60 Ω minimizes power loss in circuits.
Compliance with RoHS and REACH standards ensures environmental safety.
Hermetically sealed and resistance welded for enhanced durability and stability.

Product Description

IQD LFXTAL016788 is a 6 MHz crystal unit designed for surface mount applications with a 2-pin configuration, providing stable frequency and precise oscillation for electronic circuits.

This crystal unit features a frequency tolerance of ±30 ppm and load capacitance of 30 pF, making it suitable for high precision oscillator circuits in industrial, laboratory, and electronic manufacturing applications.

The device has compact physical dimensions of 11.4 mm length, 4.9 mm width, and 4.3 mm height, which supports efficient use of PCB real estate. Designed to operate reliably between -10°C and 60°C, it withstands variations in temperature, ensuring consistent performance across a range of conditions.

Constructed with resistance welded leads and hermetically sealed glass-to-metal seals, the crystal unit is durable and resistant to environmental contaminants. This product complies with RoHS and REACH directives, reflecting its conformity with environmental and safety standards.

Standard frequency of 6 MHz with ±30 ppm frequency tolerance supports reliable oscillation. Surface mount 2-pin gull wing design facilitates automated PCB assembly. Load capacitance of 30 pF suitable for precision timing circuits.

Compact size optimizes space in densely populated printed circuit boards. Operational temperature range of -10°C to 60°C suits industrial conditions. Low series resistance of 60 Ω ensures minimal energy loss. Hermetic sealing enhances long-term stability and reliability.

RoHS and REACH compliant for environmental safety. This crystal unit is ideal for electronics manufacturing, communication equipment, measurement instruments, and other applications requiring stable oscillators. Discover more Crystal Units and electronic components in the Electronics Components category at EnvMart.
