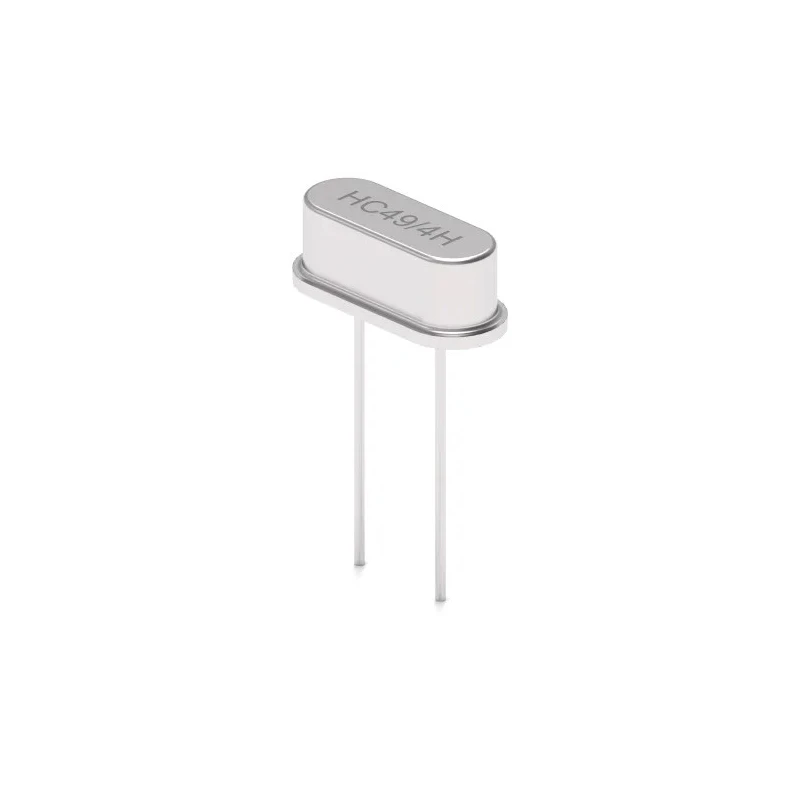

IQD 8 MHz Crystal Unit ±30 ppm HC-49 Through Hole 2-Pin 11.05 mm x 4.7 mm x 4.1 mm LFXTAL003156B

Free Delivery in India | Lowest Global Shipping Charges

IQD 8 MHz Crystal Unit ±30 ppm HC-49 Through Hole 2-Pin 11.05 mm x 4.7 mm x 4.1 mm LFXTAL003156B



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	4.1mm
Length	11.05mm
Model	LFXTAL003156B
Packaging	Bulk
Width	4.7mm
Mount Type	Through Hole
Maximum Operating Temperature	70°C
Package Type	HC-49
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS, REACH
Pin Count	2
Standard Frequency	8MHz
Load Capacitance	30pF
Series Resistance	40Ω

Key Features

Industry standard leaded HC-49 package suitable for through hole mounting.
Load capacitance of 30 pF for stable oscillator performance.
Compact dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height.
Hermetically sealed with resistance welded glass to metal seals for durability.
Series resistance of 40 Ω ensuring reliable signal quality.
RoHS and REACH compliant, free of hazardous substances.
Suitable for industrial and electronic design applications requiring precision timing.

Product Description

IQD LFXTAL003156B 8 MHz Crystal Unit features a standard HC-49 bulk package with through hole mounting and a 2-pin configuration. This component delivers precise frequency control with a ±30 ppm tolerance, suitable for demanding electronic circuit applications. The load capacitance is specified at 30 pF to ensure oscillator circuits achieve stable frequency performance.

Measuring 11.05 mm in length, 4.7 mm in width, and 4.1 mm in height, the unit fits into compact electronic assemblies while maintaining excellent frequency stability of ±50 ppm. The series resistance is rated at 40 Ω, which contributes to efficient signal integrity and oscillator reliability.

The crystal is hermetically sealed using resistance welding in an inert atmosphere with glass to metal seals on leads, enhancing durability and environmental resistance. Operating temperatures range from -20°C to a maximum of 70°C, making it suitable for commercial and industrial electronics applications.

Compliant with RoHS and REACH standards, this crystal unit meets environmental safety regulations, ensuring use in modern electronic systems without hazardous materials. This device finds use in industrial, laboratory, communication, and manufacturing electronics needing reliable timing components.

Industry standard leaded HC-49 package suitable for through hole mounting. Load capacitance of 30 pF for stable oscillator performance. Compact dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height. Frequency stability rated at ±50 ppm with a maximum operating temperature of 70°C.

Hermetically sealed with resistance welded glass to metal seals for durability. Series resistance of 40 Ω ensuring reliable signal quality. RoHS and REACH compliant, free of hazardous substances. Suitable for industrial and electronic design applications requiring precision timing.
