Euroquartz 3.6864 MHz Crystal ±30 ppm Frequency Tolerance Surface Mount 2-Pin 3.6864MHz 49USMX/30/50/-40+85/18pF/ATF

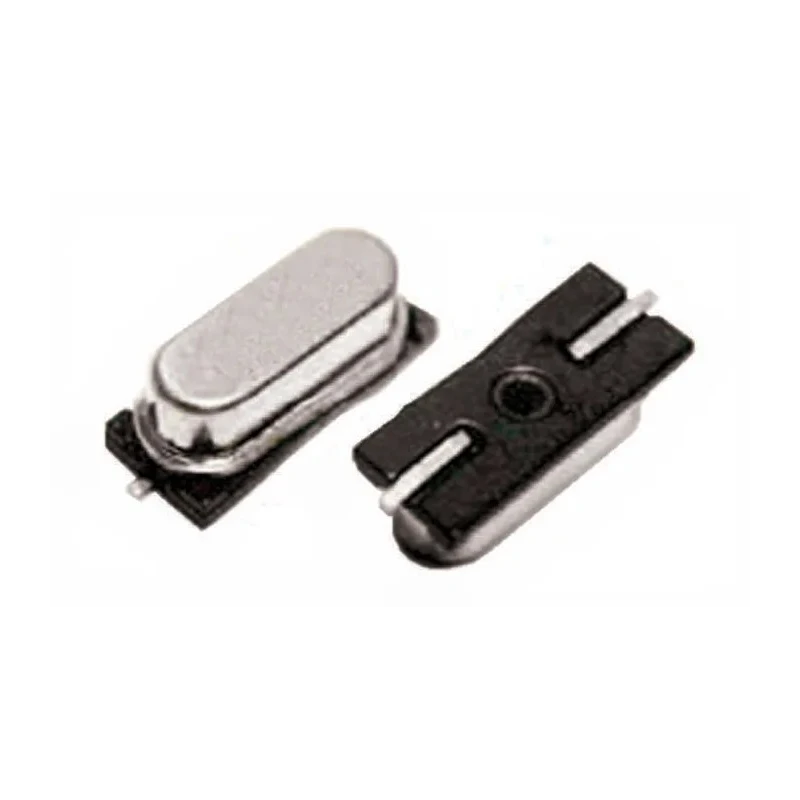

Euroquartz model 3.6864MHz 49USMX/30/50/-40+85/18pF/ATF is a precision crystal unit designed for surface mount technology (SMT) applications requiring a stable 3.6864 MHz frequency.

This crystal features a tight frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, making it suitable for timing and frequency control in electronic circuits.

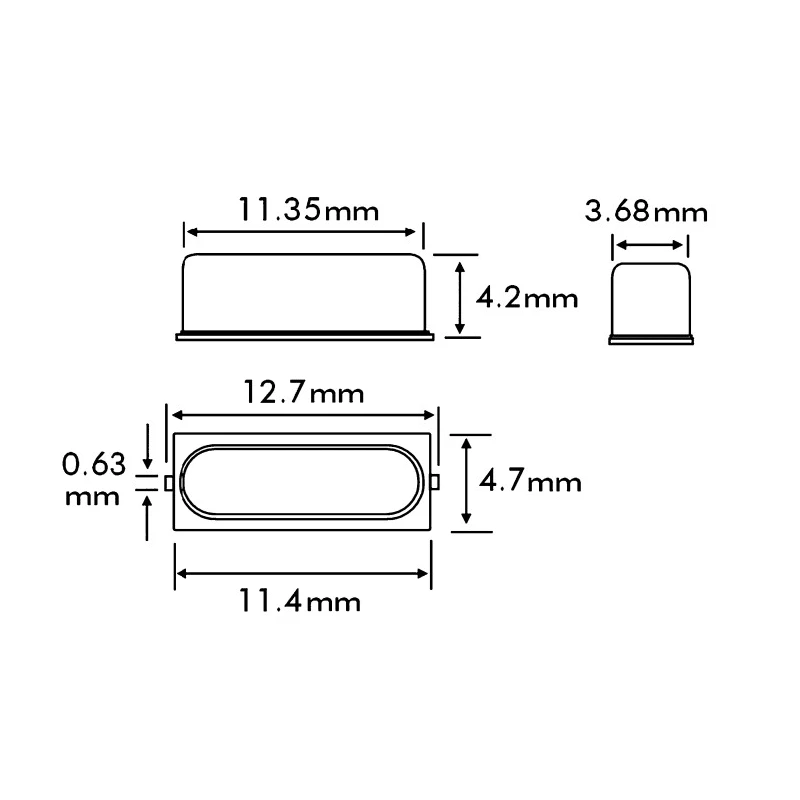

Constructed in a compact metal case with dimensions 12.4 mm length, 4.5 mm width, and 4.2 mm height, it supports a 2-pin surface mount configuration, allowing easy integration into compact PCB layouts.

The load capacitance is rated at 18 pF, and it has a series resistance of 150 Ω, ensuring stable oscillation and minimal signal loss. Designed to operate reliably within a temperature range of -40°C to 85°C, this crystal unit is well-suited for industrial, commercial, and consumer electronics applications.

It is RoHS compliant and supplied in tape & reel packaging, facilitating automated pick-and-place assembly processes. Typical applications include frequency control in microcontrollers, communication devices, clocks, timers, and other precision electronic instruments.

Surface mount configuration for compact PCB design. Precise frequency tolerance and stability for accurate timing functions. Robust metal casing ensures mechanical durability. Wide operating temperature range for harsh environments.
