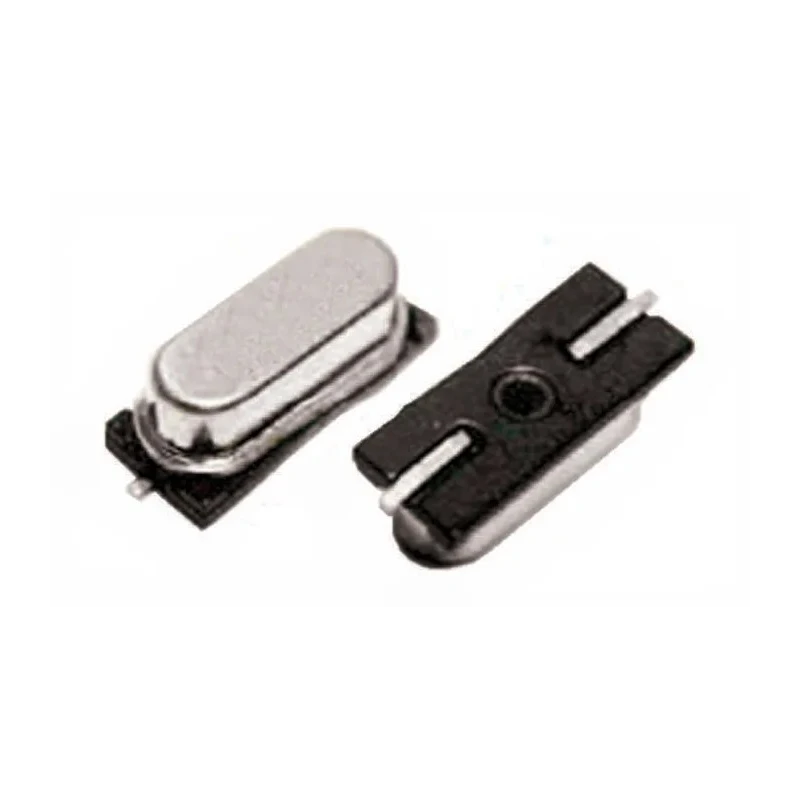

Euroquartz 7.3728 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.2 mm Height 12.4 mm 7.3728MHz 49USMX/30/50/-40+85/18pF/ATF

Euroquartz 7.3728MHz 49USMX/30/50/-40+85/18pF/ATF is a high precision crystal unit designed for surface mount electronic applications, featuring a standard frequency of 7.3728 MHz and frequency tolerance of ±30 ppm. This 2-pin surface mount crystal has compact physical dimensions measuring 12.4 mm in length, 4.5 mm in width, and 4.2 mm in height, suitable for dense PCB layouts.

The crystal offers a load capacitance of 18 pF, ensuring optimal electrical characteristics for stable oscillations in various electronic circuits. It operates reliably over a broad temperature range from -40°C to 85°C and maintains frequency stability within ±50 ppm, making it suitable for industrial, communications, and embedded system applications.

Featuring a series resistance of 80 Ω, this crystal supports standard drive levels and efficient power operation. Packaged in tape and reel, it facilitates high-speed automated pick-and-place processes during PCB assembly. Compliance with RoHS ensures the product meets environmental and hazardous substance regulations.

Applications include industrial controllers, timing circuits, communication devices, and consumer electronics requiring dependable frequency references. The product is manufactured in China, reflecting adherence to international quality standards.

Standard frequency of 7.3728 MHz ensures stable oscillation. Surface mount type with 2 pins for easy PCB integration. Compact dimensions: 12.4 mm length, 4.5 mm width, and 4.2 mm height. Load capacitance of 18 pF optimized for reliable performance.

Temperature operating range from -40°C to 85°C for versatile usage. Frequency stability of ±50 ppm maintaining accuracy. Series resistance of 80 Ω, compatible with standard electronic applications. Packaged in tape and reel format allowing automated assembly processes.

RoHS compliant, environmentally friendly product. Manufactured in China adhering to quality standards. Discover more high-quality electronic components and Crystal Units in our Electronics & Electricals category at EnvMart, where precision and reliability meet industrial demands.
