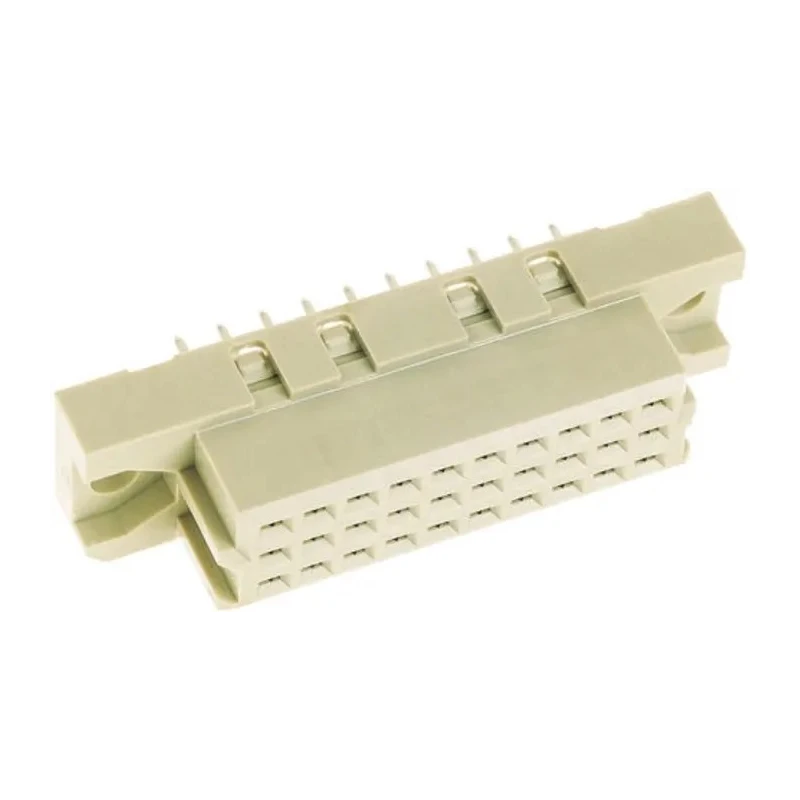

HARTING DIN 41612 Connector 30 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 3 Row Female Straight 09252306824

HARTING 09252306824 DIN 41612 Connector is a high-performance 30 Way female connector with a 2.54 mm pitch, designed for electronic applications requiring reliable backplane and rack interconnections. This type C/2 connector features a solder termination class C2 and is constructed with a durable thermoplastic housing that withstands a wide temperature range from -55°C to 125°C.

Equipped with copper alloy contacts plated with gold over nickel, the connector ensures excellent conductivity and corrosion resistance, minimizing contact resistance to a maximum of 15 milliohms. Its through-hole mounting type guarantees solid PCB attachment and mechanical stability in assembly.

The 3-row female configuration with a straight orientation supports applications in telecommunications, industrial control, and instrumentation where stable and compact connectors are required. The connector complies with IEC 60603-2 performance level 2, ensuring dependable electrical and mechanical performance in Eurocard racking systems.

Common industrial, electronic, and manufacturing uses include integration into 19-inch Eurocard systems and high-density backplane assemblies. The assembly's compact 2.54 mm pitch facilitates high contact counts in constrained spaces while maintaining signal integrity.

Key features such as robust thermoplastic housing, reliable solder termination, and gold-plated contacts make this connector indispensable for industrial automation, telecommunications equipment, and laboratory instrumentation requiring long-term durability and high signal quality.

Features 30 gold-over-nickel plated copper alloy contacts arranged in 3 rows. Pitch between contacts is 2.54 millimeters for standard Eurocard compatibility. Designed with through-hole mounting for secure PCB attachment.

Supports up to 2A current to accommodate moderate electronic loads. Thermoplastic housing material provides durability and electrical insulation. Rated for operation between -55°C and 125°C for challenging environments. Class C2 solder termination ensures strong solder joints and long-term reliability.

Stable contact resistance of maximum 15 milliohms for efficient signal transmission. Connector gender is female with straight orientation for versatile panel mounting. Meets performance level 2 as per IEC 60603-2 for demanding applications.

This HARTING DIN 41612 connector supports robust and precise electrical connections in industrial, laboratory, telecommunications, and manufacturing environments. It is engineered for durability under thermal and mechanical stress, ensuring seamless integration into equipment requiring high reliability and density.
