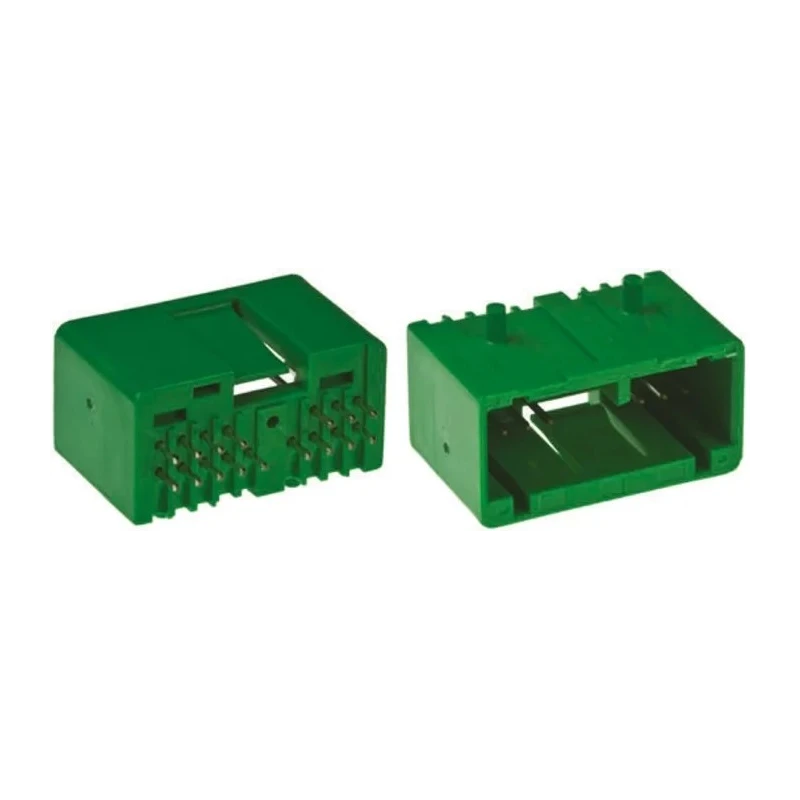

JAE Straight Through Hole PCB Header 14 Contacts 2.5 mm Pitch 2 Row Shrouded IL-AG5-14P-D3T2-A

JAE IL-AG5-14P-D3T2-A straight through hole PCB header is engineered for automotive and industrial electronics. This header provides 14 contact pins arranged in 2 rows with a 2.5 mm pitch, ensuring precise connection and reliable performance in circuit board assemblies.

The connector housing is made of polybutylene terephthalate, offering mechanical strength and electrical insulation. The brass contacts with tin plating provide corrosion resistance, crucial for automotive environments. The shrouded design helps prevent mismating and mechanical damage during assembly.

This component is designed for through-hole mounting with a straight orientation, suitable for various PCB layouts. It supports a continuous current rating of 3A while operating reliably across a temperature range of -40°C to 85°C, making it ideal for automotive instrument panels and other demanding applications.

The double lock mechanism securely holds contacts in place, preventing dislodgement during vibrations or mechanical stress. The termination is solder-type, which ensures strong electrical and mechanical connections when mounted on PCBs.

JAE's IL-AG5 series connectors simplify wiring harness assembly and improve production efficiency in manufacturing environments. These connectors comply with automotive quality expectations and feature a unique housing design to minimize assembly errors.

The header features shrouded housing made of durable polybutylene terephthalate for enhanced protection. It supports a maximum current of 3A suitable for automotive instrument panel applications. Brass contacts are tin-plated to ensure corrosion resistance and long-term performance.

Mount type is through hole with straight orientation for secure PCB mounting. Operates reliably at temperatures ranging from -40°C to 85°C. Includes a reliable mechanical double lock mechanism to prevent contact dislodging.

Solder termination type enables simplified assembly and robustness. The connector system supports wire-to-board configurations with male contact gender.

This product is part of the PCB Headers category and is essential for electronic manufacturing and automotive connector applications. Browse more products by JAE in this category for complementary components and accessories.
