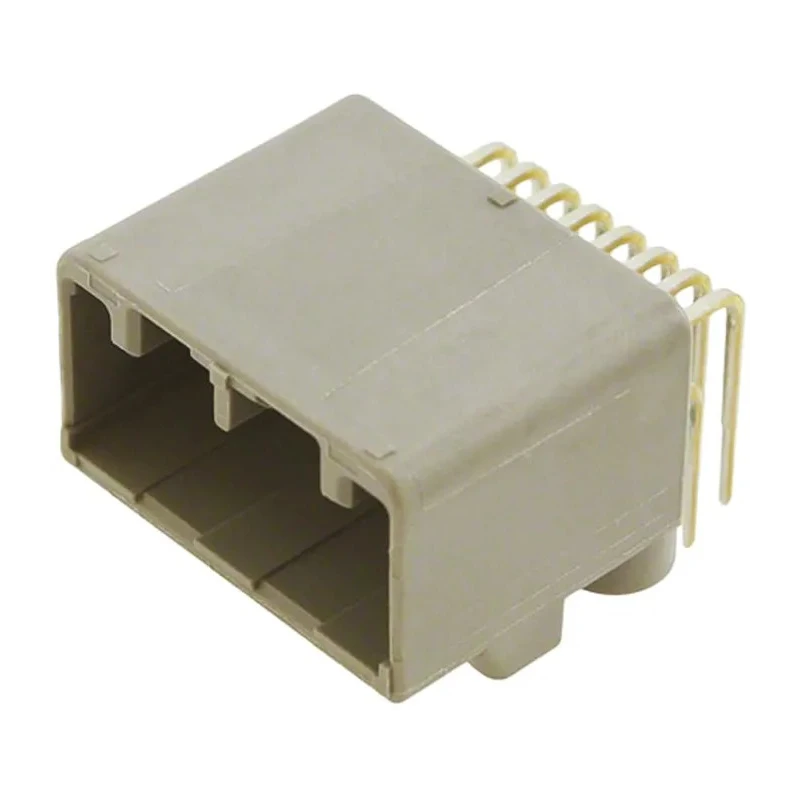

JAE MX34 Series Right Angle Through Hole 12 Contact 2.2 mm Pitch 2 Row Shrouded PCB Header MX34

JAE MX34 Series Right Angle Through Hole PCB Header MX34 is engineered for automotive and industrial electronics requiring robust, reliable wire-to-board connections. This connector series features a 12 contact count with a 2.2 mm pitch arranged in 2 rows, offering compactness and high durability in complex PCB assemblies.

The housing is made from glass filled syndiotactic polystyrene, providing excellent mechanical strength and resilience against heat and physical stress. The brass contacts are plated with tin ensuring excellent conductivity and corrosion resistance suitable for harsh environmental conditions.

Designed for through hole mounting with solder termination, this right angle PCB header supports stable assembly and facilitates tighter and efficient PCB layouts. The shrouded design protects contacts and assists reliable mate/unmate cycles, while the double locking mechanism ensures secure engagement preventing partial insertion issues.

It operates safely within a temperature range from -40°C to 85°C with a current rating of 3 amps, making it suitable for automotive systems and various industrial equipment. The box-type pin header with a bridge lock spring enhances resistance against external mechanical forces and twisting to maintain signal integrity and mechanical connection under vibration.

The MX34 series is optimized to reduce mating and unmating forces, improving assembly ergonomics by limiting force to 80N or less, thus facilitating efficient production processes. It meets stringent automotive connector requirements without compromising durability or performance.

The 2.2 mm pitch and 12 contact configuration enable precise and reliable signal transmission in compact designs. Glass filled polystyrene housing and tin-plated brass contacts provide long-lasting durability and corrosion resistance.

Right angle, shrouded, and through hole features allow seamless integration into automotive and industrial PCBs. Operating temperature from -40°C to 85°C and 3A current rating supports diverse usage environments. Double locking mechanism and box-type pin header ensure secure connection and resistance to external forces.

Minimized mating force enhances assembly efficiency and connector lifespan.

For secure and high quality wire-to-board interconnection in automotive and industrial electronics, JAE MX34 Series PCB Headers offer a trusted solution. Explore the full MX34 connector family on EnvMart for complementary MX34 socket housings and accessories to complete your system.
