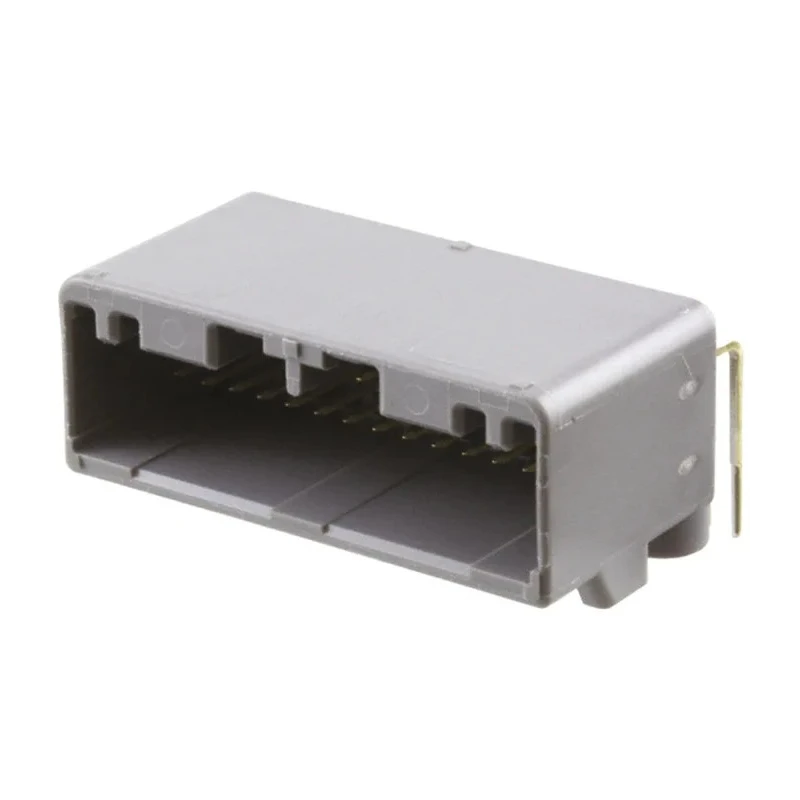

JAE MX34 Series Right Angle Through Hole PCB Header, 28 Contacts, 2.2 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Right Angle |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| For MX34 socket housings see typical stock numbers | 690-9852 |
Key Features
- This PCB header supports a current rating of 3A for reliable electrical connections.
- Constructed with brass contacts plated in tin for corrosion resistance and optimal conductivity.
- The housing is made from glass filled syndiotactic polystyrene, ensuring durability and high temperature tolerance.
- Designed with a double locking mechanism and box type pin header for secure mating in automotive and electronic applications.
- Operating temperature ranges from -40°C to 85°C, suitable for harsh environments.
- The right angle orientation facilitates tight PCB layouts and compact system designs.
- Contact pitch of 2.2 mm and 2 rows optimize board space while maintaining connection density.
- The connector system is wire-to-board with through-hole mount type, allowing durable soldered joints.
Product Description
JAE MX34028NF2 PCB Header from the MX34 series is a right angle through hole connector featuring 28 brass contacts with tin plating. It has a 2.2 mm pitch arranged in 2 rows and is equipped with a shrouded housing made of glass filled syndiotactic polystyrene for enhanced robustness.
The PCB header supports a continuous current of 3A and is designed for secure connections with a preset-type double locking mechanism and box type pin header to resist twisting and external forces, ensuring durability for automotive and industrial applications.
Operating in temperatures ranging from -40°C to 85°C, this right angle connector is ideal for PCB assemblies requiring compact layouts and reliable wire-to-board connections. The termination type is solder, enabling strong and stable joints. The contact gender is male, compatible with MX34 sockets.
Current rating of 3A ensures efficient power handling. High-quality brass contacts with tin plating for corrosion resistance. Glass filled syndiotactic polystyrene housing for mechanical strength. Secure preset-type double locking mechanism prevents incomplete insertion.
Operating temperature range suitable for automotive and industrial environments. Right angle orientation provides space-saving PCB design flexibility. Wire-to-board connector system with through-hole mounting. Shrouded design improves contact protection and safety.
Compatible with MX34 series sockets (typical stock number 690-9852).
This PCB header suits electrical and electronic equipment manufacturing, automotive OEMs, industrial automation systems, and laboratory instrumentation. It enhances PCB assembly quality with improved mating force control and environmental resistance.
Explore more PCB headers and connectors available in the Electronics & Electricals > Connectors > PCB Headers category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 3A, ensuring reliable electrical connections.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The contacts are made of brass with tin plating for corrosion resistance, while the housing is constructed from glass filled syndiotactic polystyrene.
This model features 28 contacts arranged in 2 rows, optimizing board space while maintaining connection density.
It uses a solder termination type, allowing for strong and stable joints during PCB assembly.
The contact pitch is 2.2 mm, facilitating compact PCB layouts.
Yes, it is compatible with MX34 series socket housings, with typical stock number 690-9852.
This model has a right angle orientation, which helps in tight PCB layouts and compact system designs.
Yes, it is designed with a preset-type double locking mechanism to ensure secure connections and prevent incomplete insertion.
It is suitable for electrical and electronic equipment manufacturing, automotive OEMs, industrial automation systems, and laboratory instrumentation.
This PCB header utilizes a wire-to-board connector system with a through-hole mount type, allowing for durable soldered joints.
The country of origin for this product is India.
