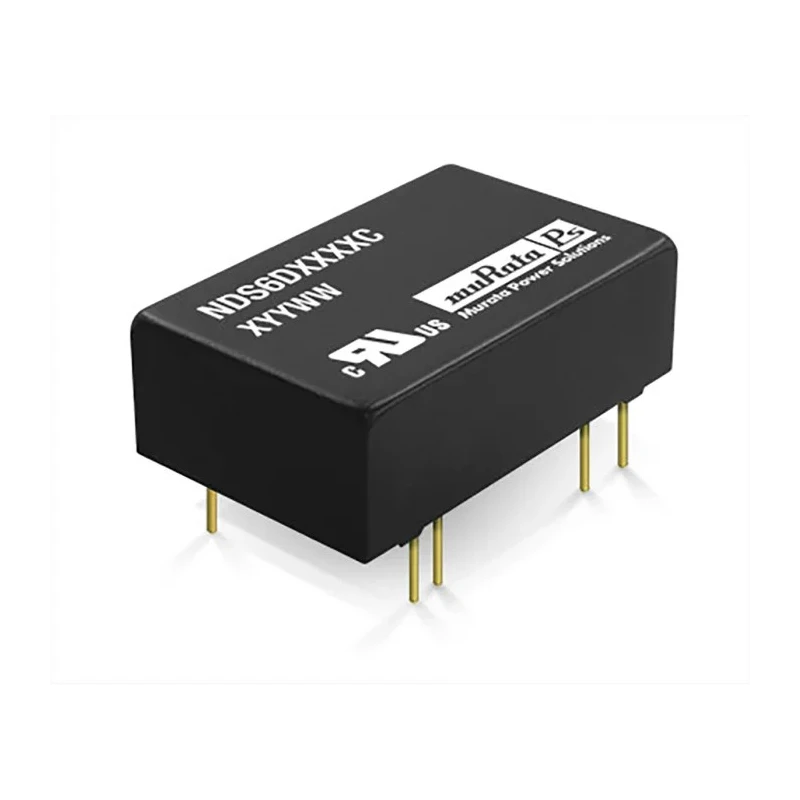

Murata Power Solutions 6W Regulated Isolated DC/DC Converter Through Hole Metal Case NDS6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDS6 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Efficiency | 87% |
| Length | 32mm |
| Model | NDS6 |
| Depth | 10mm |
| Gross Weight | 16.4g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NDS6 |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 40mV Pk-Pk |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 0.2mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Provides dual output voltages of ±15V DC with a 0.2 mA output current on one output.
- Operates with a wide input voltage range from 18V DC to 36V DC for flexible applications.
- Features 1.5kV DC isolation ensuring safety and noise immunity in industrial environments.
- Built with a compact DIP 24 pin metal case package measuring 32mm length, 10mm width, and 10mm depth.
- High efficiency of 87% reduces power losses and heat generation during operation.
- Operating temperature range from -40°C to 85°C supports harsh environmental conditions.
- Designed to meet RoHS standards, ensuring environmental compliance.
- Ideal for industrial, instrumentation, and electronic power supply applications requiring isolated DC/DC conversion.
Product Description
Murata Power Solutions NDS6D2415C is a high-performance 6W regulated isolated DC/DC converter designed for reliable power conversion in industrial and electronic systems. Featuring a through hole metal case with DIP 24-pin packaging, it ensures robust mechanical stability and superior thermal management during operation.
This DC/DC converter supports a wide input voltage range from 18V to 36V DC, delivering stable dual output voltages of ±15V DC with a low output current of 0.2 mA, making it suitable for precise signal conditioning and control circuitry. The isolation voltage rating of 1.5kV DC facilitates noise reduction and safety isolation between input and output sections, essential for sensitive electronic equipment.
Efficient power conversion is achieved with an efficiency rating of 87%, minimizing energy losses and heat dissipation. It also meets RoHS environmental compliance standards, assuring reduced hazardous substances in manufacturing. The compact footprint (32mm length × 10mm width × 10mm depth) and light weight (16.4 g) of the module make it easily mountable on printed circuit boards using through hole technology, enabling convenient integration into industrial control panels and instrumentation devices.
Designed to operate reliably under extreme thermal conditions from -40°C to a maximum of 85°C, this converter is well suited for harsh industrial environments, instrumentation, telecommunications, and other power supply applications requiring isolated DC/DC conversion.
Dual ±15V DC outputs with 0.2 mA output current on one channel. Wide 18 - 36V DC input voltage with 2:1 input ratio. 1.5kV DC input-to-output isolation for safety and noise immunity. Compact metal case DIP 24-pin package for through hole mounting.
High efficiency of 87% supporting energy-saving designs. RoHS compliant to reduce environmental impact. Operating temperature range from -40°C to +85°C supports industrial applications. Lightweight design at 16.4 g suitable for PCB mounting.
This Murata NDS6 series converter is ideal for use in industrial automation, instrumentation, telecommunications, and other electronic systems requiring regulated isolated power supplies. For more DC/DC converters and power solutions, explore the Electronics & Electricals category at EnvMart.
Explore more products in our DC-DC Converter category.
