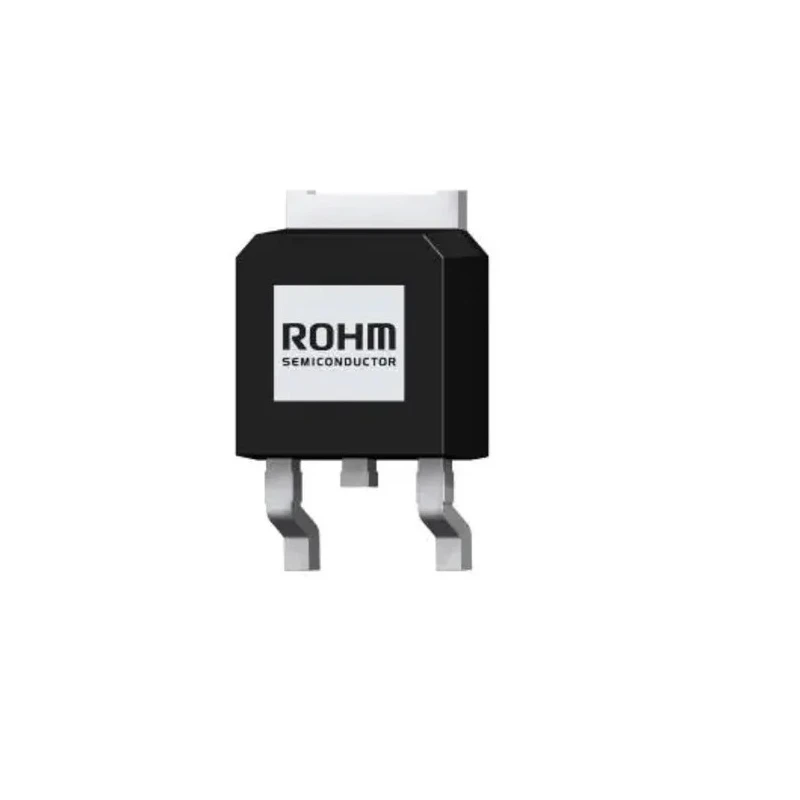

ROHM 100 V 10 A Rectifier & Schottky Diode Schottky 3-Pin DPAK RBQ10BGE10ATL

ROHM RBQ10BGE10ATL is a specialized rectifier and Schottky diode designed for use in switching power supplies and other electronic applications requiring high reliability and efficiency. The device supports a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 100 V, making it suitable for robust power circuit designs.

This diode features a 2x common cathode pair diode configuration within a compact 3-pin DPAK (TO-252) surface-mount package to facilitate easy integration on printed circuit boards. Its low maximum forward voltage drop of 0.77 V ensures minimal conduction losses, enhancing overall energy efficiency.

With a peak reverse current of 80 μA and a peak non-repetitive forward surge current of 100 A, the RBQ10BGE10ATL offers high surge tolerance suitable for demanding power applications. The device operates reliably within a wide temperature range of -55°C to 150°C, enabling use in industrial, automotive, and power supply environments.

The ROHM RBQ series uses silicon epitaxial planar technology and a cathode common dual type power mold structure to achieve low reverse current and superior durability. This component meets RoHS environmental standards, reflecting compliance with sustainability regulations.

Supports maximum continuous forward current of 10 A ensuring efficient power handling. Peak reverse repetitive voltage rating of 100 V provides robust reverse voltage protection. Features a 2x common cathode pair diode configuration for improved circuit design flexibility.

Low maximum forward voltage of 0.77 V minimizes power loss during operation. Designed with a peak reverse current of only 80 μA to reduce leakage. Wide operating temperature range from -55°C to 150°C allows use in harsh environments.

Surface mount TO-252 package facilitates compact PCB layouts and ease of assembly. Complies with RoHS standards for environmental safety.

This diode is ideal for electrical engineering applications in industrial automation, power supply design, automotive electronics, and general semiconductor usage where efficient rectification and low forward voltage drop are critical.
