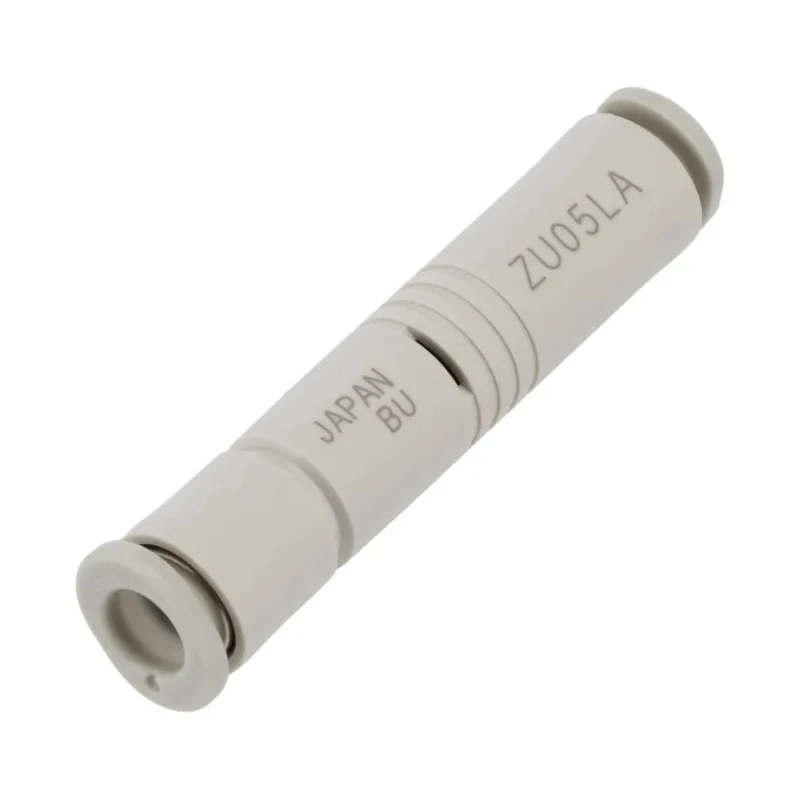

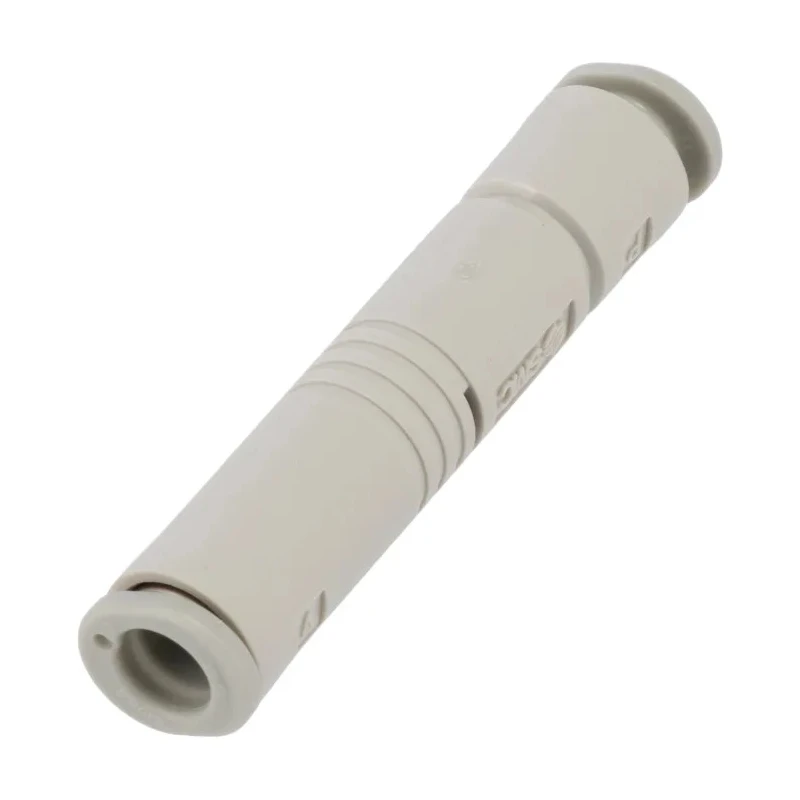

SMC Vacuum Generator for Use With ZU Series Vacuum Ejectors, Pneumatic, 0.1-0.6 MPa Pressure Range, Model ZU05LA

Free Delivery in India | Lowest Global Shipping Charges

SMC Vacuum Generator for Use With ZU Series Vacuum Ejectors, Pneumatic, 0.1-0.6 MPa Pressure Range, Model ZU05LA



Category Vacuum Generator Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Model	ZU05LA
For Use With	ZU Series Vacuum Ejectors
Standards/Approvals	RoHS
SMC Vacuum Ejector, 0.5mm nozzle , -48kPa 12L/min, ZU seriesBrand	SMC

Key Features

Operates from compressed air with a pressure range of 0.1 to 0.6 MPa.
Maximum vacuum capability of -90 kPa provides strong suction performance.
Maximum flow rate of 16 l/min supports rapid pick-and-place cycles.
Air consumption of 14 l/min reduces supply demand during operation.
Compatible with ø4 and ø6 one-touch fittings for simplified installation.
Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubing materials for chemical resistance.
Suitable for end-of-arm tooling in automated assembly lines and component pick-up in electronics manufacturing.
Functions well with pneumatic grippers for small-part handling and vacuum transfer stations.

Product Description

SMC ZU05LA Vacuum Generator is a high-quality pneumatic vacuum suction device intended for integration with ZU Series Vacuum Ejectors. Operating on compressed air within a pressure range of 0.1 to 0.6 MPa, this compact unit produces a maximum vacuum of -90 kPa and a flow rate of 16 liters per minute, ideal for automated pick-and-place machinery in industrial, manufacturing, and electronics assembly environments.

The vacuum generator consumes an efficient 14 liters per minute of air, helping to minimize supply demands during continuous operation. It is designed to be used with standard ø4 and ø6 one-touch fittings, easing installation complexity and providing adaptability to different system configurations.

Compatible with FEP, PFA, nylon, soft nylon, and polyurethane tubing, the unit offers chemical resistance and flexibility in filament selection to accommodate various industrial applications. The device operates effectively across an ambient temperature range of -5 to 50 degrees Celsius, provided it is protected from freezing conditions to maintain optimal performance reliability.

Common industrial uses include end-of-arm tooling for robotics, component handling in electronics manufacturing, pneumatic gripper applications for small parts, and vacuum transferring tasks in mechanical assembly stations. This vacuum generator is RoHS compliant, ensuring adherence to environmental safety standards, and is made in Japan, reflecting strict manufacturing quality controls.

Operates using compressed air with a broad pressure range for versatile applications. Maximum vacuum suction of -90 kPa for reliable component handling. High flow rate supports fast cycle times in assembly line automation.

Low air consumption helps reduce operational costs and supply requirements. Standard one-touch fittings ensure compatibility and easy system integration. Accepts multiple tubing materials for chemical compatibility and durability.

Designed for use in automated industrial, laboratory, and manufacturing settings. RoHS compliant for environmental and safety standards. Manufactured in Japan under rigorous quality standards. Explore more Vacuum Generators and pneumatic components from trusted brands at EnvMart for your industrial automation needs.
