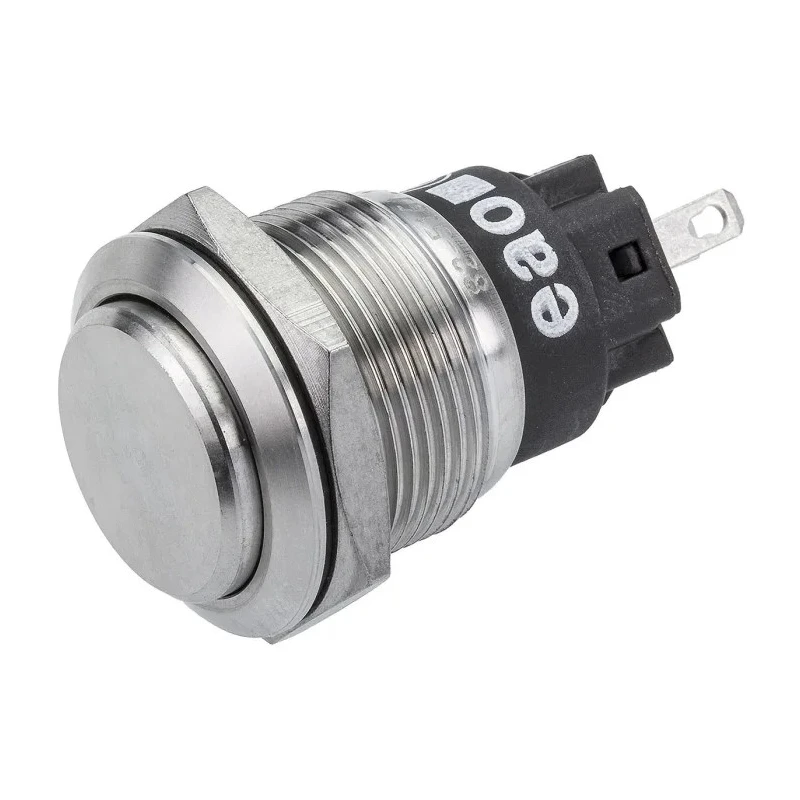

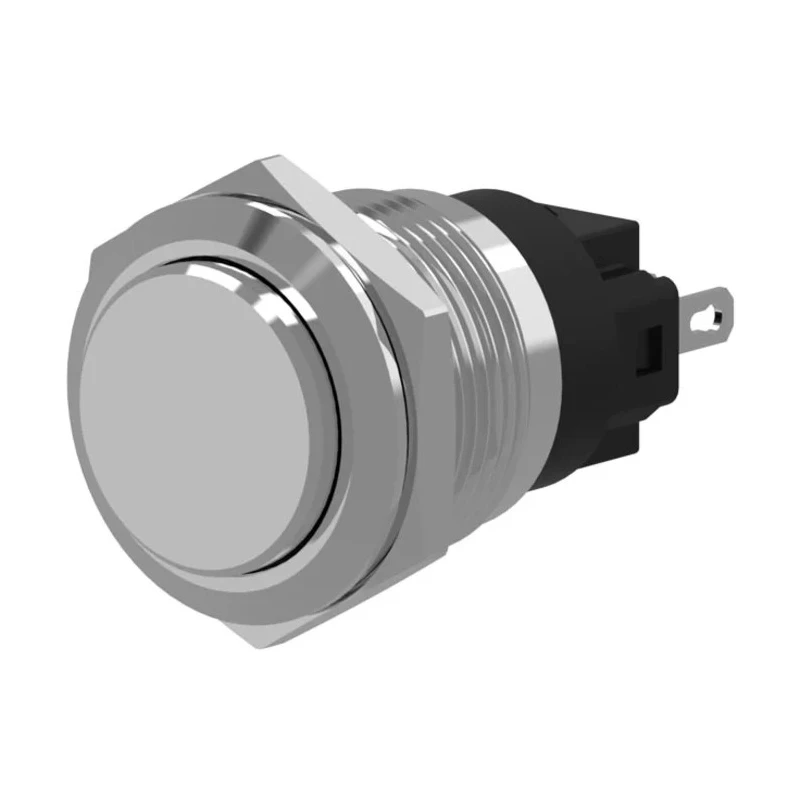

EAO 82 Series Silver Momentary Push Button Switch, Panel Mount, 19 mm Cutout, SPDT, IP65 IP67, Snap Action 82-5161.1000



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	32.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Snap Action
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Stainless steel silver actuator provides corrosion resistance and durability.
Momentary switch operation suitable for short-term manual activation.
Snap Action mechanism ensures fast and precise circuit switching.
SPDT contact configuration enables control of two circuits simultaneously.
Rated for 240V AC and DC voltages with a 3A contact current.
Panel mount type designed for a 19 mm cutout installation.
IP65 and IP67 protection ratings ensure dust-tight and water ingress protection up to 1 meter for 30 minutes.
Operating temperature range from -30°C to 70°C for versatile environmental use.

Product Description

The EAO 82 Series Push Button Switch model 82-5161.1000 is a high-quality momentary push button designed for panel mounting applications. It features a robust silver-colored stainless steel actuator that provides excellent corrosion resistance and durability under harsh industrial conditions.

This momentary push button switch operates with a snap-action element for rapid opening and closing of circuits, ensuring reliable and precise switching performance. It is configured with SPDT contacts, allowing it to manage two electrical circuits simultaneously, making it highly versatile for various control tasks.

The switch requires a 19 mm diameter panel cutout for mounting and is rated to withstand electrical loads of up to 240 volts AC or DC and a contact current of 3 amperes. Its IP65 and IP67 ingress protection ratings certify that the device is dust-tight and capable of withstanding low-pressure water jets and short-term immersion up to one meter, ideal for challenging environmental conditions.

Operating temperature limits range from -30°C to +70°C, suitable for varied industrial and commercial settings. The switch's vandal resistance class IK10 provides robust impact protection, enhancing its suitability for exposed public areas and industrial equipment.

Typical applications include use in public spaces, audiovisual equipment, building management systems, factory automation, medical devices, and machinery control panels. Its lightweight design and compact length of 32.5 mm make it easy to install and integrate.

Stainless steel silver actuator for corrosion resistance and impact durability. Momentary snap-action switch for precise, short-term activation. SPDT contact enabling control of two circuits. IP65 and IP67 rated for dust-tight and water submersion protection.

Vandal resistant with IK10 impact rating. Operational temperature range from -30°C to 70°C. Rated for 240V DC and AC voltages at 3A current. 19 mm panel cutout size for flush mounting.

This push button switch is engineered to meet stringent safety and quality standards including CB, CCC, cUL, and UL certifications, ensuring compliance with international industrial requirements.
