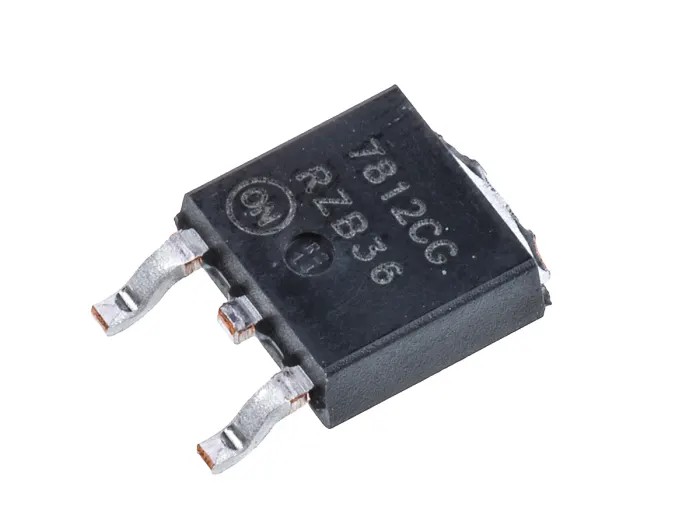

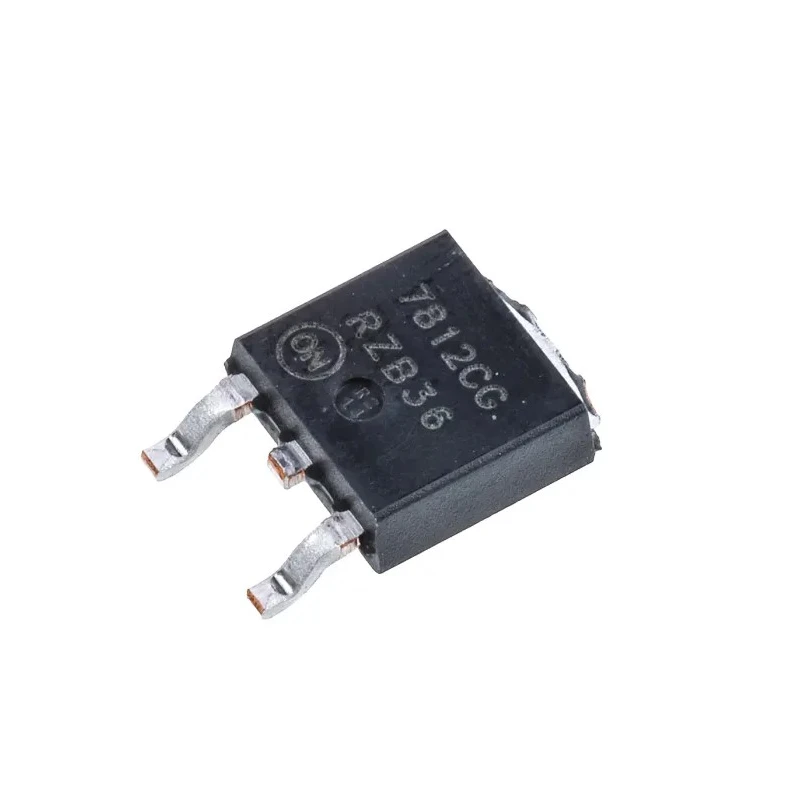

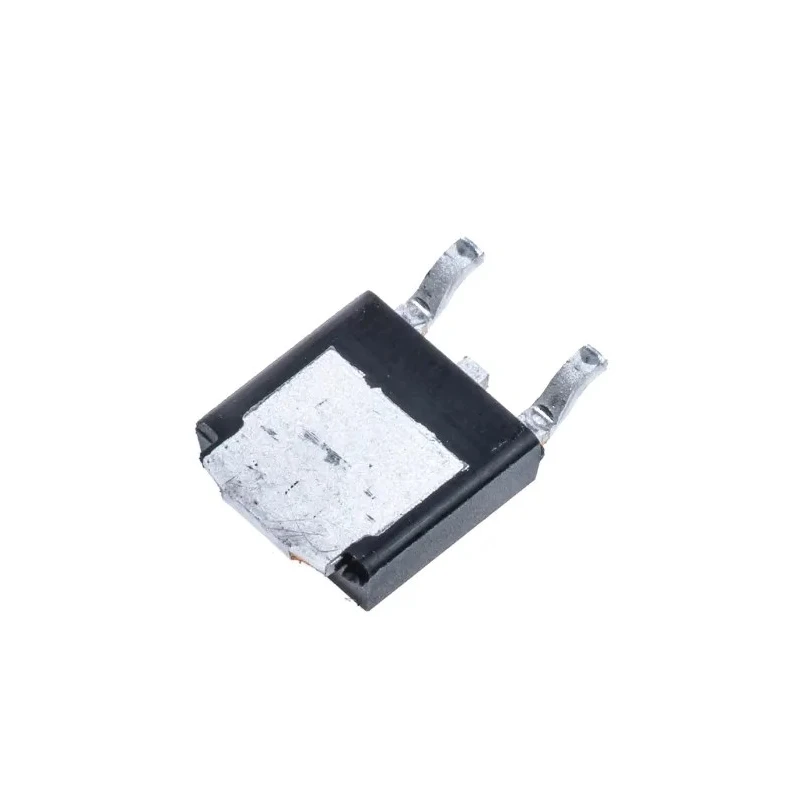

onsemi Linear Voltage Regulator 35V 3-Pin Surface Mount Positive Polarity 3.4mA Quiescent Current MC7812CDTRKG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC7812CDTRKG, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | MC7812CDTRKG |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.4mA |
| Minimum Input Voltage | 12V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Fixed 12V voltage regulation suitable for varied electronic applications.
- Built-in internal thermal overload protection enhances reliability.
- Incorporates current limiting and safe area compensation for robust operation.
- Compact surface mount design with dimensions 6.73mm (L) x 6.22mm (W) x 2.38mm (H).
- Low quiescent current of 3.4mA allows efficient power management.
- Operates at a maximum temperature of 125°C ensuring high thermal tolerance.
- Complies with automotive standard AEC-Q100 for automotive systems use.
- No external components required for basic operation, though adjustable voltage/current with external parts is possible.
Product Description
onsemi MC7812CDTRKG is a monolithic integrated circuit linear voltage regulator designed for regulating fixed 12V output from input voltages up to 35V. It uses positive polarity regulation and features a 3-pin surface mount package, making it ideal for local on-card regulation in electronic devices.
This device includes internal thermal overload protection and current limiting with safe area compensation to prevent damage during fault conditions. Its low quiescent current of 3.4mA contributes to efficient power usage and minimal thermal dissipation.
The compact footprint of 6.73mm length, 6.22mm width, and 2.38mm height supports easy integration into space-constrained layouts. The maximum operating temperature is 125°C, allowing reliable performance in demanding environments.
Designed to meet automotive AEC-Q100 standards, this regulator is suitable for automotive electronic systems and a wide range of industrial, laboratory, and commercial electronics applications. The device requires no external components under normal operation, though voltage and current can be adjusted with external circuitry.
Fixed 12V output voltage. Internal thermal overload protection to enhance safety. Low quiescent current of 3.4mA for efficient operation. Compact surface mount footprint for PCB integration. Automotive standard compliant (AEC-Q100) for automotive use.
Maximum input voltage: 35V. Maximum operating temperature: 125°C. 3-pin package configuration.
This Voltage Regulator is suitable for various applications including power management in industrial equipment, automotive electronics, electronic measurement devices, and embedded system power supplies. Its reliable performance and robust design facilitate ease of use in diverse environments. For additional related components and power management ICs, browse the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the MC7812CDTRKG is 35V.
This model has a low quiescent current of 3.4mA, contributing to efficient power management.
The dimensions of this voltage regulator are 6.73mm in length, 6.22mm in width, and 2.38mm in height.
The maximum operating temperature for the MC7812CDTRKG is 125°C.
No external components are required for basic operation of the MC7812CDTRKG, though adjustments can be made with external circuitry.
This voltage regulator provides a fixed output voltage of 12V.
The MC7812CDTRKG comes in a compact 3-pin surface mount package.
This model complies with the AEC-Q100 automotive standard, making it suitable for automotive electronic systems.
The MC7812CDTRKG features positive polarity regulation.
This voltage regulator belongs to the MC78xx series.
The MC7812CDTRKG is manufactured in India.
This voltage regulator is suitable for power management in industrial equipment, automotive electronics, and electronic measurement devices.
