| Country of Origin | Taiwan |
|---|---|
| Voltage | 25V dc |
| Brand | Wurth Elektronik |
| Operating Temperature | - 55 °C to +125 °C |
| Height | 0.8mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | WCAP-CSGP |
| Termination | Cu/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow, for 0603 and 0805 wave soldering is also allowed |
| Ceramic characteristics | Class I - NP0 , Class II - X7R , X5R |

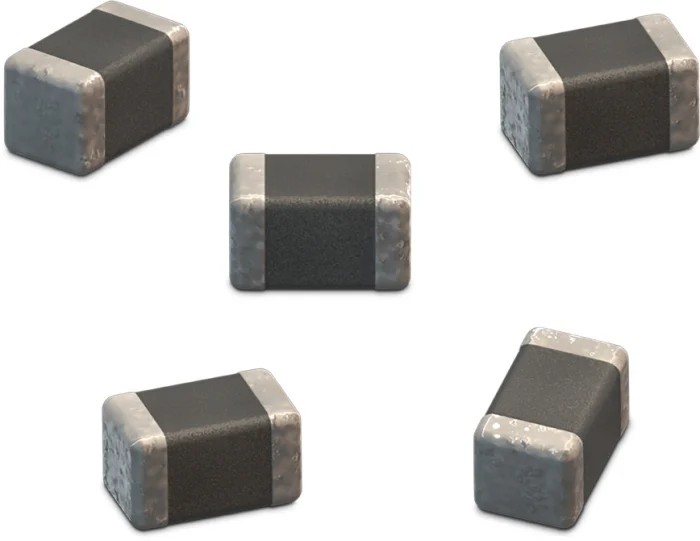

The Wurth Elektronik 885012208058 Multilayer Ceramic Capacitor provides a reliable solution for electronic designs requiring a compact 100nF capacitance with a 25V DC voltage rating. Engineered for surface mount applications, it features an industry-standard 1206 package, making it compatible with automated assembly lines.
This capacitor utilizes X7R dielectric, known for stability and consistent performance across a broad temperature range from -55°C to +125°C. The ±10% tolerance offers dependable operation where precision is needed, and its termination system (Cu/Ni/Sn) is designed to ensure strong solder joints using reflow or, for smaller sizes, wave soldering processes.
With minimal aging properties and high capacitance stability, the product is well-suited for demanding industrial, commercial, and consumer electronics. Its robust ceramic construction supports Class II suppression and is RoHS compliant, promoting environmental responsibility. The product series WCAP-CSGP guarantees consistent quality and performance in high-volume production.
Commonly deployed in filters, decoupling, and timing applications, this capacitor is an excellent fit for PCBs that require tight control over electrical parameters. The 1206 package dimensions (3.2mm length, 1.6mm width, 0.8mm height) enable space-saving layouts, and the surface mount design allows for efficient handling in manufacturing operations.
This capacitor is manufactured in Taiwan, Province Of China, and is suitable for electronics manufacturing, industrial control devices, consumer appliances, automotive electronics (not rated for AECQ), and laboratory instrumentation.
100nF capacitance specified for high-density circuit integration. X7R dielectric ensures temperature and voltage stability. 25V DC voltage rating fulfills general-purpose and industrial requirements. ±10% tolerance supports applications requiring standard precision.
Surface mount and 1206 package enables automated assembly. Operating range from -55°C to +125°C expands usability across environments. Reflow soldering compatibility for modern manufacturing. RoHS compliant for environmentally responsible production.
