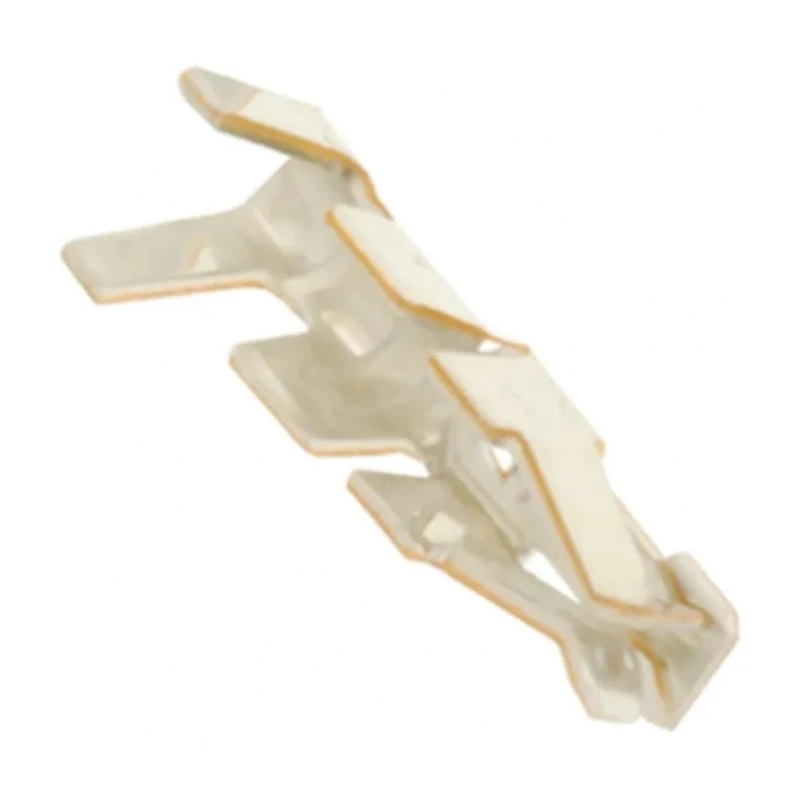

JST PA, PBV, PHD Series Female Crimp Terminal, 3A Current, 26 AWG to 22 AWG Wire Size, Phosphor Bronze Tin SPHD-001T-P0.5

Free Delivery in India | Lowest Global Shipping Charges

JST PA, PBV, PHD Series Female Crimp Terminal, 3A Current, 26 AWG to 22 AWG Wire Size, Phosphor Bronze Tin SPHD-001T-P0.5



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	SPHD-001T-P0.5
Gender	Female
Contact Material	Phosphor Bronze
Series	PA, PBV, PHD
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	PBV and PHD Connector Housings, PA
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze for durability and excellent conductivity.
Features tin plating for corrosion resistance and reliable contact.
Designed for use with PBV and PHD connector housings in PA, PBV, PHD series.
Supports wire sizes from 0.1 mm² (26 AWG) up to 0.3 mm² (22 AWG).
Maximum contact resistance of 20 milliohms ensures efficient signal transmission.
Operates reliably between -25°C and 85°C temperature range.
Termination type is crimp, suitable for fast and secure assembly.
Complies with robust industrial specifications for electronic components.

Product Description

JST SPHD-001T-P0.5 female crimp terminal is a component in the PA, PBV, and PHD series designed to provide high reliability for electronic wire-to-board connections in industrial and commercial applications. Rated for a current of 3A, it supports wire sizes ranging from 26 AWG to 22 AWG (0.1 mm² to 0.3 mm²), making it ideal for precision wiring tasks.

The terminals are made from phosphor bronze material, which is known for excellent electrical conductivity and mechanical strength, enhanced by a tin plating that protects against corrosion and ensures durable contact performance. This product is designed to be crimped onto wires and used with matching PBV and PHD connector housings, making it versatile for many electronics assembly requirements.

Its maximum contact resistance of 20 milliohms guarantees efficient electrical connection with minimal loss, and the operating temperature range from -25°C to 85°C allows use in varied environments including industrial controls, instrumentation, and electronic equipment.

The termination type is crimp, a widely used method that ensures quick, strong, and reliable wire connections suitable for automated or manual assembly.

Manufactured in China, this component meets essential industrial standards and is part of JST's extensive range of electronic connectors widely used in manufacturing, laboratory setups, HVAC controls, and more.

Constructed from phosphor bronze material to ensure durability. Tin plating enhances corrosion resistance and connectivity. Suitable for wire sizes from 26 AWG to 22 AWG (0.1 mm² to 0.3 mm²). Rated for a maximum current of 3A handling capability.

Low maximum contact resistance of 20 milliohms for efficient transmission. Operates effectively between -25°C and 85°C temperature range. Compatible with PBV and PHD connector housings for versatile use. Robust crimp termination for secure connections.

This JST female Crimp Terminal is a reliable choice for electronics manufacturers, engineers, and technicians looking to ensure high quality connections in their products. Suitable for applications ranging from industrial automation to commercial electronics, it delivers consistent performance and ease of use.

Browse the EnvMart catalogue for further JST components and accessories optimized for your electrical and electronic project needs.
